1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308

1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308
1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308 1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308
Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-N0158WA
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The products will be ready within 3 to 7 days, New products will need 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Contact Now
Model:: MR-N0158WA Mount:: M5*0.35
Focal Length:: 1.58mm Image Format:: 1/6''
Aperture:: F2.0 Field Angle(1/3%22):: 88°*80.6°*51°
Usage: Pinhole Lens For Endoscope Camera

1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308:



Specification
Model MR-N0158WA Mount M5*0.35
Focal Length 1.58mm Distortion <1.5%
Sensor Size 1/6'' IR Filter IR 650nm
Aperture F2.0 Lens holder size 8*8*2.6mm
Material Plastic Max image circle 93.4
Angle of View 88°*80.6°*51° Resolution 5MP
Application Pinhole plane lens, doorbell lens







Features:
1. 1.58mm pinhole mini optical Lens, 5MP resolution
2. 1/6" Format lens with M5*0.35 mount for endoscope camera
3. Dimension 3*5mm, sensor AR0261 OV9770, GC0308,etc, work with other 1/8, 1/9 cmos available.
4. All plastic lenses 6P,  FB=3.42mm, 0.4g weight

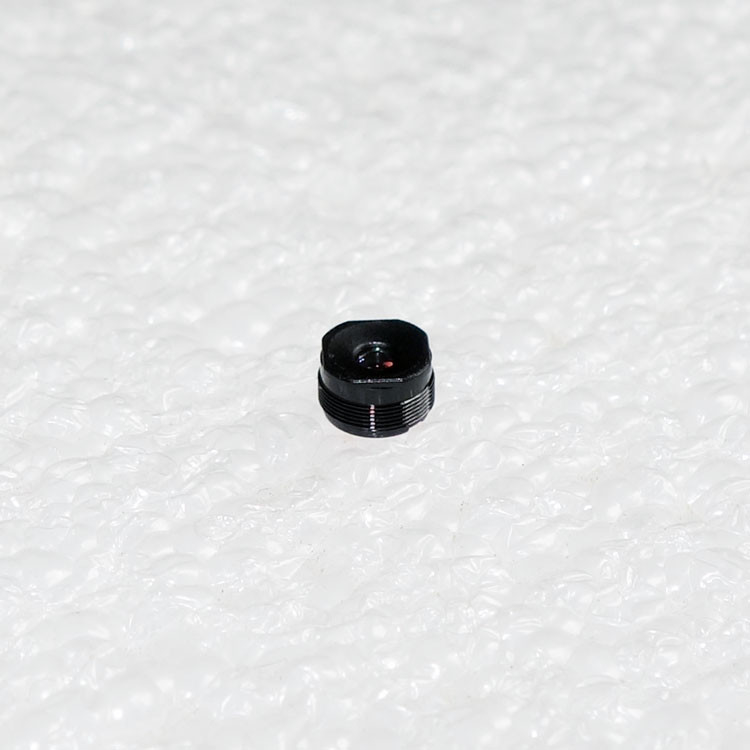

1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308 0

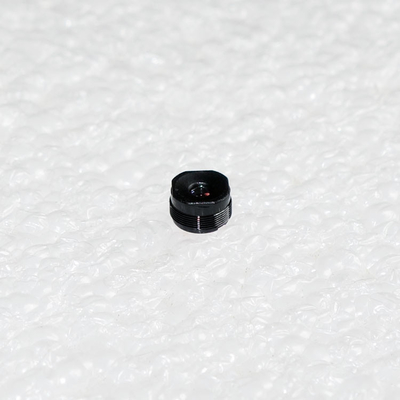

1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308 1



Supply Ability:10000 pcs per month



Packaging & Delivery



100 pcs lens / bag

5000 pcs lens / carton

Or as your request

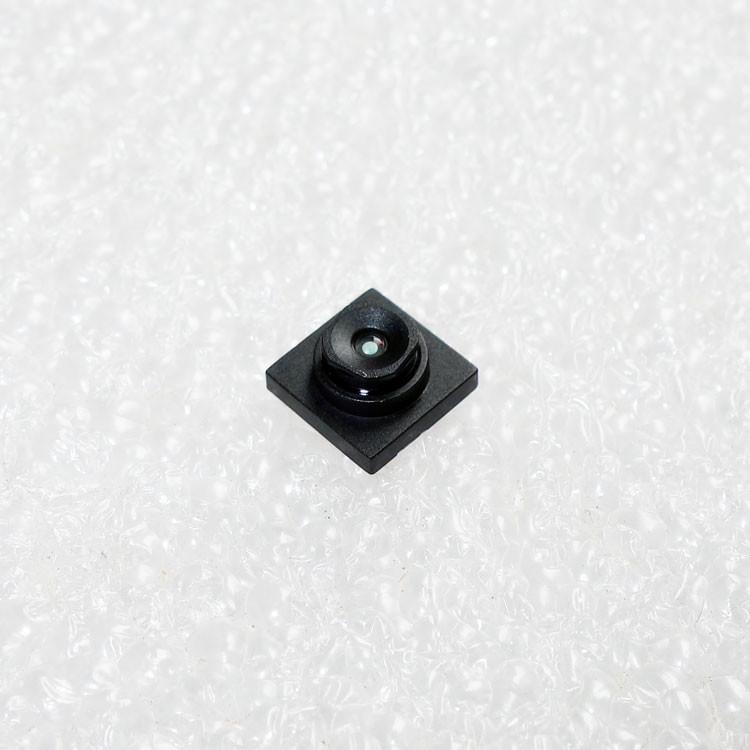

1/6 inch OV7670 OV9770 sensor 1.58mm M5 5mp pinhole lens 88 degree for endoscope camera module GC0308 2
