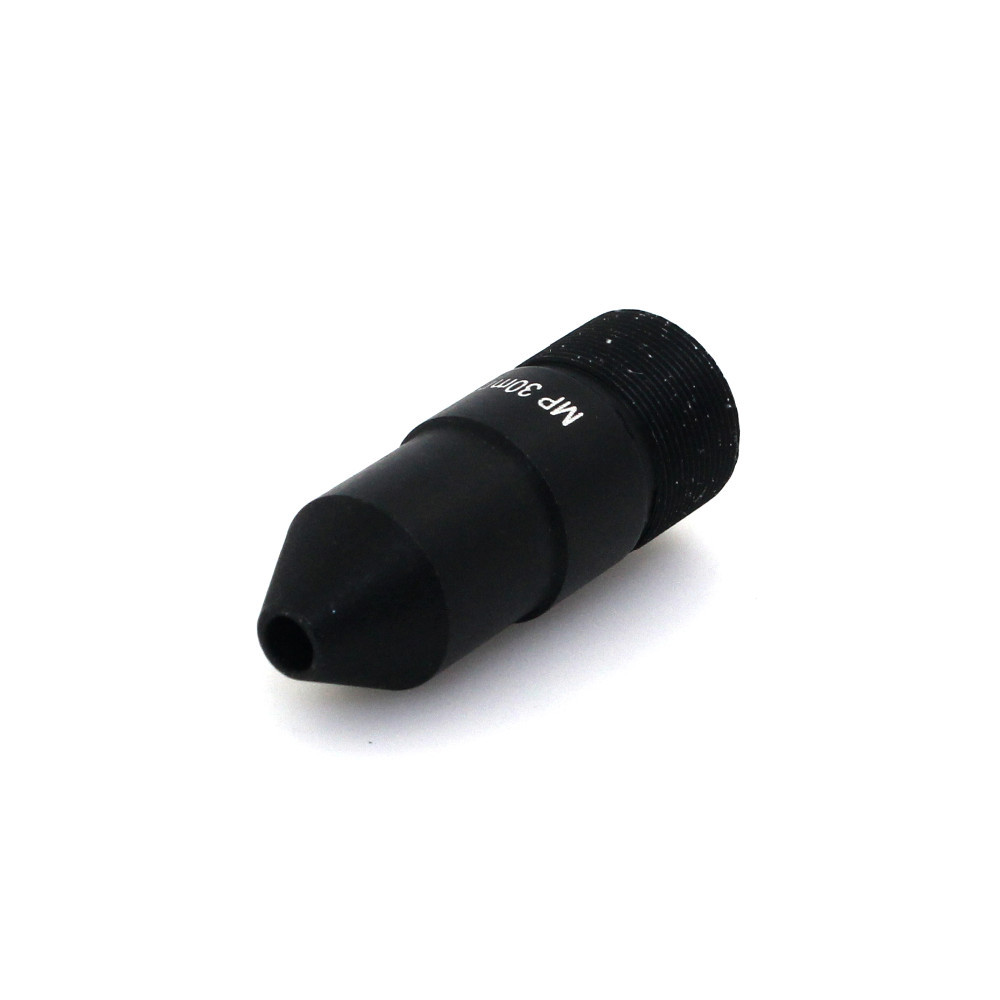

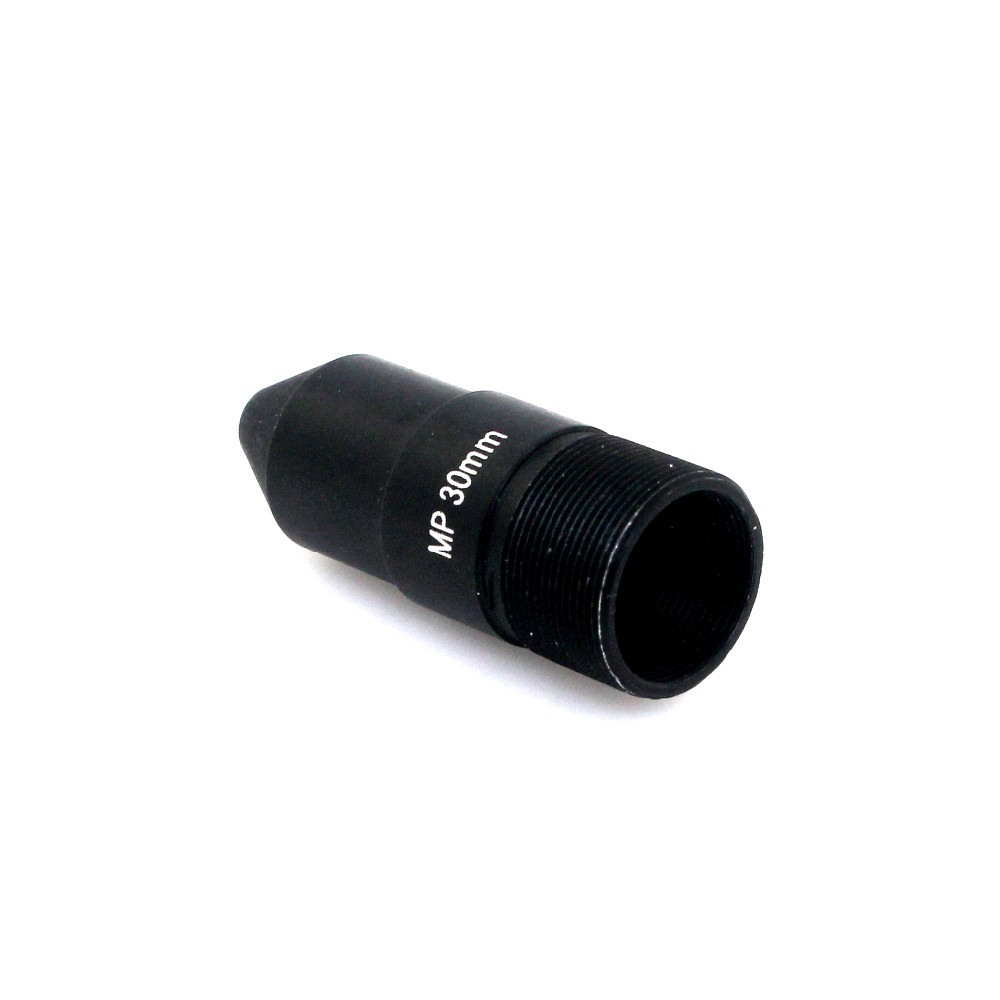

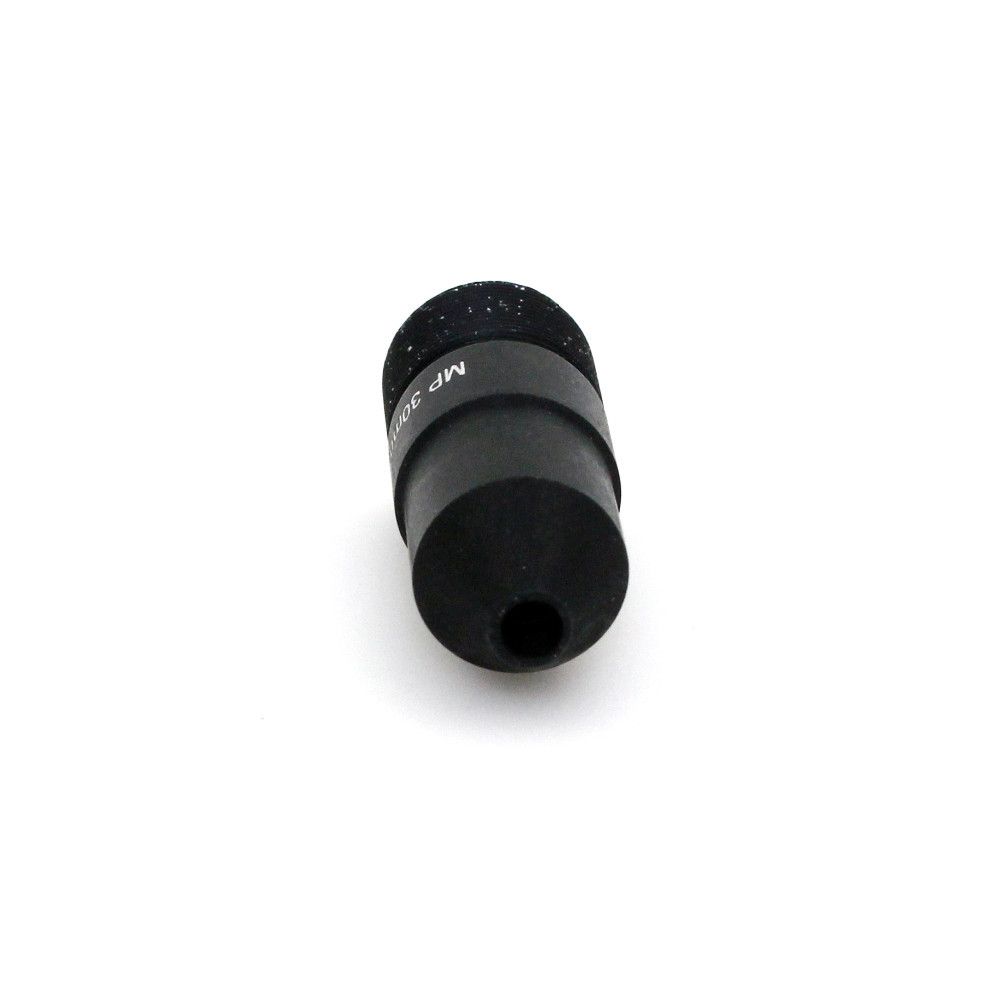

30mm HD Megapixel Pinhole Len M12 Interface F1.6 For CCTV CCD IP Security Camera

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C3016WZK-MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The products will be ready within 3 to 7 days, New products will need 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C3016WZK-MP Mount:: M12*0.5
Focal Length:: 30mm Image Format:: 1/3''
Aperture:: F1.6 Field Angle(1/3%22):: 9.6°
Lens Size: Φ12mm(Dia) * 31.45mm(H)
High Light:

megapixel pinhole lens

,

pinhole camera lens

High Quality 30mm HD lens Board lens mount M12 interface F1.6 for CCTV CCD IP Security camera:





Specification
Model MR-C3016WZK-MP Mount M12*0.5
Focal Length 30mm BFL 5.6mm
Sensor Size 1/3'' IR Filter Optional
Aperture F1.6 Dimension Φ12*31.45mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 9.6° Resolution 1MP
Application Pinhole plane lens, doorbell lens







Features:
1.
High Quality 30mm HD lens Board lens mount M12 interface F1.6 for CCTV CCD IP Security camera
2. 1/3" Format High quality for video cameras, long distance surveillance lens
3. F1.6 aperture M12 mount 30mm 9.6 Degree of FOV security camera lens
4.
MP High resolution Mini Lens, HD hidden camera lens, IR Filter is optional as request



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens

it could meet the demands as per MP resolution cameras. IR Cut and Lens Holder are available as per request.



 10mm pinhole mini Lens Megapixel HD camera Board M12 lens for CCTV Security Camera

 10mm pinhole mini Lens Megapixel HD camera Board M12 lens for CCTV Security Camera



Supply Ability:10000 pcs per month



Packaging & Delivery



100 pcs lens / bag

5000 pcs lens / carton

Or as your request



High Quality 30mm HD lens Board lens mount M12 interface F1.6 for CCTV CCD IP Security camera
