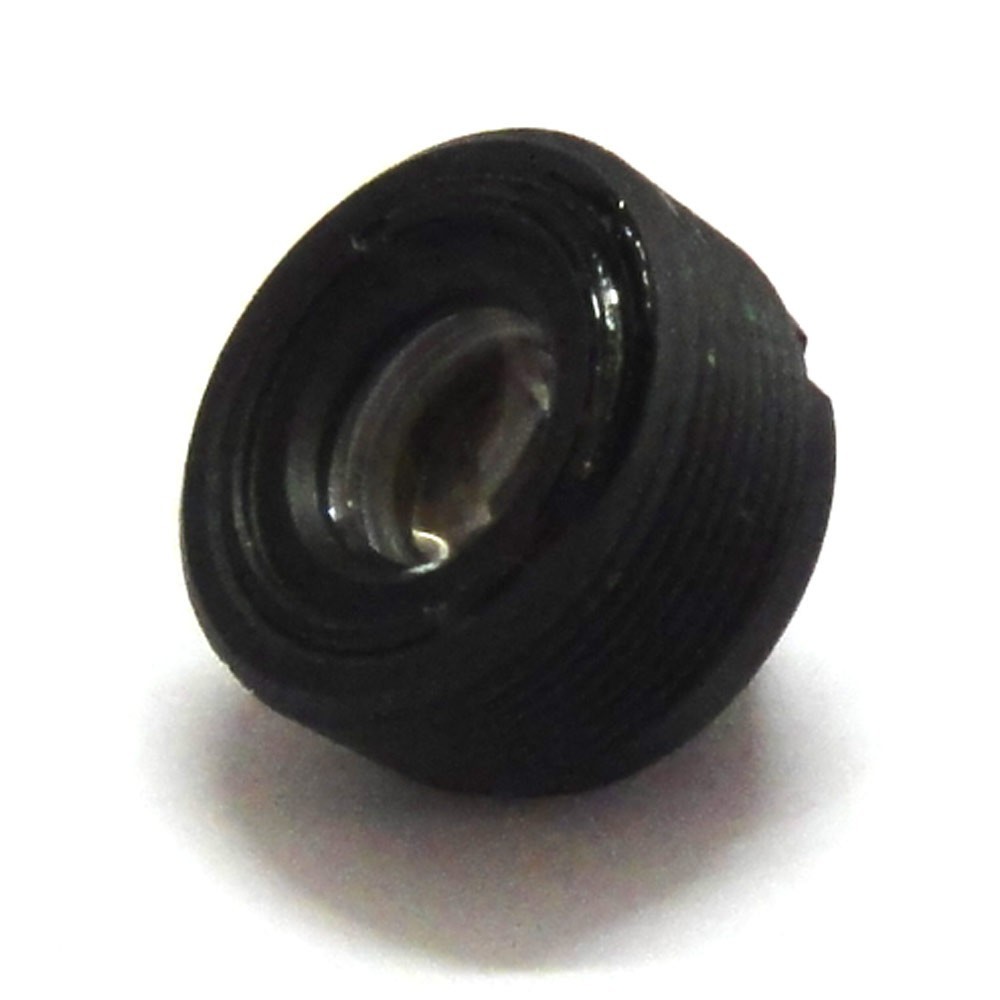

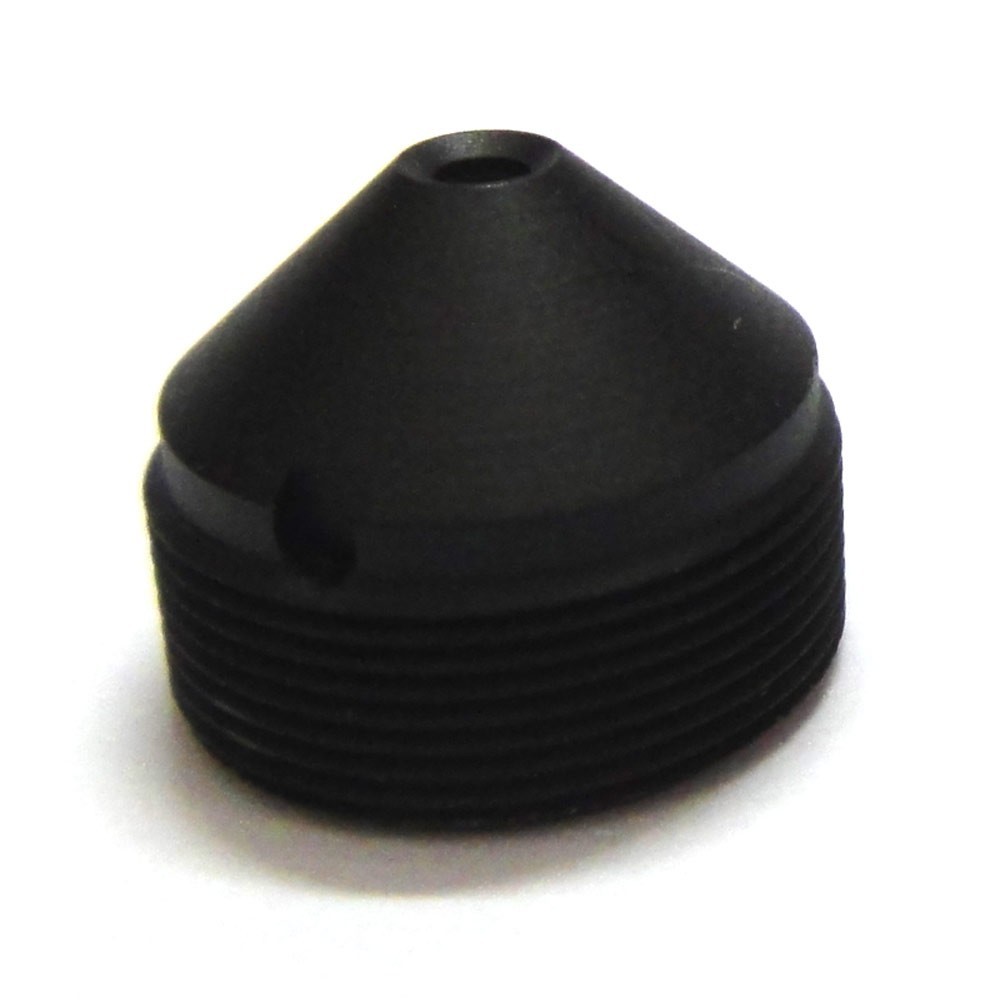

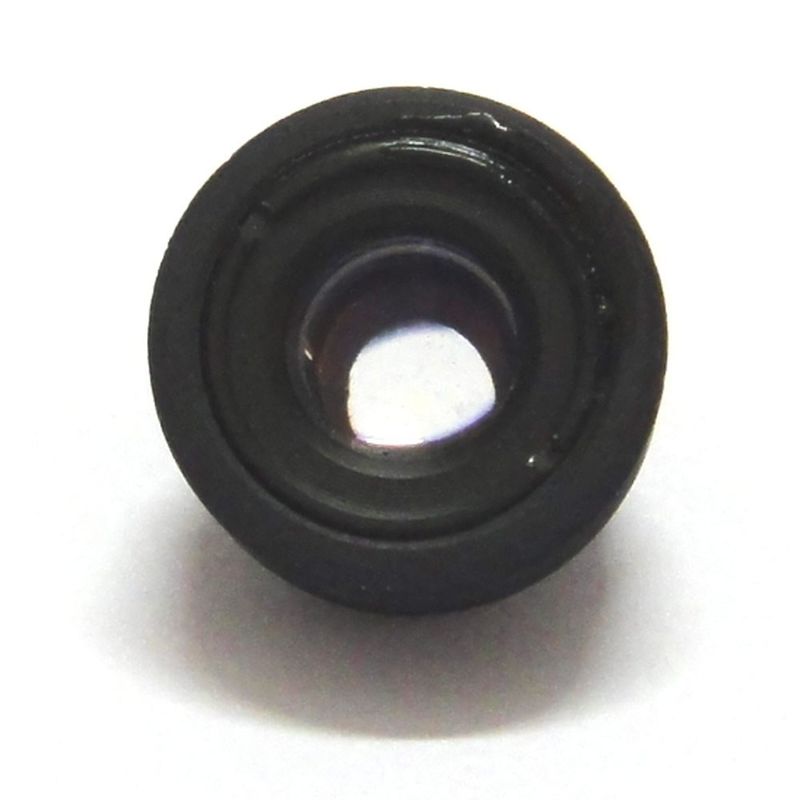

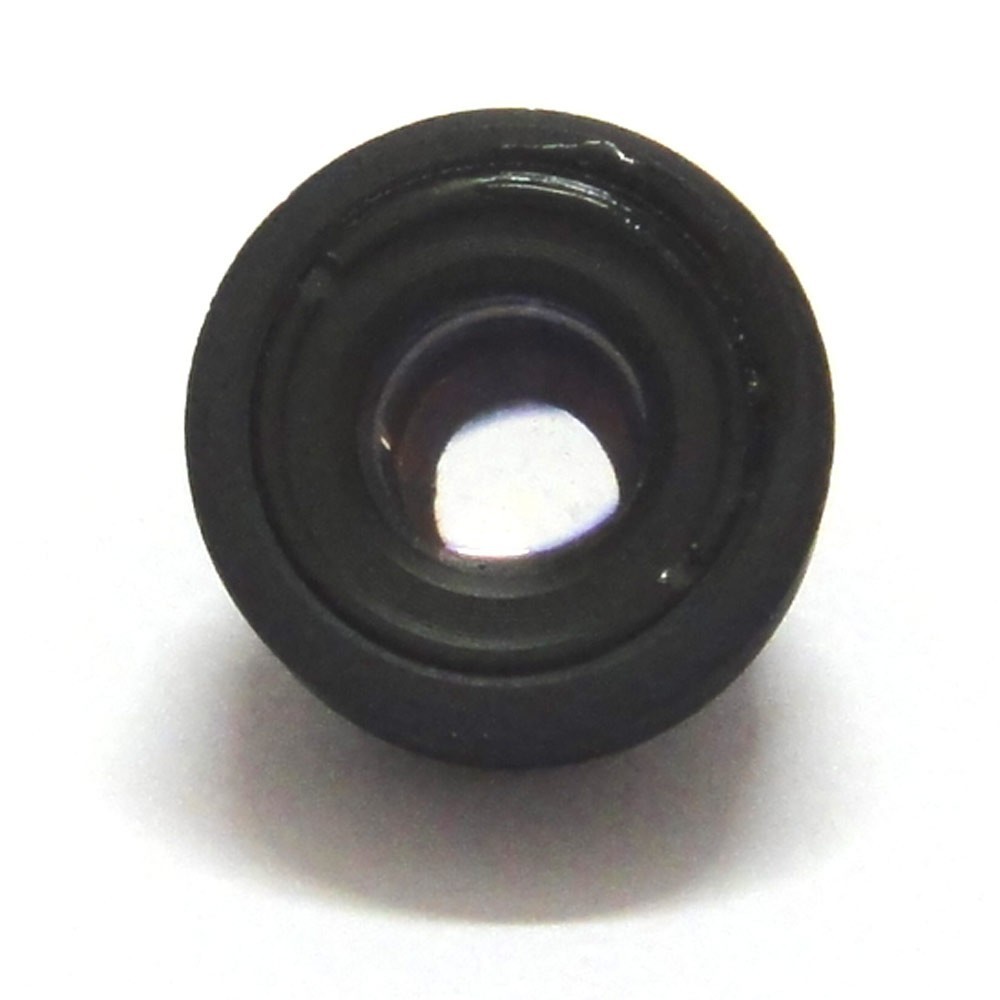

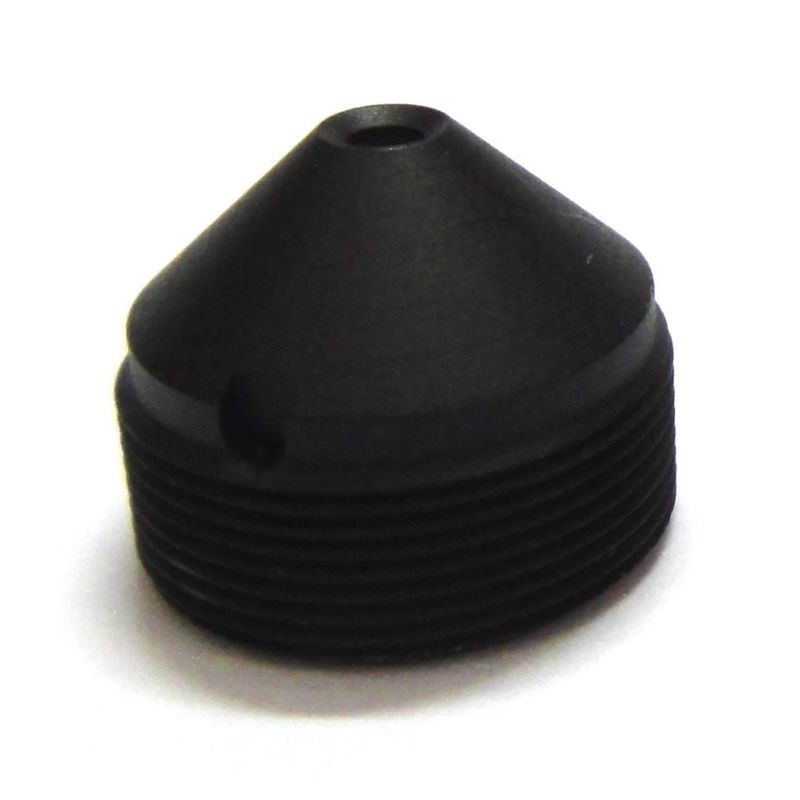

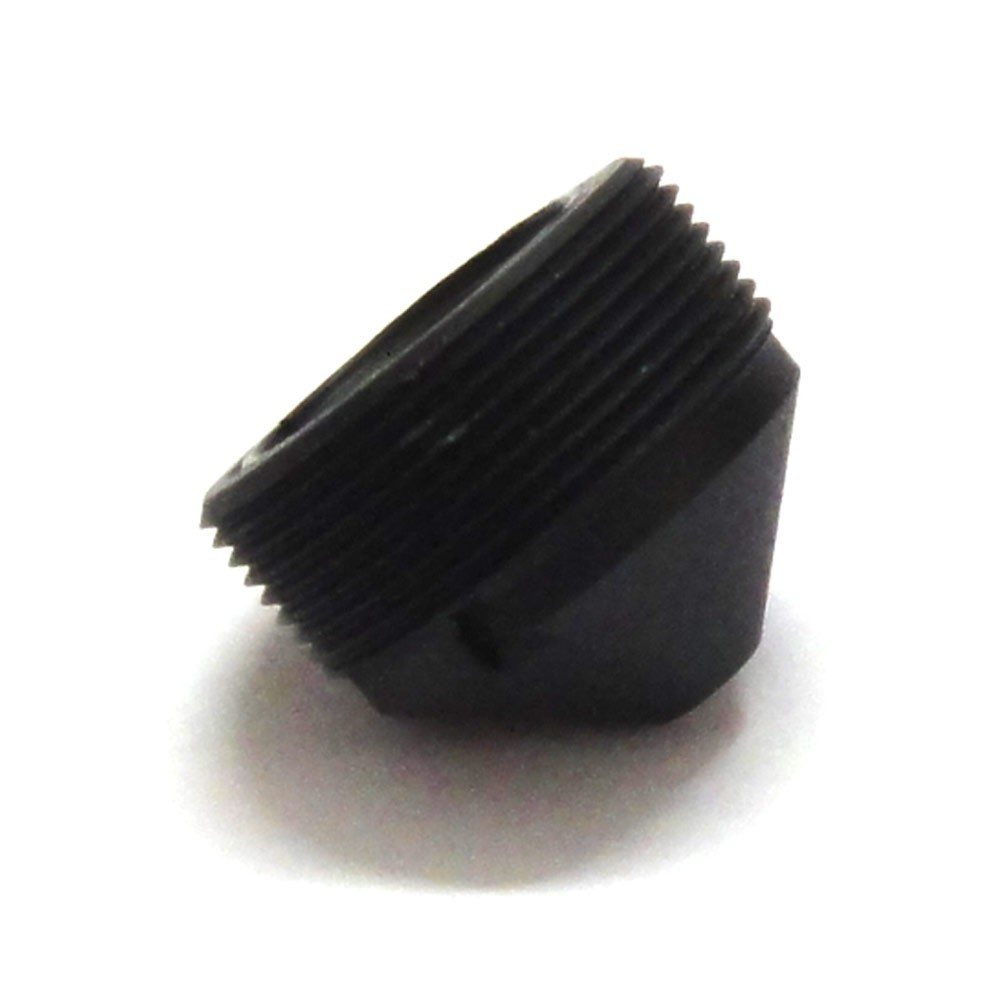

HD 2mp 3.7mm pinhole CCTV lens IR Board Lens 1/2.7" M12 for IP 720p/1080p CCD Camera

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C03720WZK-2MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The products will be ready within 3 to 7 days, New products will need 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C03720WZK-2MP Mount:: M12*0.5
Focal Length:: 3.7mm Image Format:: 1/3''
Aperture:: F2.0 Field Angle(1/3%22):: 92°
Lens Size: Φ12mm(Dia) * 9.66mm(H)

HD 2mp 3.7mm pinhole CCTV lens IR Board Lens 1/2.7" M12 for IP 720p/1080p CCD Camera:


Model MR-C03720WZK-2MP Mount M12*0.5
Focal Length 3.7mm BFL 2.83mm
Sensor Size 1/3'' EFL 1.8mm
Aperture F2.0 Dimension Φ12*9.66mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 92° Resolution 2MP
Application Pinhole plane lens, doorbell lens




1. 3.7mm
pinhole CCTV lens IR Board Lens, M12 mount lens for IP 720p/1080p CCD Camera
2. 1/3" Format High quality cctv camera lens, optical lens , Miniture Lens
3. F2.0 aperture M12 mount 3.7mm 92 Degree of DFOV security lens
4. Wide angle pinhole Lens for hidden camera, Surveillance doorbell video Lens

5. 2MP High resolution Mini Lens, HD 3.7mm Pinhole CCTV IR Lens


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens

it could meet the demands as per 2MP resolution cameras. IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
