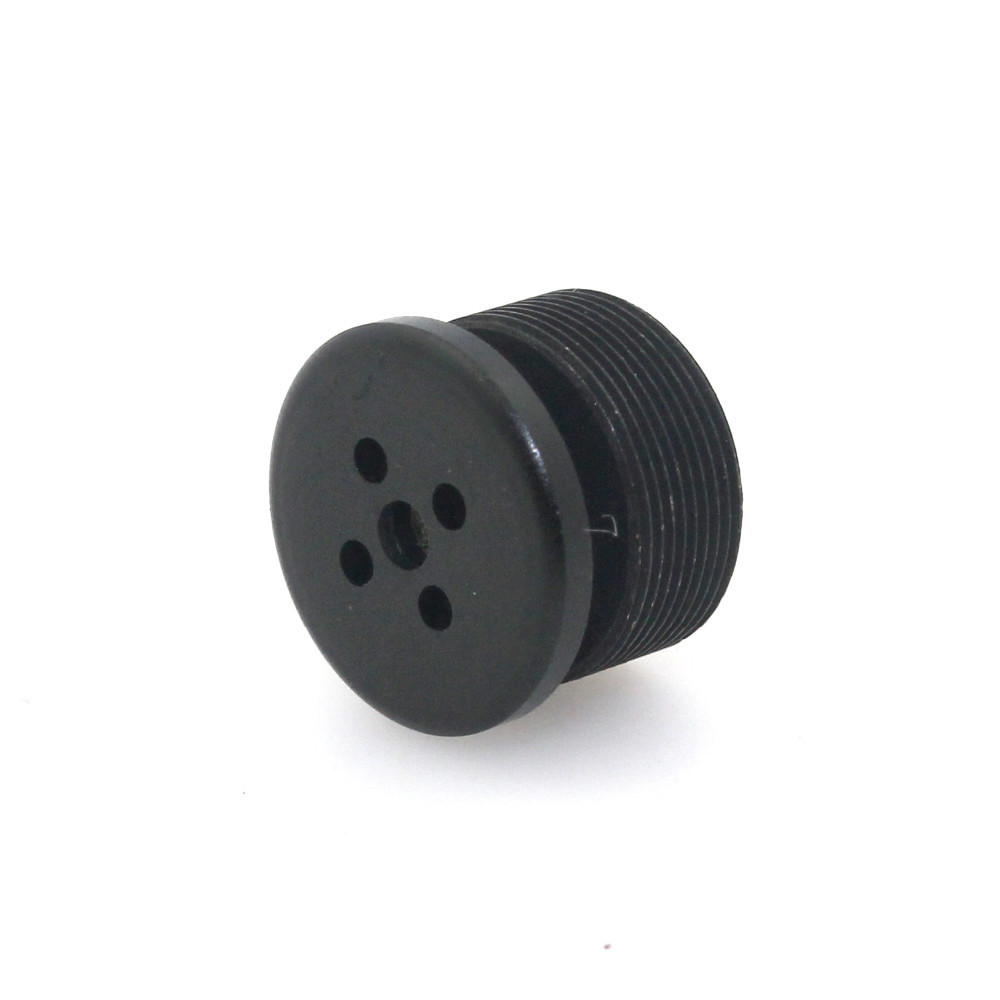

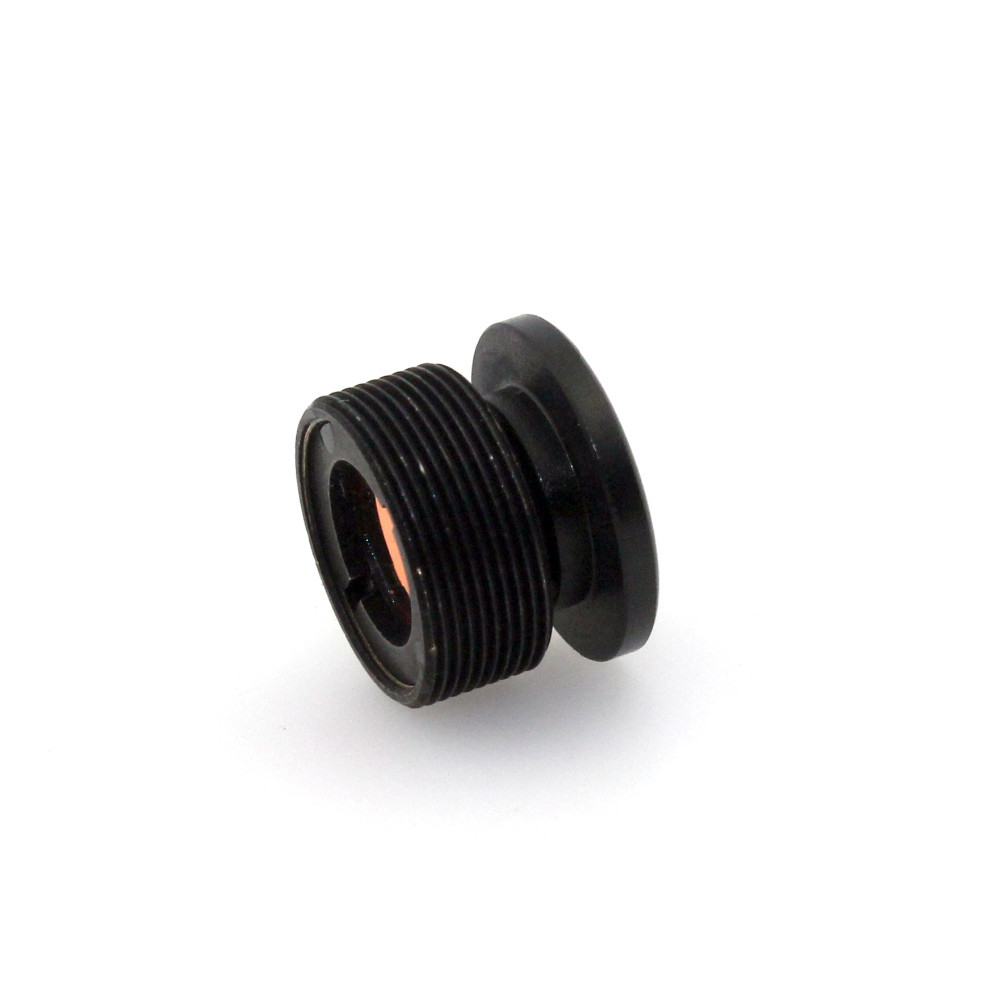

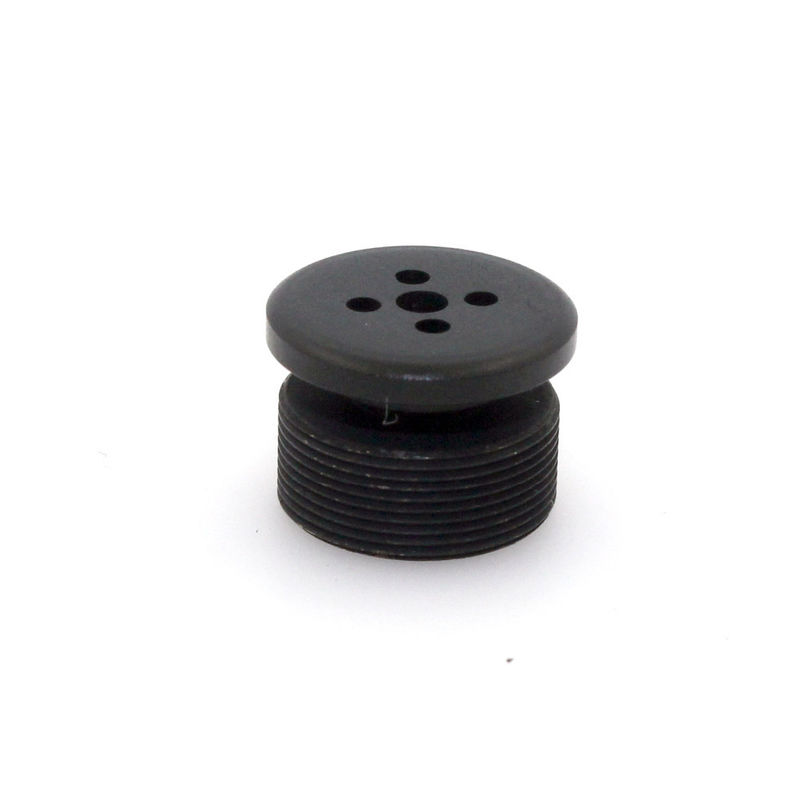

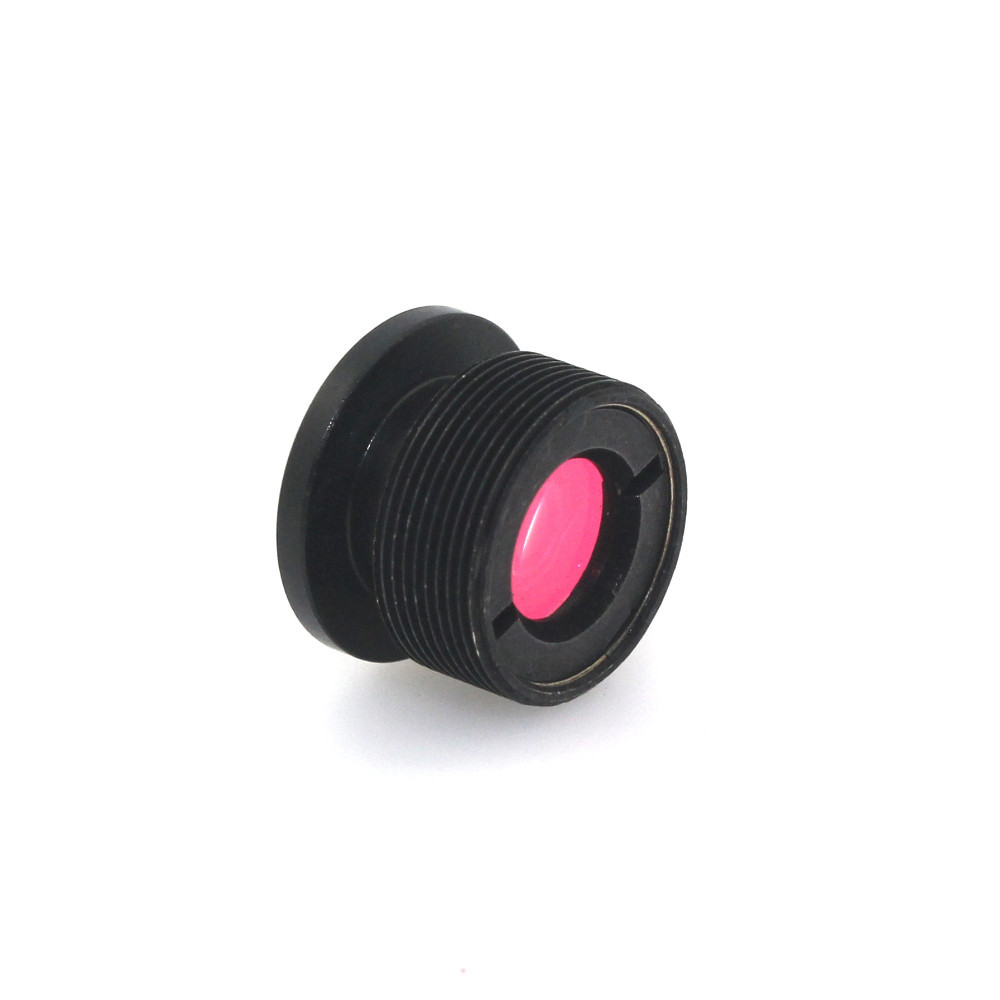

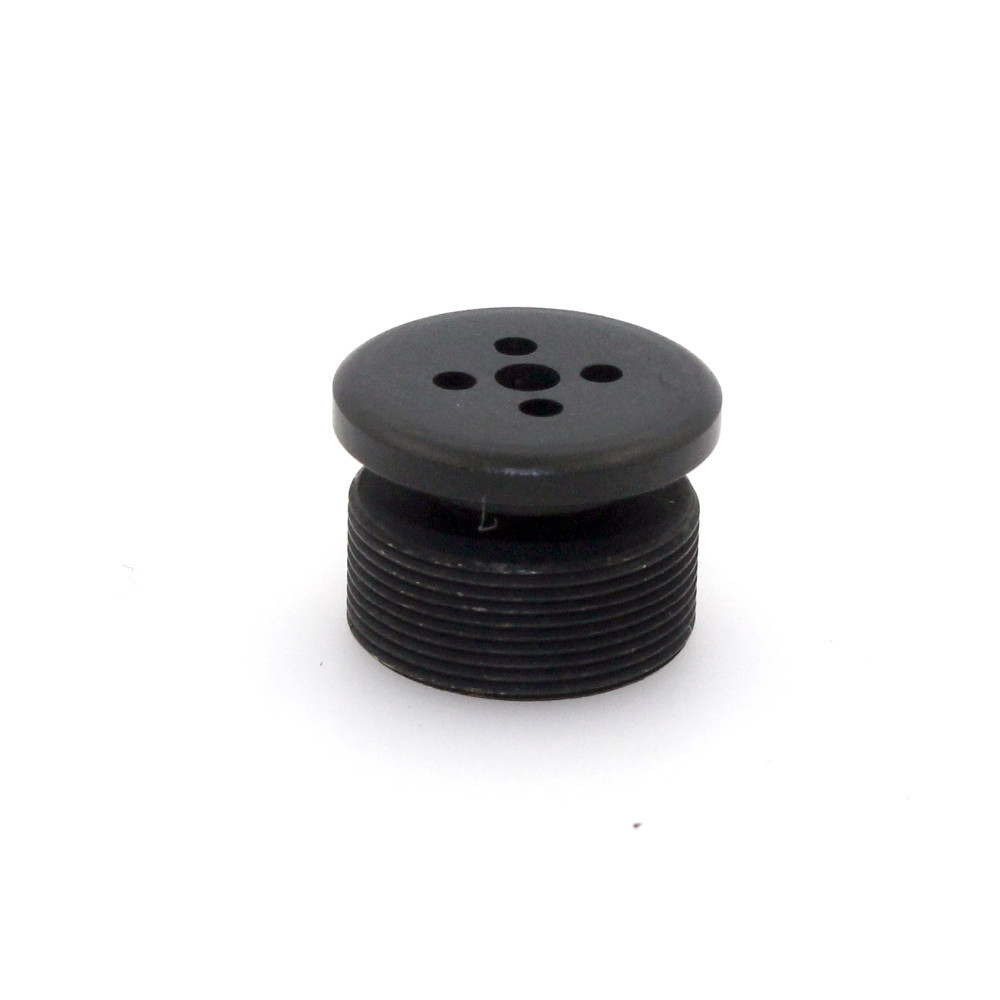

2.0 Megapixe HD Pinhole CCTV Lens Lightweight DFOV Optical IR Cut Lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C03720WNK-2MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The products will be ready within 3 to 7 days, New products will need 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C03720WNK-2MP Mount:: M12*0.5
Focal Length:: 3.7mm Image Format:: 1/3''
Aperture:: F2.0 Field Angle(1/3%22):: 80°
Lens Size: Φ12mm(Dia) * 5.7mm(H)
High Light:

pinhole camera lens


m12 pinhole lens

2MP HD 3.7mm lens IR Filter Metal Button effect Board 2.0 megapixel 3.7mm lens For CCTV Security Camera:


Model MR-C03720WNK-2MP Mount M12*0.5
Focal Length 3.7mm Optical BFL 0.02mm
Sensor Size 1/3'' Weight 3.9g
Aperture F2.0 Dimension Φ12mm(Dia) * 5.7mm(H)
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 80° Resolution 2.0MP
Application Pinhole plane lens, doorbell lens




1. 3.7 pinhole lens, F2.0 Button pinhole Lens, hidden lens.
2. 1/3" Format High quality cctv camera lens, optical lens , Miniture Lens
3. M12 mount 3.7mm 80 Degree of DFOV security lens
4. Wide angle pinhole Lens for hidden camera,Surveillance Lens, doorbell video Lens

5. 2.0MP High resolution Mini Lens, HD 3.7mm Pinhole CCTV IR Lens


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens

it could meet the demands as per 2.0MP resolution cameras. IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.


Tag: Pinhole CCTV Lens


2MP HD 3.7mm lens IR Filter Metal Button effect Board 2.0 megapixel 3.7mm lens For CCTV Security Camera
