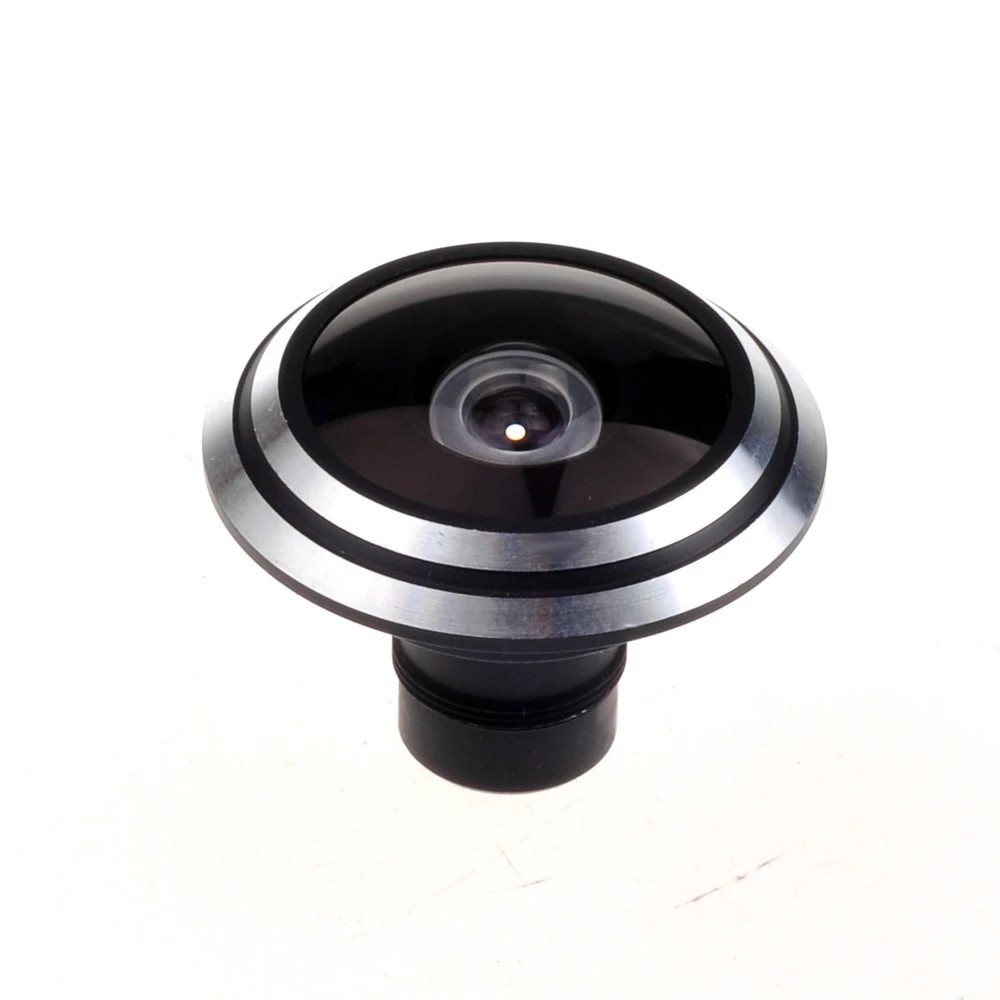

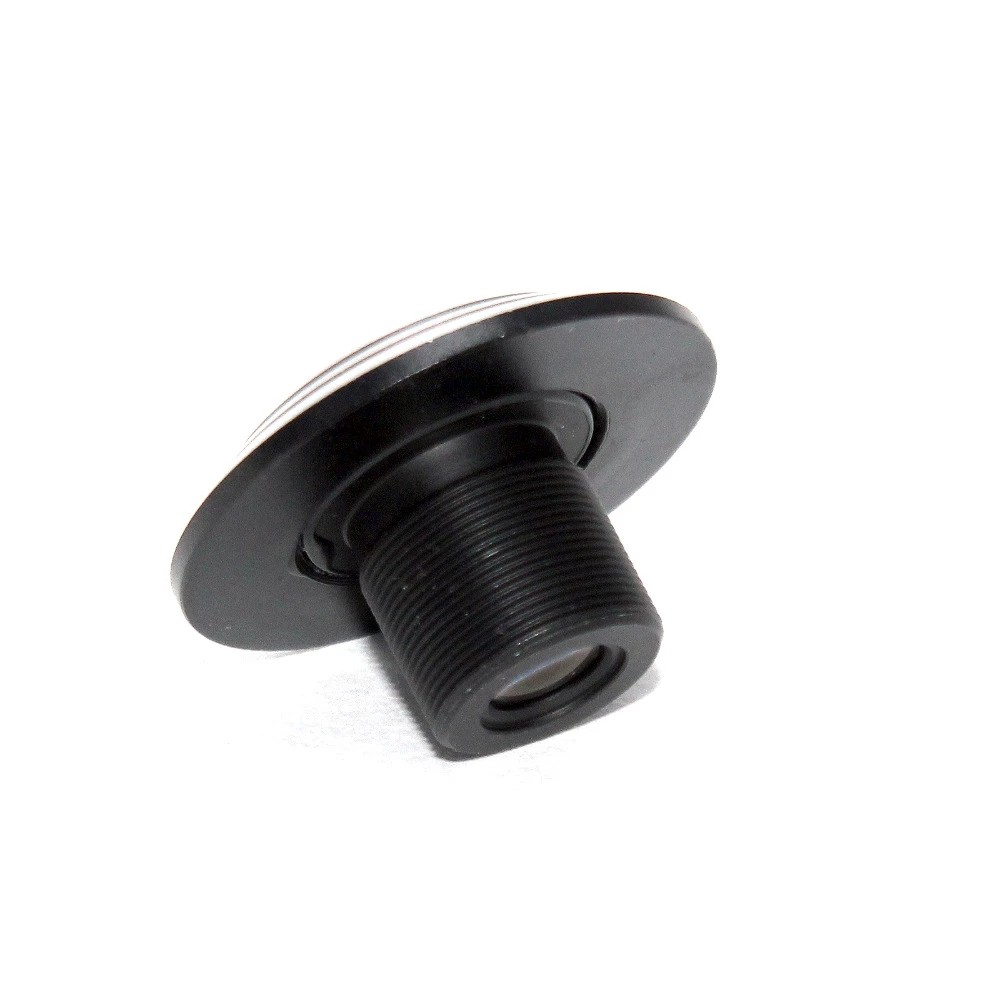

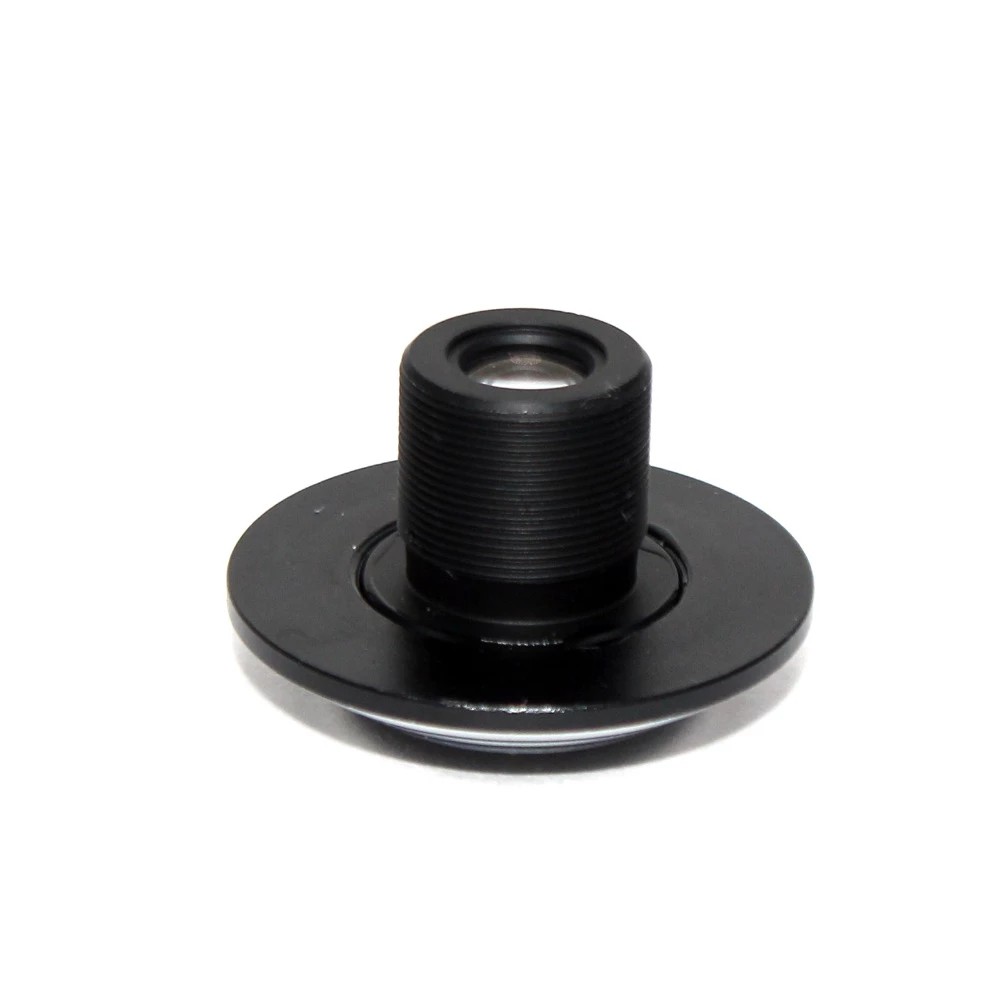

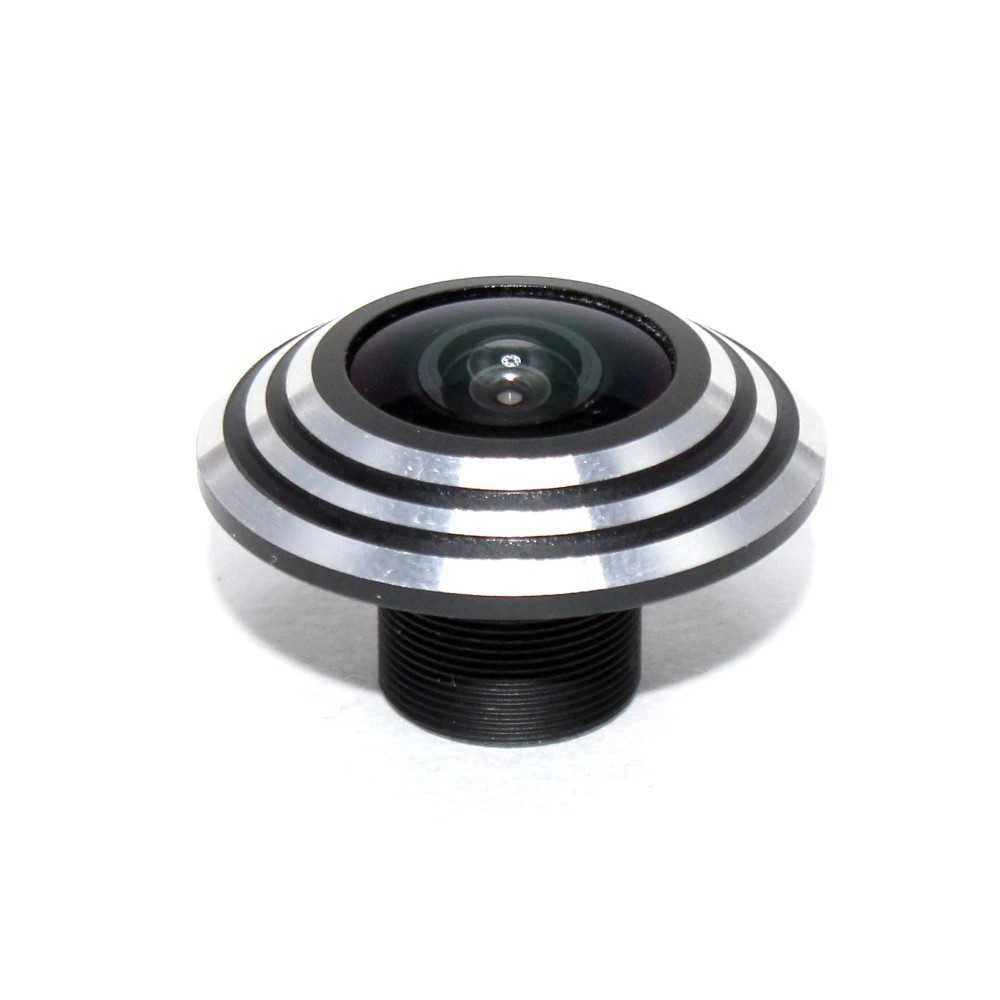

Professional HD Door Security Lens 1.78mm 170 Degrees High Pixel

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C17820WBL
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C17820WBL Mount:: M12*0.5
Focal Length:: 1.78mm Image Format:: 1/3″
Aperture:: F2.0 Field Angle: 178°*130°*95°
Lens Size: φ31*22.9mm
High Light:

cctv fisheye lens

,

door security lense

High Quality Profession Door Cam lens Hd 1.78mm Wide Angle Big Fisheye Lens Around 170 Degrees Camera Lens M12 Cctv Lens:



Features:
1. 1.78mm F2.0 M12 Lens, MTV fisheye lens.
2. 1/3" Format High quality cctv camera lens, optical lens ,M12 Mount Lens
3. Fisheye Camera lens, 178 Degree of DFOV surveillance lens
4. Wide angle fisheye Lens for box camera,Surveillance Lens, Mini Dome Camera Lens



Specification
Model MR-C17820WBL Mount M12*0.5
Focal Length 1.78mm Resolution 1.0MP
Sensor Size 1/3'' Weight 15g
Aperture F2.0 Dimension φ31*22.9mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 178°*130°*95° BFL 6.3mm
Application Fisheye Camera Lens





Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 1.0 Megapixel,
IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: Fisheye CCTV Lens

High Quality Profession Door Cam lens Hd 1.78mm Wide Angle Big Fisheye Lens Around 170 Degrees Camera Lens M12 Cctv Lens
