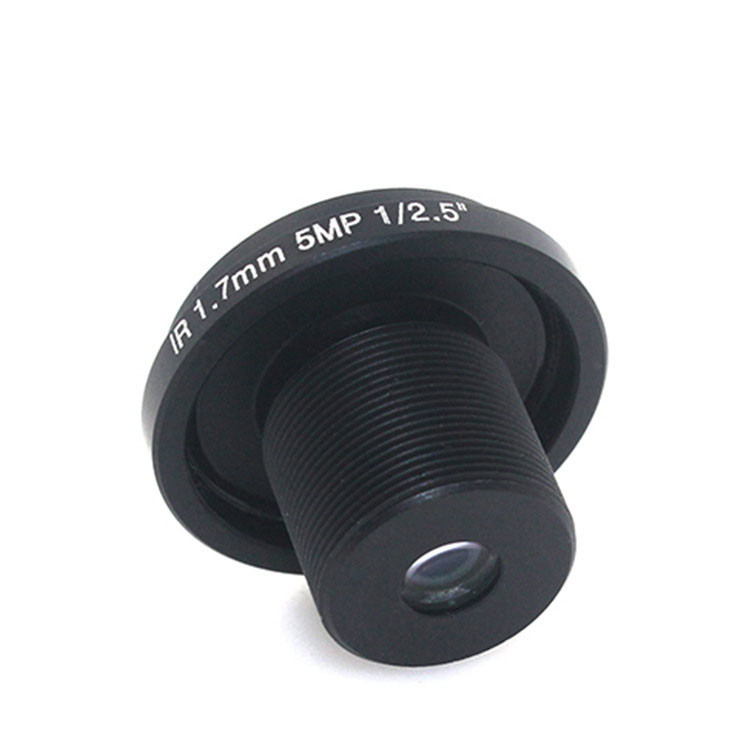

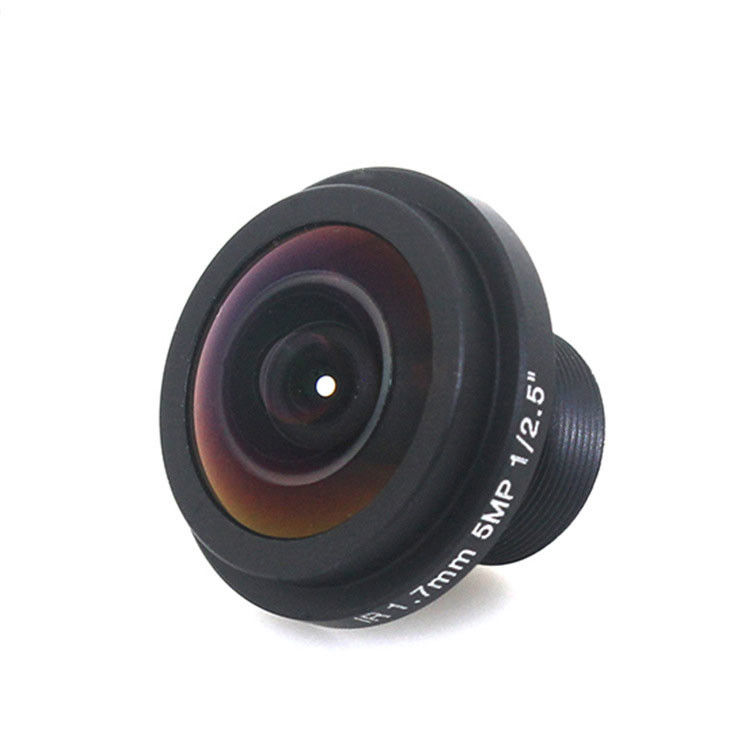

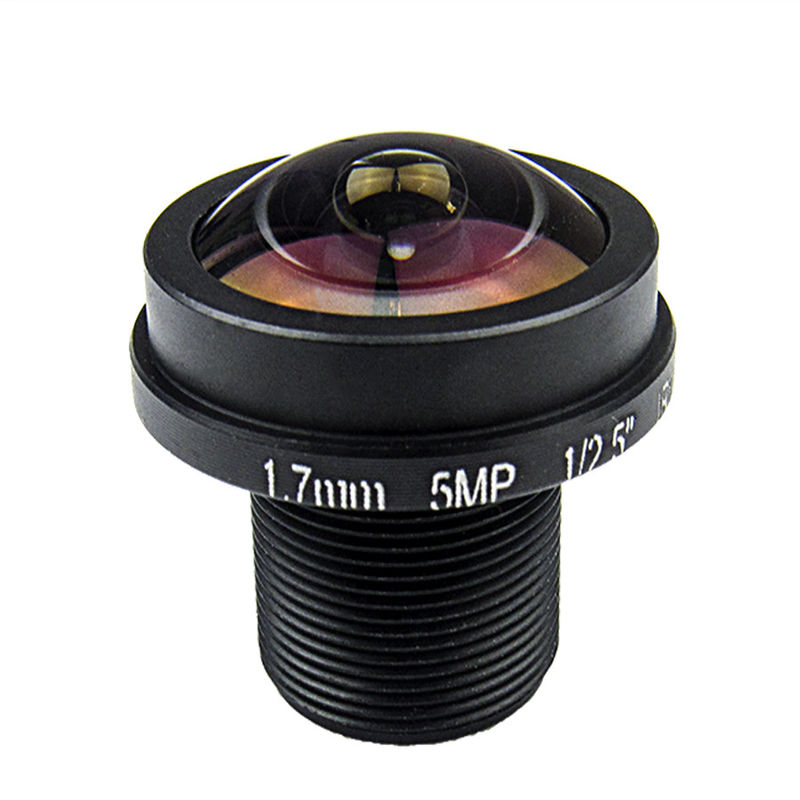

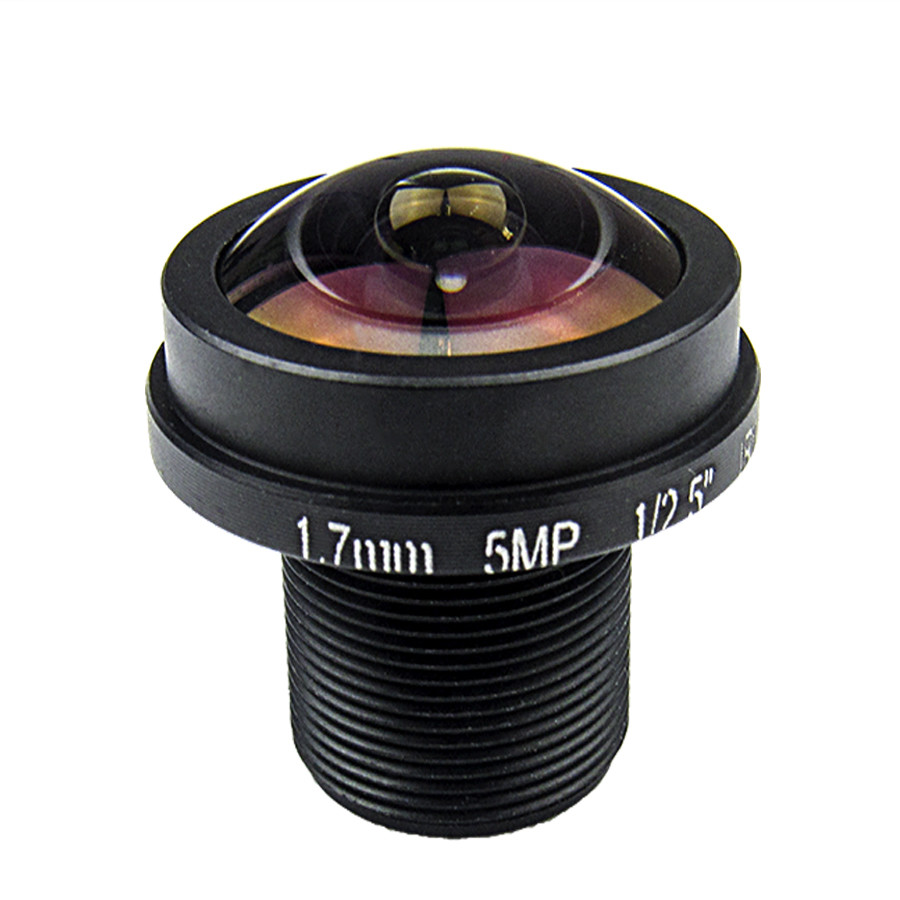

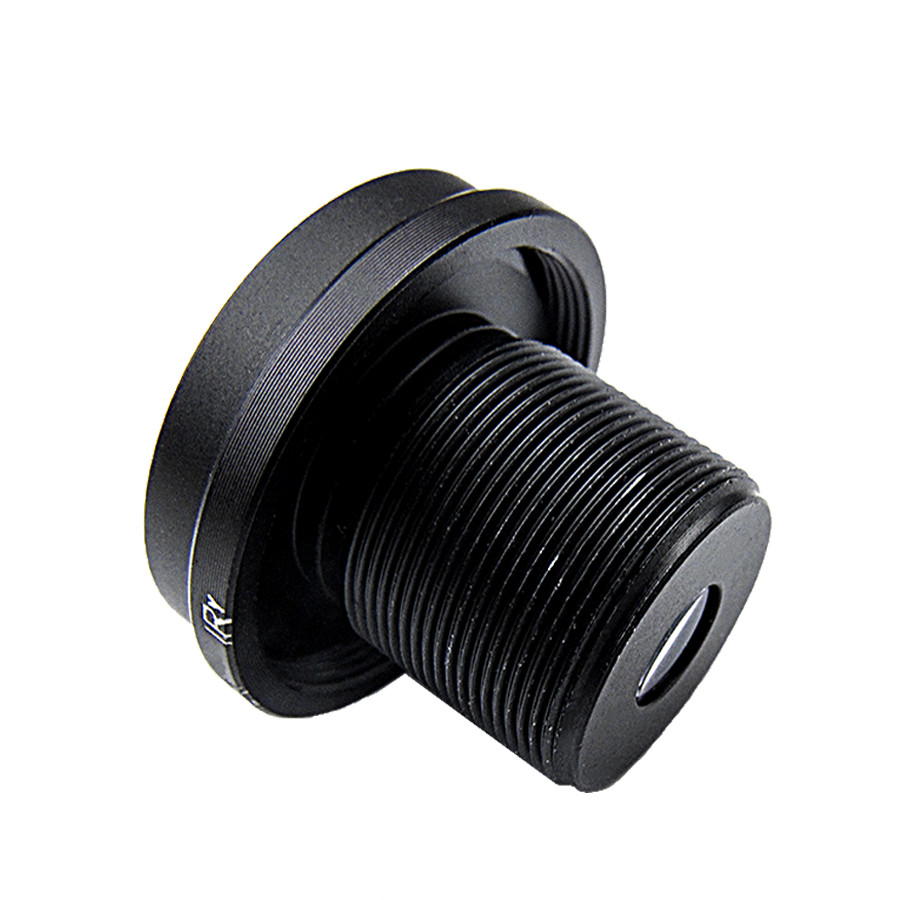

High Definition F2.0 Fisheye CCTV Lens 5MP 1.7MM M12*0.5 Mount 1/2.5 Optical

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C01720WFY-5MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C01720WFY-5MP Mount:: M12*0.5
Resolution:: 5MP Focal Length:: 1.7mm
Image Format:: 1/2.5″ Aperture:: F2.0
Field Angle: 185° Lens Size: φ20*19mm
High Light:

door security lense

,

ip camera fisheye lens

HD Fisheye CCTV Lens 5MP 1.7MM M12*0.5 Mount 1/2.5 F2.0 180 degree for IP Security CCTV Cameras:



Features:
1. 5.0 Megapixel fisheye lens, 1.7mm F2.0 M12 Lens, MTV Board lens.
2. 1/2.5" Format High quality cctv camera lens, optical lens ,M12 Mount Lens
3. 1.7mm focal length 185 Degree of DFOV surveillance lens
4. Wide angle fisheye Lens for box camera,Surveillance Lens, Mini Dome Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.





Specification
Model MR-C01720WFY-5MP Mount M12*0.5
Focal Length 1.7mm Resolution 5.0MP
Sensor Size 1/2.5'' Weight 8.5g
Aperture F2.0 Dimension φ20*19mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 185° BFL 4.8mm
Application Fisheye Camera Lens





Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel, IR Cut and Lens Holder are available as per request.
