| Place of Origin: | China |
|---|---|
| Brand Name: | Octavia |
| Certification: | CE, FCC, RoHS |
| Model Number: | MR-C3620WYT-1037MP2 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | The inside is packed by blister box usually, the outer is packed by carton |
| Delivery Time: | The regular products will be ready within 3 to 7 days, special models will need about 30 days |
| Payment Terms: | T/T, L/C, PAYPAL, WEST UNION |
| Supply Ability: | 1000000pcs/month |
| Model:: | MR-C3620WYT-1037MP2 | Mount:: | M12*0.5 |
|---|---|---|---|
| Focal Length:: | 3.6mm | Image Format:: | 1/2.7″ |
| Aperture:: | F2.0 | FOV: | 95° |
| MOD: | 0.2M | Material: | Metal, Plastic And Glass |
| High Light: | 3.6mm CCTV Camera Lens,2MP surveillance camera lenses,2MP CCTV Camera Lens |
||

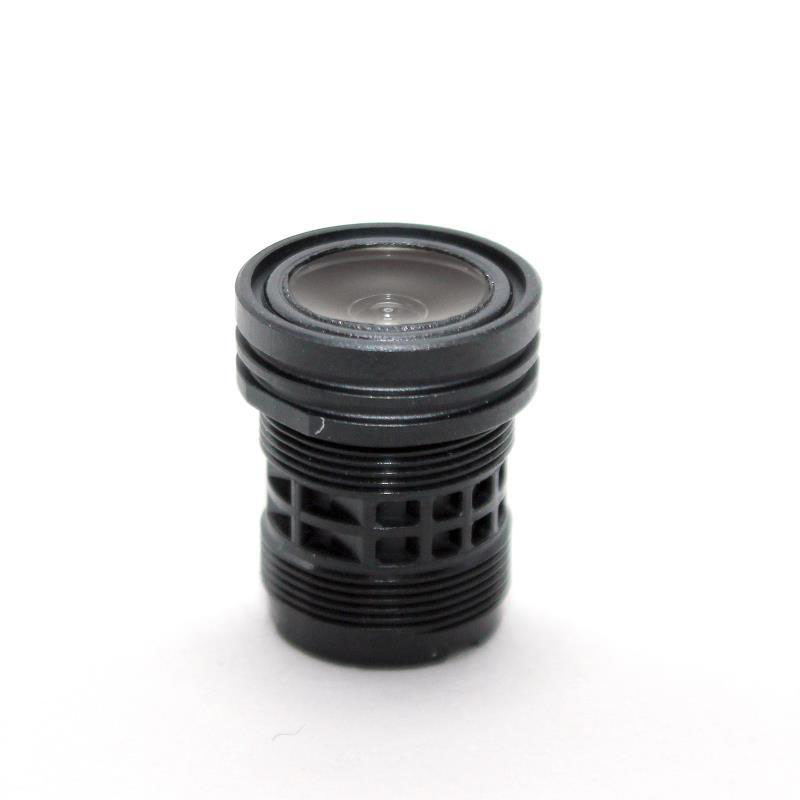

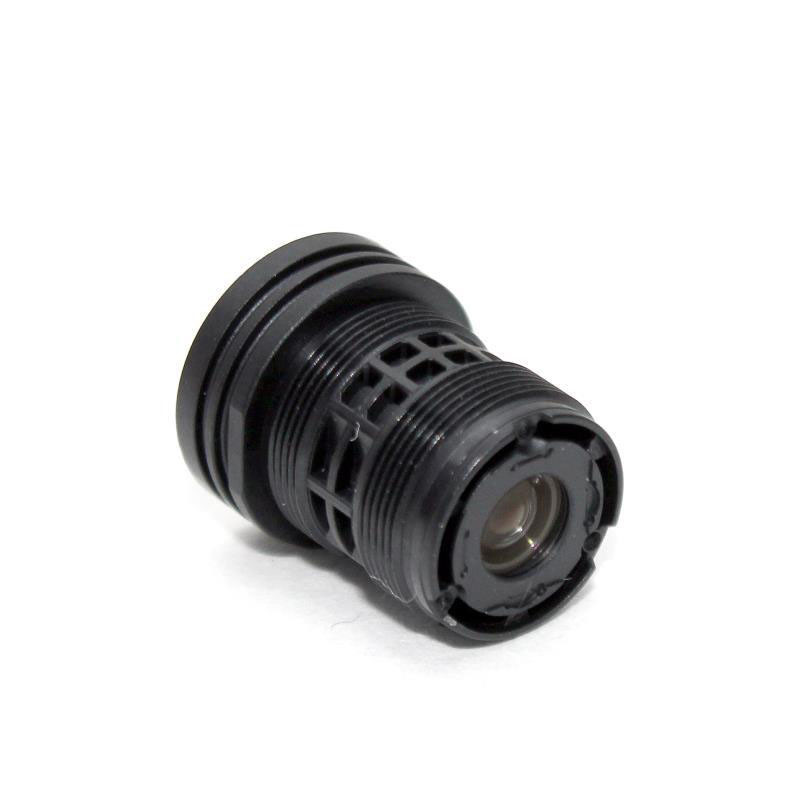

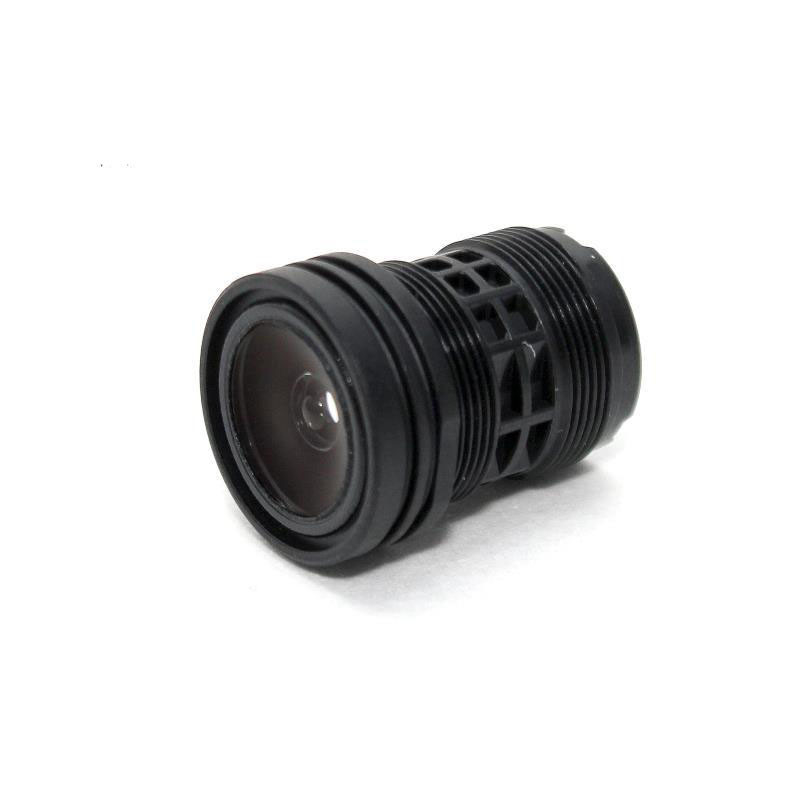

High Definition Camera Lens 2 Megapixels 3.6mm:
Features:
1. 3.6mm m12 Camera lens, F2.0 mono-focal Lens, fixed iris focal lens.
2. 1/2.7" Format High quality cctv camera lens, optical lens, Mini MTV Lens
3. 95 Degree of FOV security lens
4. 2.0 Megapixel Lens for CCTV camera, Surveillance Lens, MTV Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.
| Model | MR-C3620WYT-1037MP2 | Mount | M12*0.5 |
| Focal Length | 3.6mm | Iris | Fixed |
| Sensor Size | 1/2.7'' | Resolution | 2MP |
| Aperture | F2.0 | Weight | 5g |
| MOD | 0.2m | Operating Temperature | -20°C -- +60°C |
| Angle of View | 95° | ||
| Remark | IP Camera Lens | ||
Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 2.0 Megapixel, IR Cut and Lens Holder are available as per request.
Introduction:
Octavia is founded in 2008, Octavia is committed to the development and production of precision optical components and optical lens assemblies. Staffing is presently more than 500 employees including mechanical, optical and coating engineers. Octavia owns facility of 10,000 square meters, including 2000 square meters clean room of class 2000 for coating center, testing center and class 1000 for lenses assembly. In 2012 Octavia invested 10M USD to establish the factory of Fuzhou, which can manufacture 4M Lenses components and assemble 600K lenses per month.
