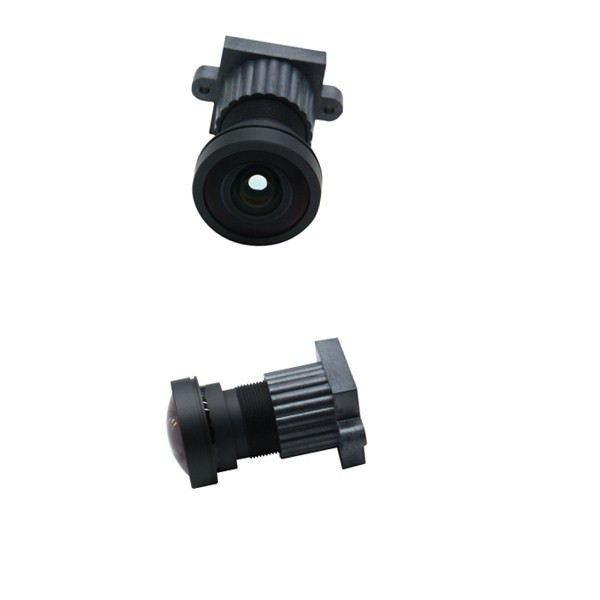

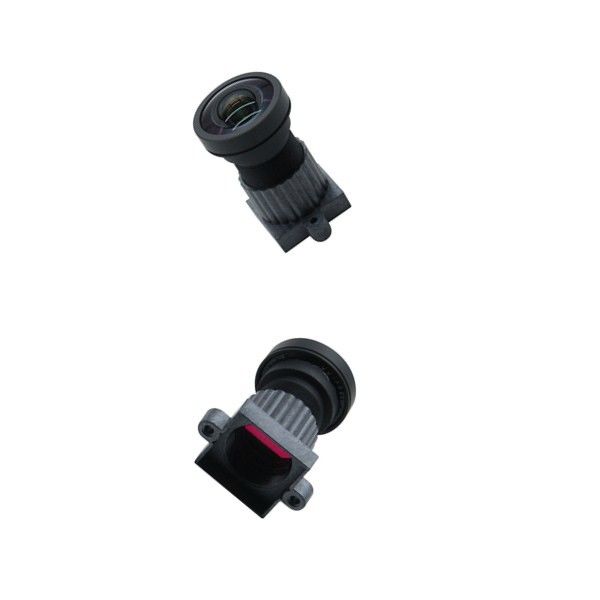

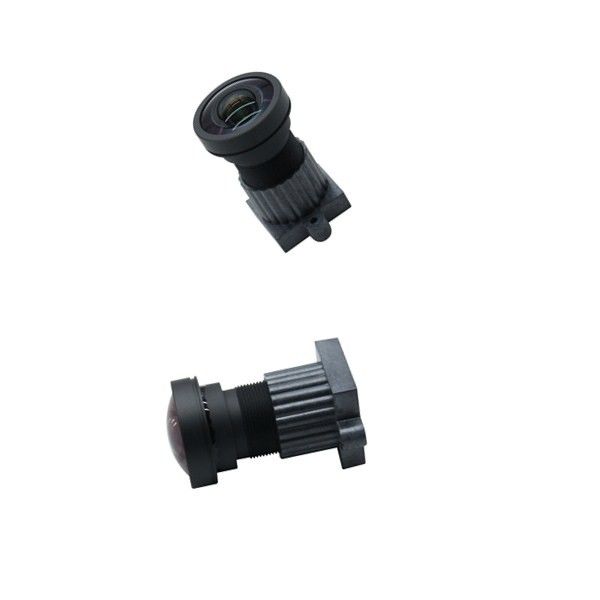

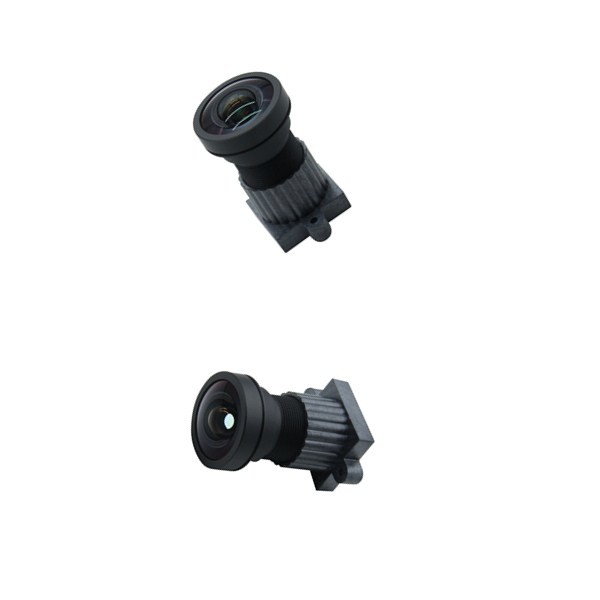

4.41mm 1/2" 2/3" F1.8 Car Camera Lens Wide Angle M12 for JXF25 chip sensor

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-T04418S-JXF25
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-T04418S-JXF25 Mount:: M12*0.5
TTL: 29.64mm FOV: 138°*120°*67°
Iris: F1.8 MOD: 0.2M
Material: Metal And Glass
High Light:

F1.8 Car Camera Lens


4.41mm Car Camera Lens


2/3" Cctv Fisheye Lens

4.41mm 1/2 "2/3" inch car lens security monitoring lens f / no1.8 7g ultra high definition wide angle M12:


Octavia is founded in 2008, Octavia is committed to the development and production of precision optical components and optical lens assemblies. Staffing is presently more than 500 employees including mechanical, optical and coating engineers. Octavia owns facility of 10,000 square meters, including 2000 square meters clean room of class 2000 for coating center, testing center and class 1000 for lenses assembly. In 2012 Octavia invested 10M USD to establish the factory of Fuzhou, which can manufacture 4M Lenses components and assemble 600K lenses per month.


Model MR-T04418S-JXF25 Mount M12*0.5
Focal Length 4.41mm Sensor JXF25
Sensor Size 2/3' Distortion <14%
Aperture F1.8 RI >72%
MOD 0.2m CRA <13°
Angle of View 138°*120°*67° Structure

7G+1 IR Cut

Operating Temp. -40°C ~ +85°C
Application car lens


1. 4.41mm 2/3" inch car lens security monitoring lens f/1.8 aperture, FOV: 138°*120°*67°
2. 7G Components all glass ultra high definition wide angle M12 Camera Lenses
3. High resolution vehicle lens, JXF25 sensor, match IR CUT filter.



1. Glass-plastic mixed lenses: the lens interior mostly uses glass lenses, plastic aspheric lenses mixed form, effective correction of aberration;

2. Low-dispersion glass materials: low-dispersion materials are used to effectively reduce dispersion. The effect of correcting the axial chromatic aberration at telephoto end and the vertical chromatic aberration at wide angle end is particularly significant.

3. Temperature drift control: Using optical materials with low thermal expansion coefficient, the lens can obtain clear pictures without re-focusing under different temperature environments.

4. Flatness of image surface: Excellent optical design technology is used to achieve high pixel and high contrast uniformly from the center to the periphery of the image.

5. Day-night confocal: Both visible and near-infrared light have almost no change in the focal plane, so that the image can get a clear effect in day and night.


4.41mm 1/2" 2/3" inch car lens security monitoring lens f/1.8 7g ultra high definition wide angle M12
