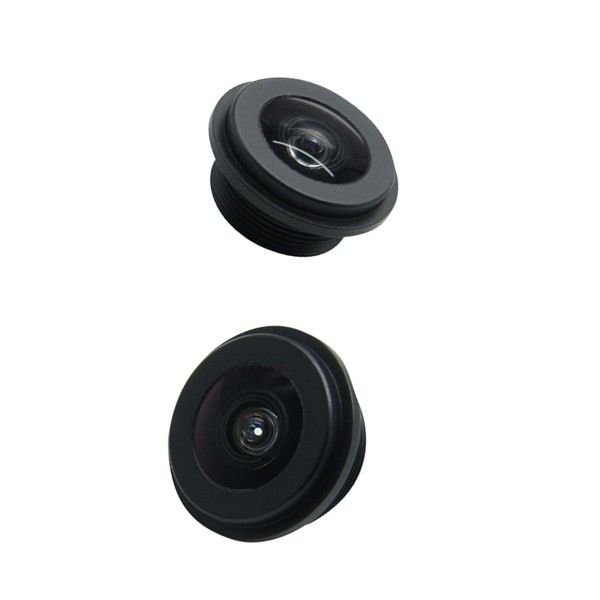

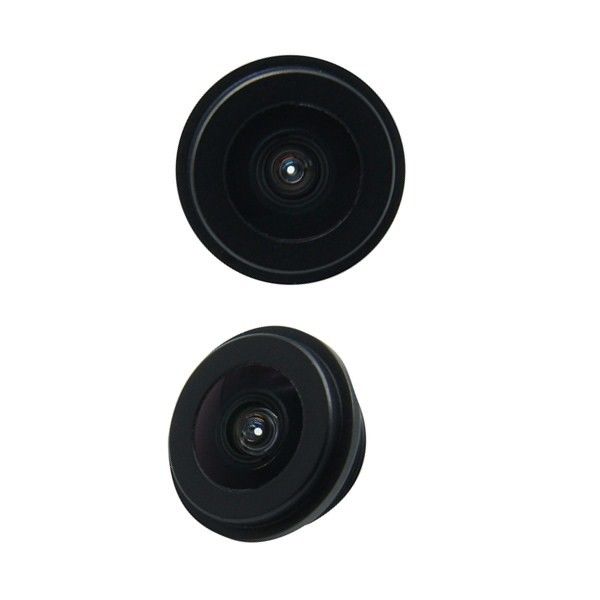

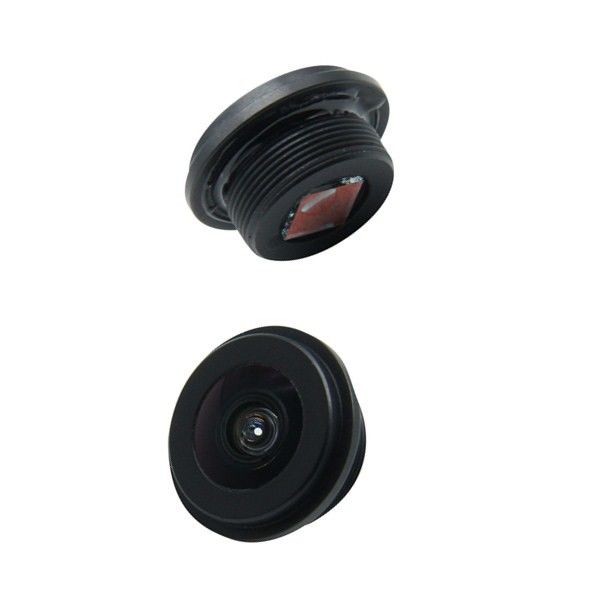

FPV 1/3.66' F2.25 1.02mm Vehicle Rear View Lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-T010222S-13
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-T010222S-13 Mount:: M12*0.5
TTL: 10.15mm Focal Length:: 1.02mm
FOV: 163°*138°*110° BFL: 1.71mm
High Light:

1.02mm Vehicle Rear View Lens


F2.25 Vehicle Rear View Lens


1/3.66' UAV Aerial Photography Lens

Manufacturer 1.02mm vehicle mounted lens UAV aerial photography vehicle rear view lens M12 high definition wide angle:


Model MR-T010222S-13 Mount M12*0.5
Focal Length 1.02mm BFL 1.71mm
Sensor Size 1/3.66' Distortion <12.5%
Aperture F2.25 RI >69%
MOD 0.2m CRA <17°
Angle of View 163°*138°*110° Structure 4E+1 IR
Operating Temp. -40°C ~ +85°C
Application UAV aerial photography vehicle rear view lens


1. 1.02mm vehicle mounted lens, UAV aerial photography vehicle rear view lens
2. 1/2.3.66" M12 high definition wide angle Lens, F2.25 aperutre BFL 1.71mm lens
3. FPV Lenses for action camera with 4E Components, could add the IR Filter 650nm, 850nm, 940nm


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel, IR Cut and Lens Holder are available as per request.


Manufacturer 1.02mm vehicle mounted lens UAV aerial photography vehicle rear view lens M12 high definition wide angle


Model No. Focal Length Aperture Mount Format Angle Of View
Board Lens (Megapixel lens is optional from 1.0MP, 1080P, 3MP, 5MP, 8MP, etc.)
MR-02120 2.1mm F2.0 M12*0.5 1/3" 145°
MR-02520 2.5mm F2.0 M12*0.5 1/3" 130°
MR-02820 2.8mm F2.0 M12*0.5 1/3" 120°
MR-3620 3.6mm F2.0 M12*0.5 1/3" 92°
MR-0420 4.0mm F2.0 M12*0.5 1/3" 80°
MR-0620 6.0mm F2.0 M12*0.5 1/3" 54°
MR-0820 8.0mm F2.0 M12*0.5 1/3" 43°
MR-1220 12mm F2.0 M12*0.5 1/3" 29°
MR-1620 16mm F2.0 M12*0.5 1/3" 20°
MR-2520 25mm F2.0 M12*0.5 1/3" 12°
