| Place of Origin: | China |
|---|---|
| Brand Name: | Octavia |
| Certification: | CE, FCC, RoHS |
| Model Number: | L02927X-2059 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | The inside is packed by blister box usually, the outer is packed by carton |
| Delivery Time: | The regular products will be ready within 3 to 7 days, special models will need about 30 days |
| Payment Terms: | T/T, L/C, PAYPAL, WEST UNION |
| Supply Ability: | 1000000pcs/month |
| Model:: | MR-L32427X-2181 | Mount:: | M12*0.5 |
|---|---|---|---|
| TTL: | 22.5mm | Focal Length:: | 3.24mm |
| Aperture:: | F2.7 | BFL: | 3.95mm |
| High Light: | 1/2.5'' wide Angle reversing lens,F2.7 cctv wide angle lens |
||

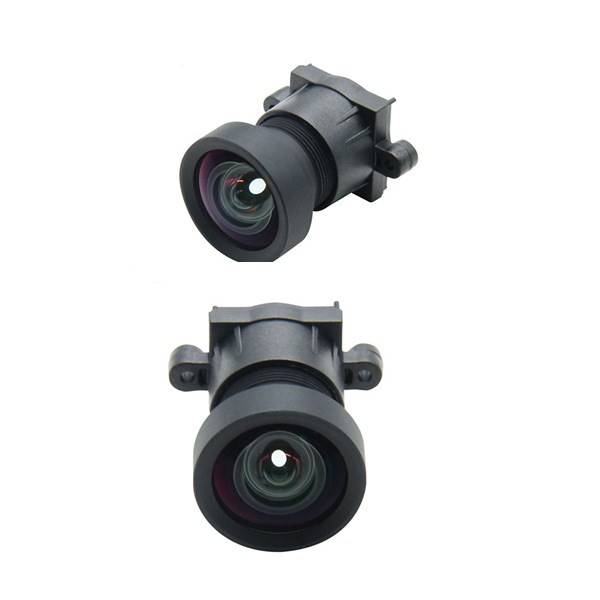

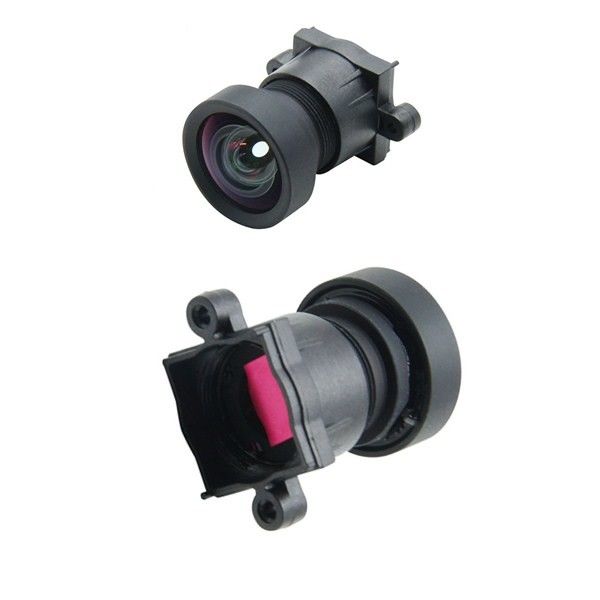

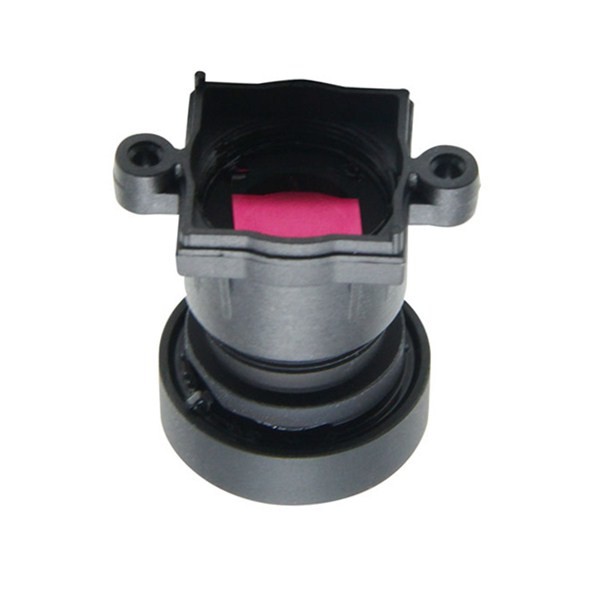

Factory production 1/2.5'' 3.24mm F2.7 Backup Rear View Camera wide Angle reversing lens:
| Model | MR-L32427X-2181 | Mount | M12*0.5 |
| Focal Length | 3.24mm | BFL | 3.95mm |
| Sensor Size | 1/2.5'' | Distortion | <0.5% |
| Aperture | F2.7 | CRA | <12.6° |
| MOD | 0.2m | RI | >70% |
| Angle of View | 95.4°*87°*57° | Structure | 4G2P |
| Operating Temp. | -30°C ~ +75°C | ||
| Application | Car Camera Lens | ||
Features:
1. 3.24mm focal length 95.4 Degree of FOV surveillance lens, can add the IR filter
2. F2.7 aperture Backup Rear View Camera lens
3. 1/2.5" Format High quality wide Angle reversing lens
Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are Megapixel, IR Cut and Lens Holder are available as per request.
