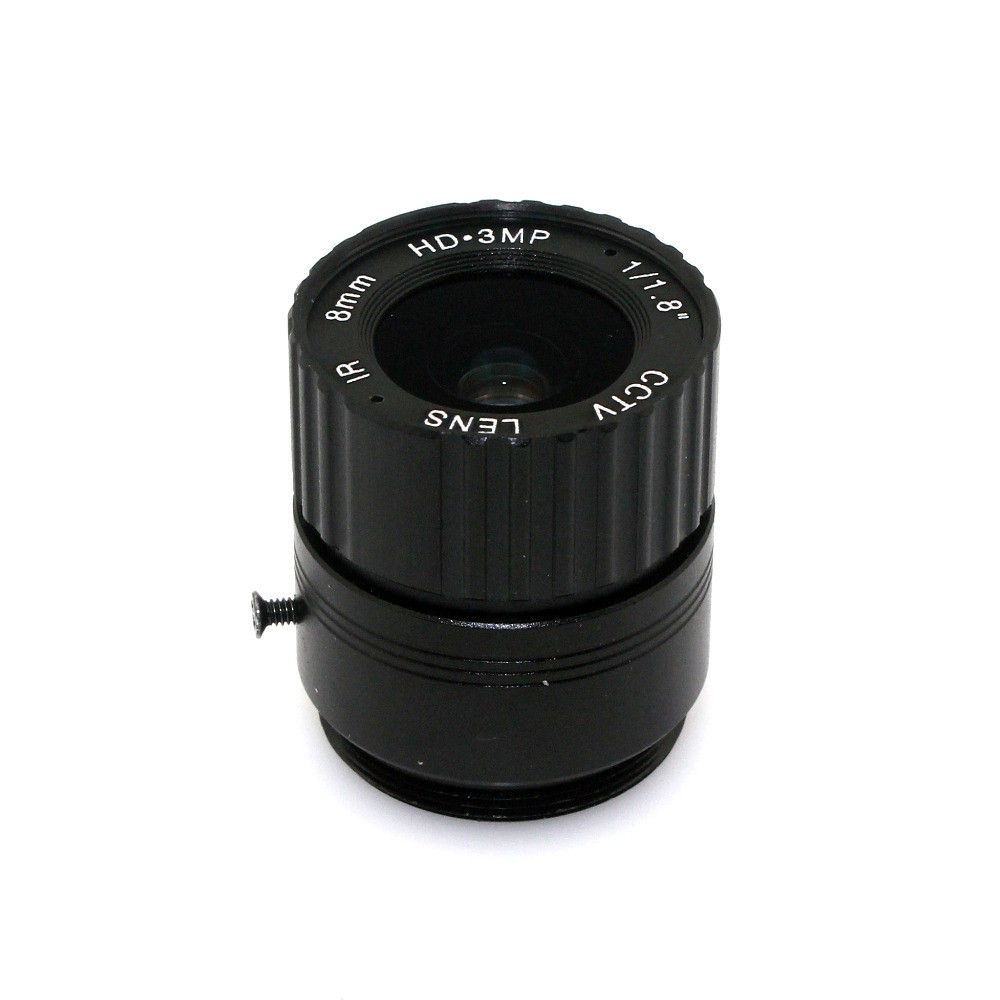

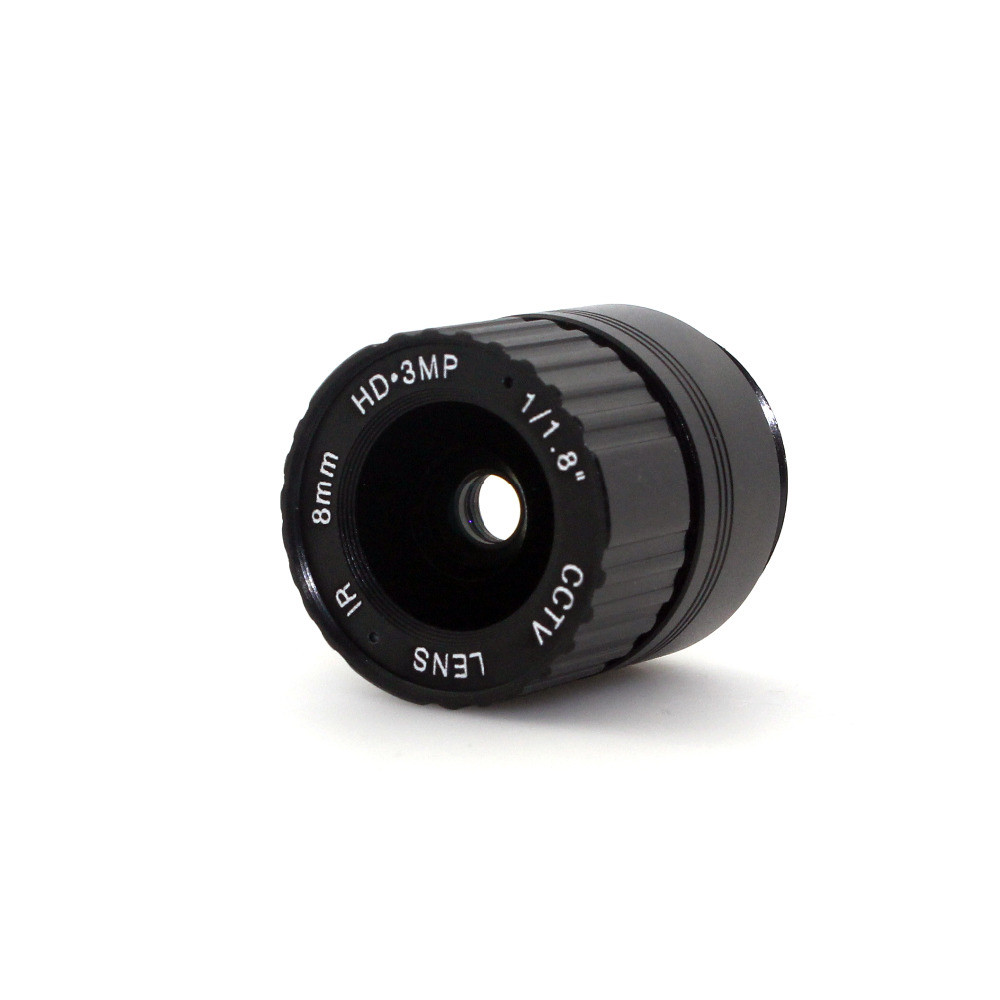

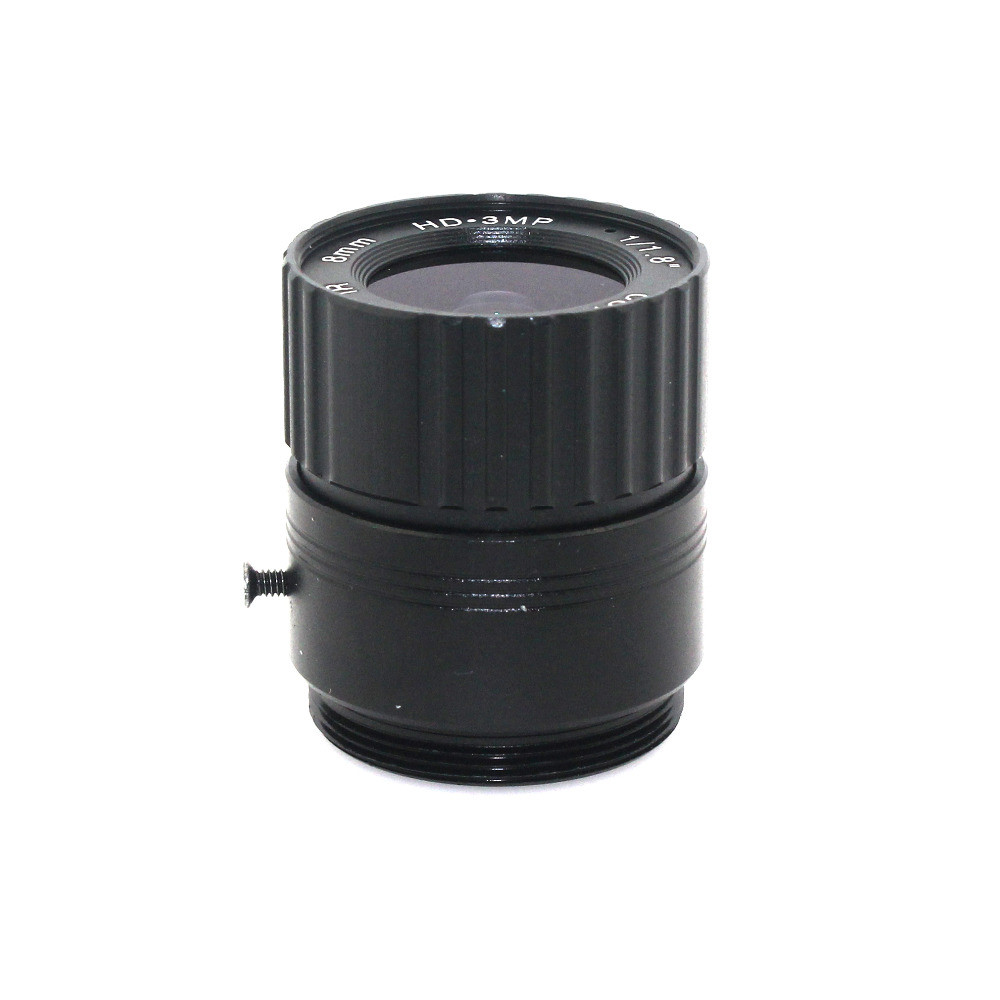

1/1.8 Sensor CS Mount CCTV Lens 8mm 43 Degree For HD IP AHD HDCVI SDI Cameras

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C0814W118-3MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C0814W118-3MP Mount:: CS
Resolution:: 3.0MP Focal Length:: 8mm
Image Format:: 1/1.8″ Aperture:: F1.4
Field Angle(1/3%22):: 40° Application: For HD IP Camera
High Light:

cs mount cctv lens


cctv motorized zoom lens

8mm 1/1.8 sensor CS mount HD CCTV Camera Lens 43 degree 3MP IR HD Security Camera Lens For HD IP AHD HDCVI SDI Cameras:


Model MR-C0814W118-3MP Mount CS
Focal Length 8mm Back Focal Length 9.86mm
Sensor Size 1/1.8'' Resolution 3.0MP
Aperture F1.4 Dimension Φ28*31mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 40° Weight 40.3g
Remark AHD, CVI, IP Camera Lens


1. 3.0 Megapixel Monitoring lens, 8mm F1.4 mono-focal Lens, fixed iris manual focus lens.
2. 1/1.8" Format High quality cctv camera lens, optical CS mount Lens
3. 8mm focal length 40 Degree security lens
4. F1.4 aperture IP Camera Lens for Network camera, Surveillance IR Infrared Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.


Company Indroduction:
Octavia is established in 2008 Shenzhen. with almost 10 years development, the products sale a lot in domestic and abroad. There is the independent production, from the blank lens processing to the finished product shipment, a complete line of production. The quality of the product is more guaranteed and the cost of production is more affordable. Mr. Xie, our company's general manager, senior engineer, specialidzed in the development of products, has nearly 20 years of experience. Can change the product design according to the customer's needs.
