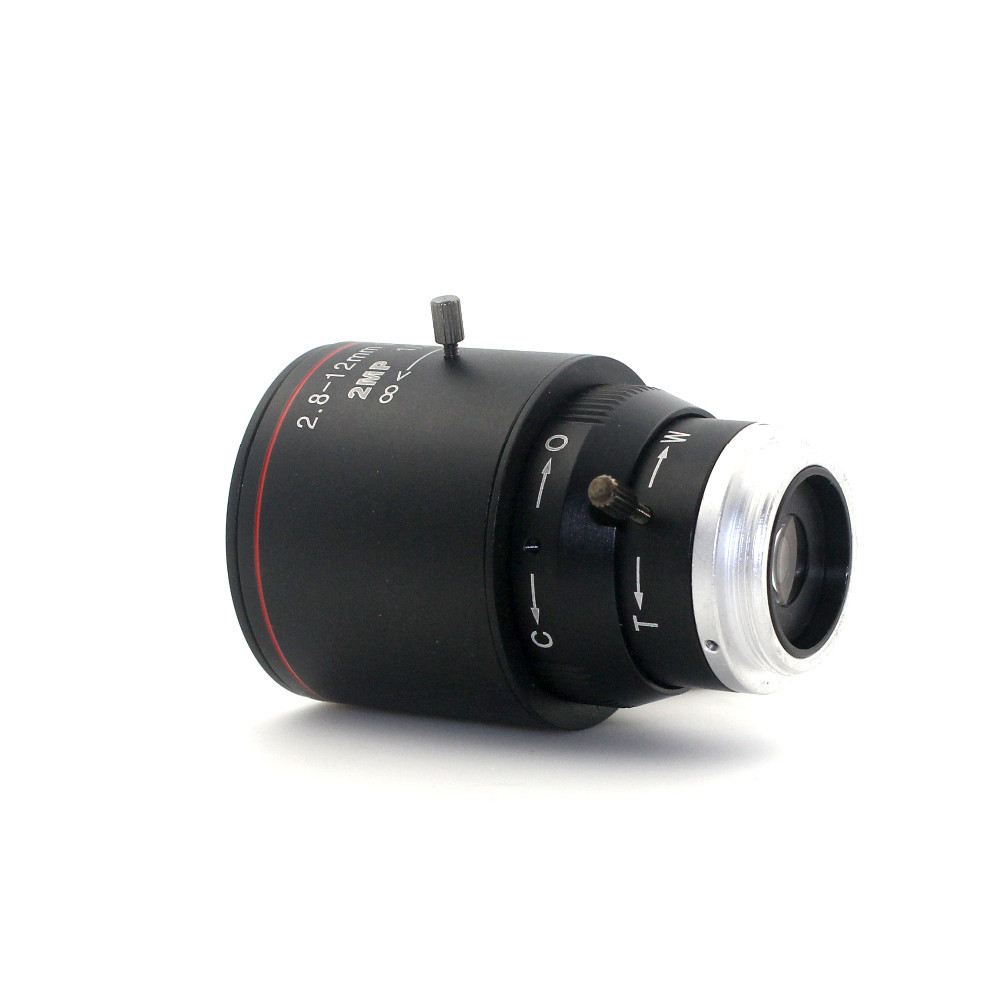

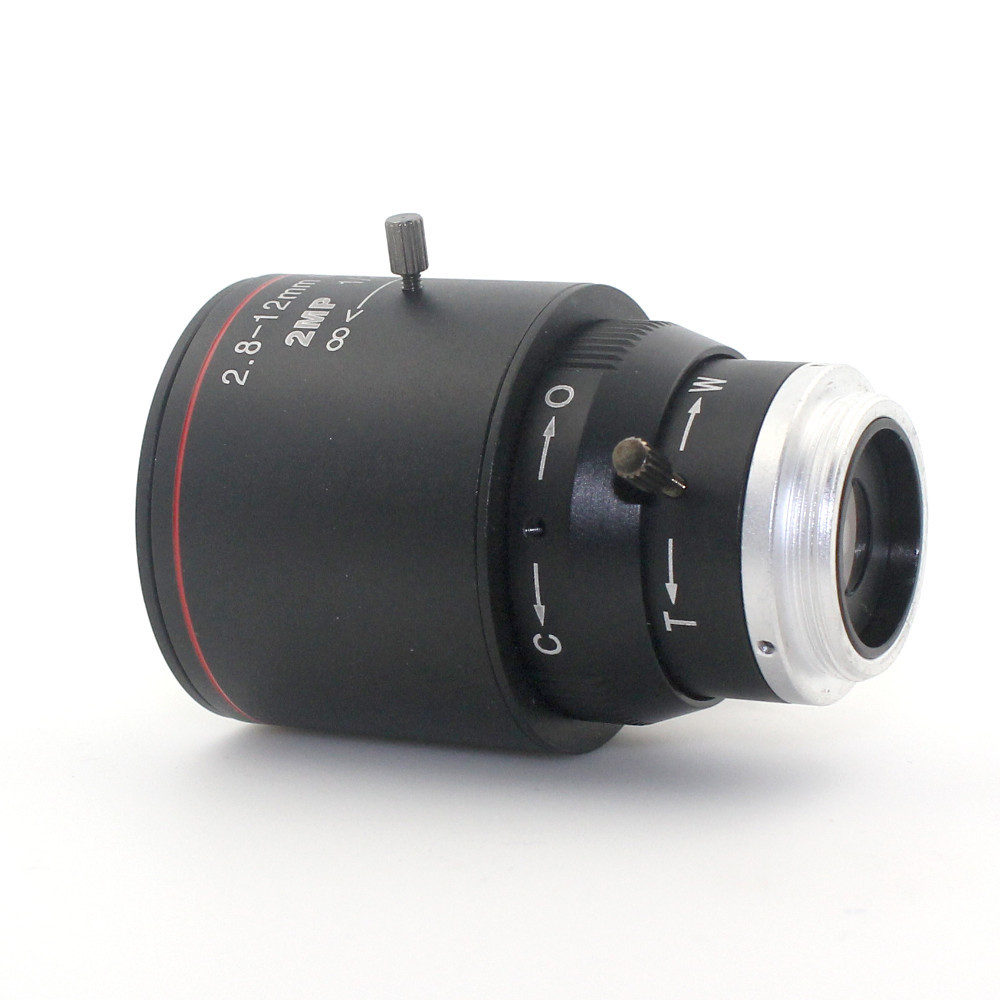

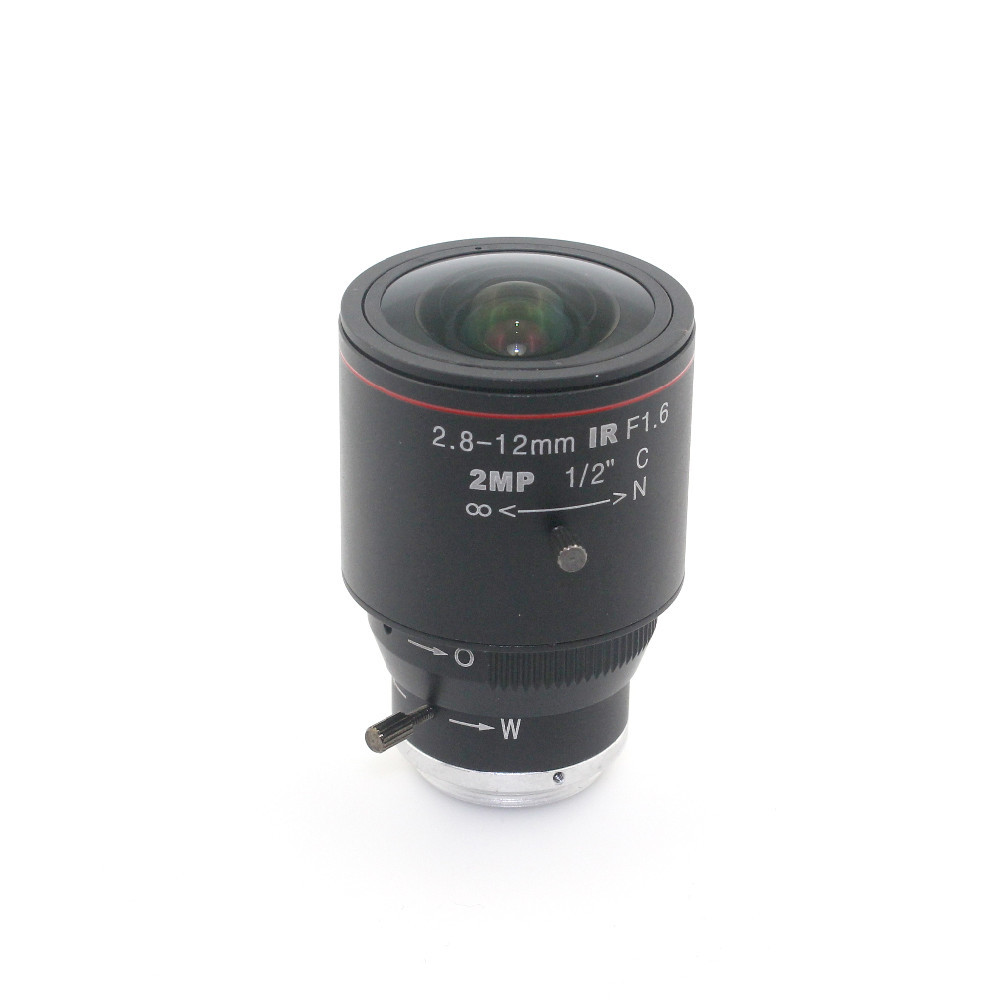

2.0 Mega Pixel Varifocal C Mount Lens 2.8-12mm 1/2" Manual Iris For IP Camera

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C02812VW12-2MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C02812VW12-2MP Mount:: C
Resolution:: 2MP Focal Length:: 2.8-12mm
Image Format:: 1/2″ Aperture:: F1.6
Field Angle(1/3%22):: 98-30.5° Iris: Manual
High Light:

c mount zoom lens


ip camera wide angle lens

2.0 Mega Pixel Varifocal CCTV C Lens 2.8-12mm with 1/2" C Mount Lens for IP Camera


Model MR-C02812VW12-2MP Mount C
Focal Length 2.8-12mm Back Focal Length 17.53mm
Sensor Size 1/2'' Iris Manual
Aperture F1.6 Dimension Φ43*67.5mm
MOD 0.3m Operating Temperature -20°C -- +60°C
Angle of View 98-30.5° MTF 2.0 Mega
Remark Metal Lens





1. 2.0 Megapixel Manual Iris Camera lens, 2.8-12mm F1.6 aperture ITS Road Traffic Security lens.
2. 1/2" Format High quality surveillance camera lens, optical C mount Lens
3. 2.8-12mm focal length 98-30.5 Degree FOV security C lens
4. Industrial Lens for CCTV Security camera, Surveillance Low distortion Lens


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 2.0 Megapixel, IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.

2.0 Mega Pixel Varifocal CCTV C Lens 2.8-12mm with 1/2" C Mount Lens for IP Camera
