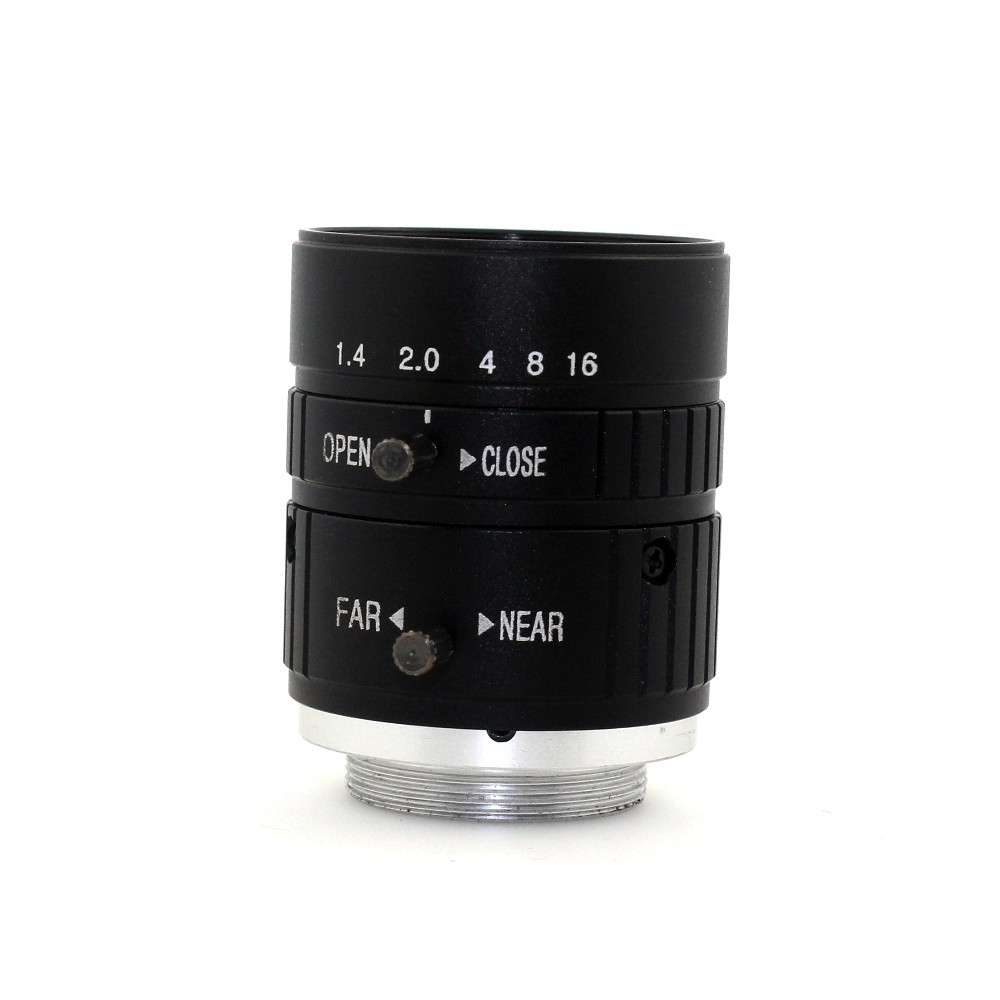

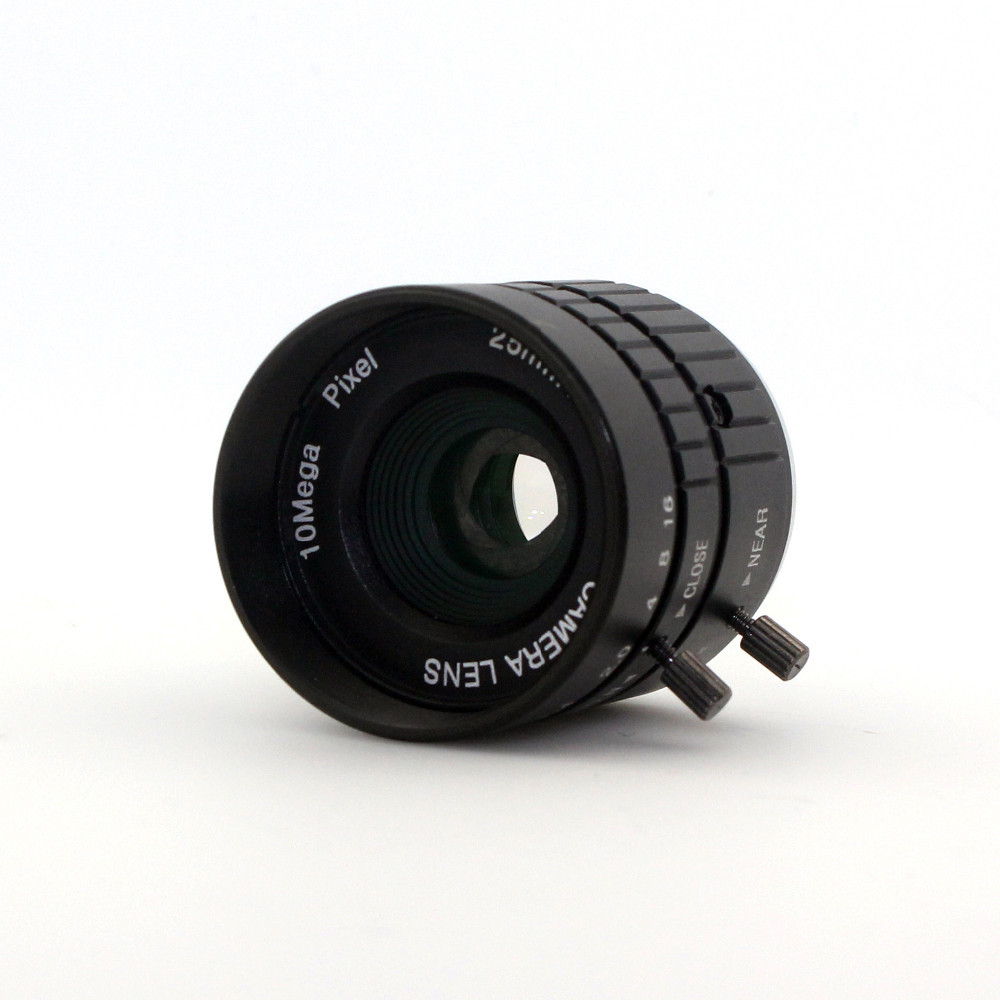

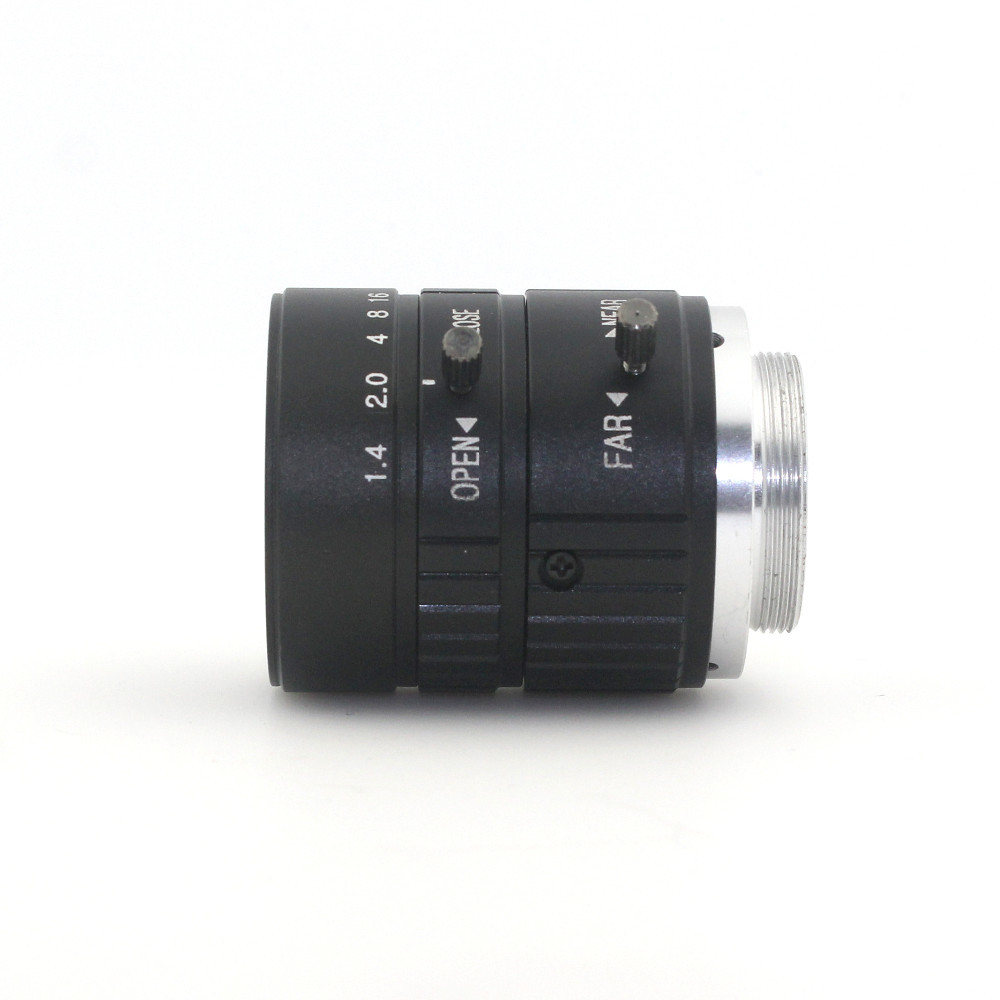

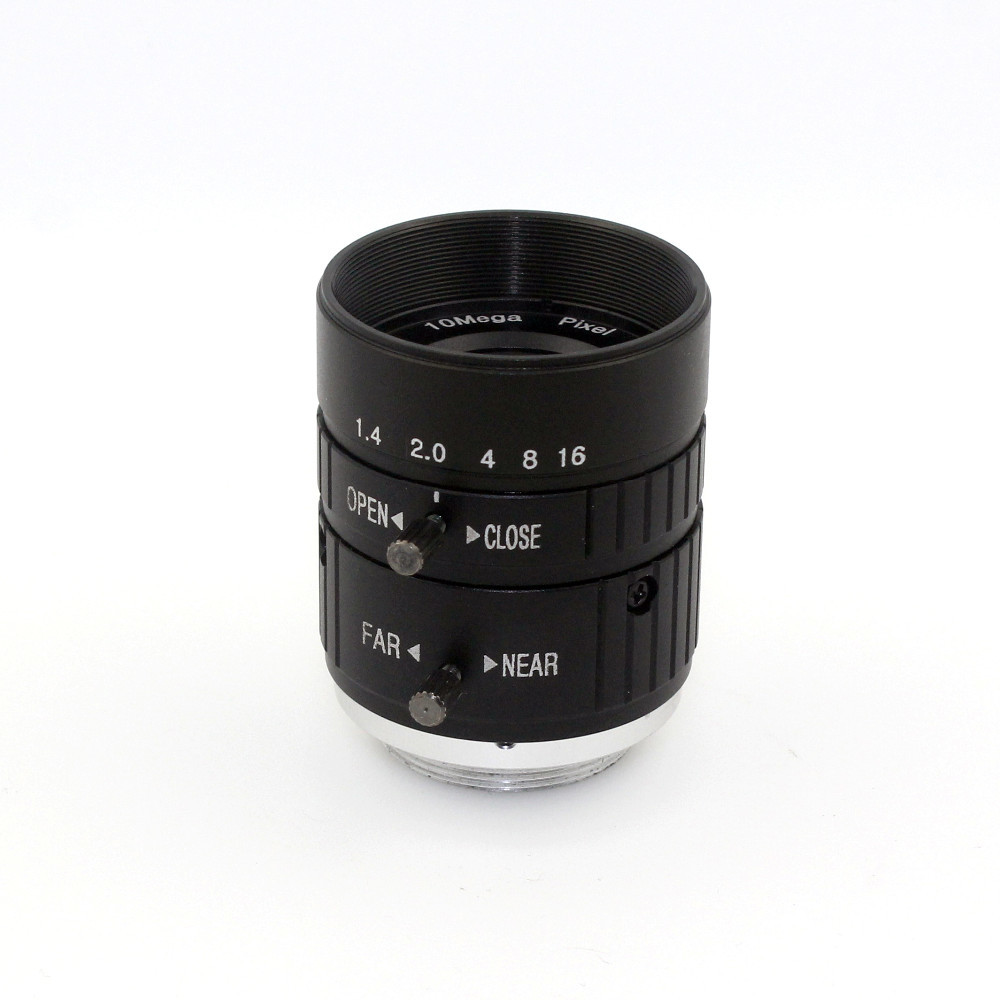

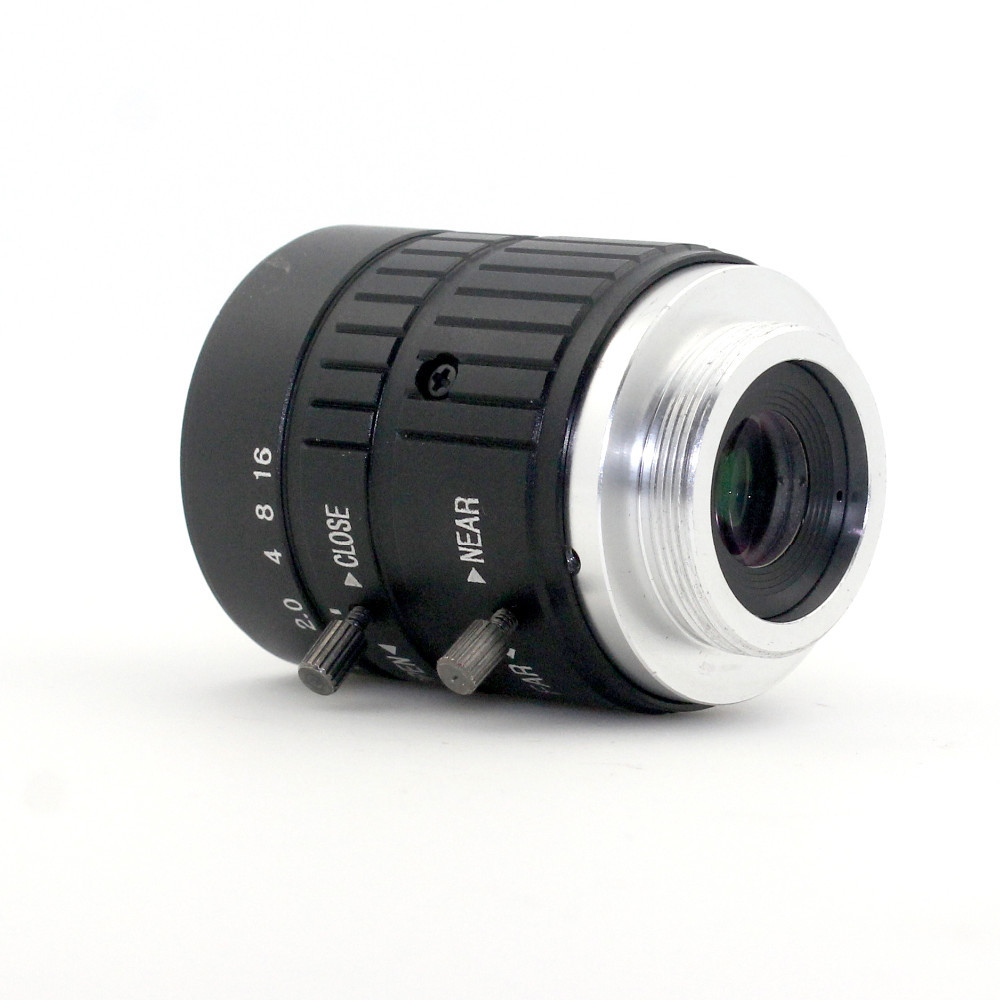

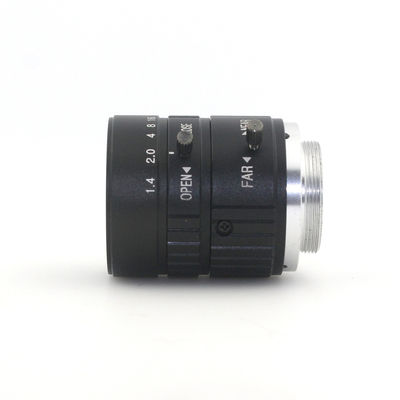

25mm 10 Megapixel HD CCTV Board Lens1/2'' Fixed Manual Iris F1.4 CE FCC Approval

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C2514W12-10MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C2514W12-10MP Mount:: C
Resolution:: 10MP Focal Length:: 25mm
Image Format:: 1/2″ Aperture:: F1.4
Field Angle(1/3%22):: Φ30*33.5mm Iris: Manual
High Light:

ip camera wide angle lens


cctv board lens

25mm 10 megapixel HD CCTV lens C mount 1/2'' fixed manual iris F1.4 industrial camera lens:


Model MR-C2514W12-10MP Mount C
Focal Length 25mm Back Focal Length 12.53mm
Sensor Size 1/2'' Resolution 10.0MP
Aperture F1.4 Dimension Φ30*33.5mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 23.5° Weight 65g
Remark Metal Lens

25mm 10 megapixel HD CCTV lens C mount 1/2'' fixed manual iris F1.4 industrial camera lens


1. 25mm C mount Camera lens, F1.4 mono-focal long distance focal lens.
2. 1/2" Format High quality machine vision camera lens, optical C mount Lens
3. 23.5 Degree of FOV security lens
4. ITS camera lens, Surveillance Intelligent Transportation security lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 10.0 Megapixel,
IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
