Fixed Iris CCTV Camera Lens M12 MTV IR Board 70 Degrees For Security IP Camera

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C0620W125-5MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C0620W125-5MP Mount:: M12*0.5
Focal Length:: 6mm Image Format:: 1/2.5″
Aperture:: F2.0 FOV: 70°
High Light:

ip camera lens


surveillance camera lenses

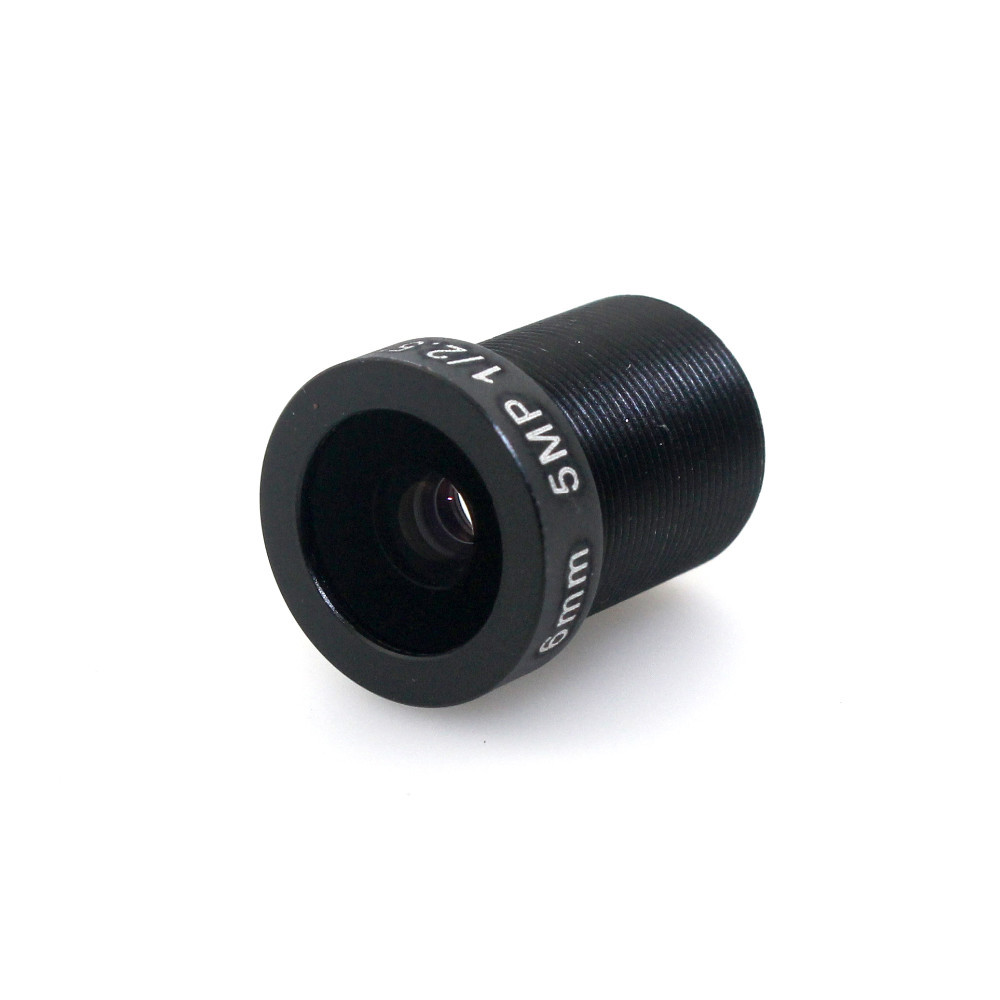

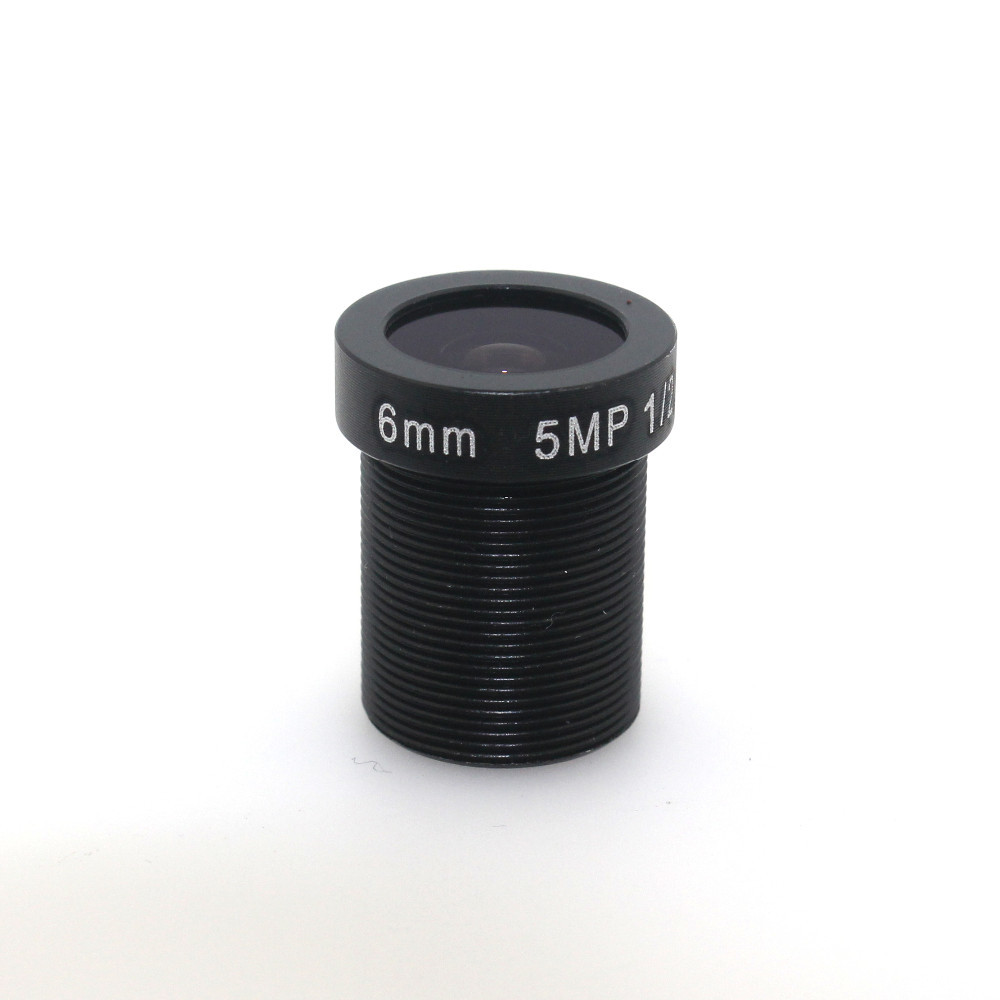

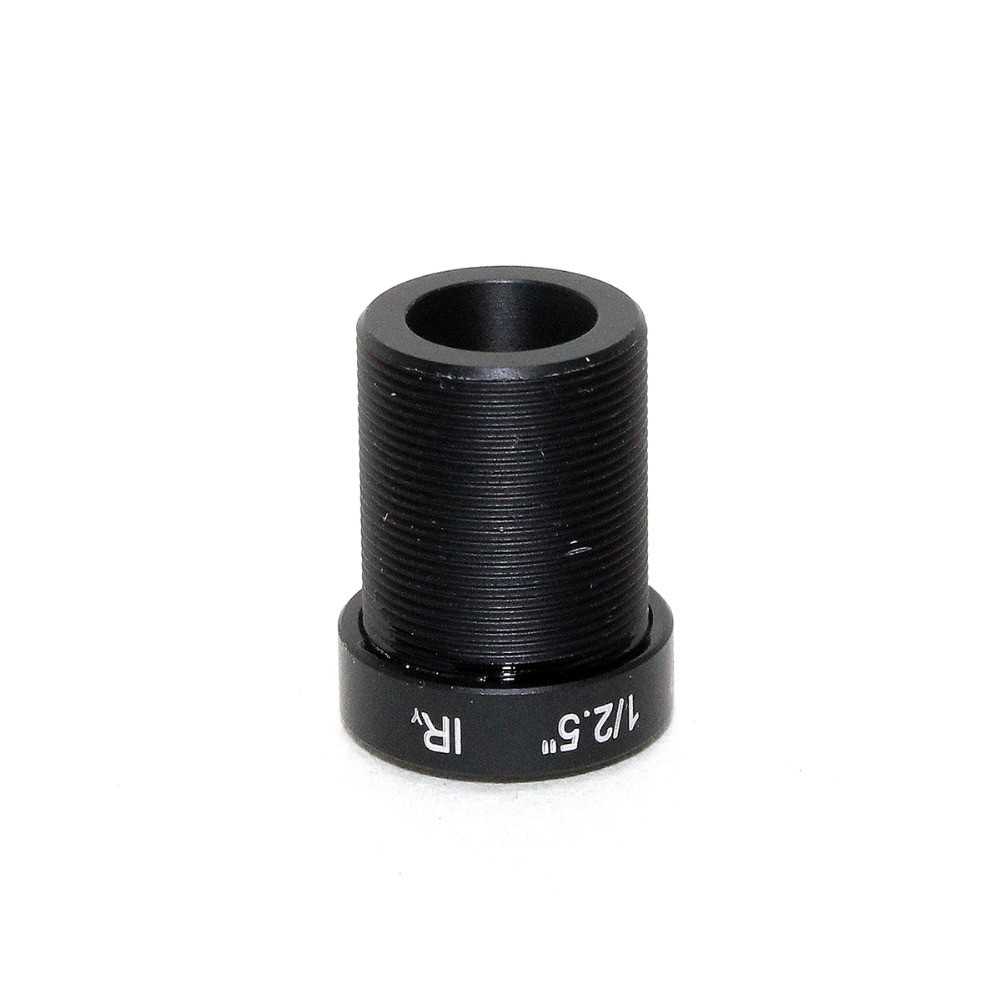

1/2.5" HD 5MP 6mm Fixed Iris M12 MTV IR Board CCTV Lens view 70 degrees for Security IP Camera:



Model MR-C0620W125-5MP Mount M12*0.5
Focal Length 6mm Resolution 5.0MP
Sensor Size 1/2.5'' BFL 8.44mm
Aperture F2.0 Iris Fixed
MOD 0.3m Weight 7g
Angle of View 70° Focus Manual
Remark Metal Lens


1. 6mm m12 Camera lens, F2.0 mono-focal Lens, MTV Board focal lens.
2. 1/2.5" Format High quality cctv camera lens, optical lens , Mini MTV Lens
3. 70 Degree of FOV security lens
4. 5.0MP high resolution camera Lens, Surveillance Lens, 8.44mm BFL Lens

5. The HD 6mm lens could capture above 5.0MP kinds of IP Cameras, and AHD CVI Cameras.


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel, IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.


1/2.5" HD 5MP 6mm Fixed Iris M12 MTV IR Board CCTV Lens view 70 degrees for Security IP Camera
