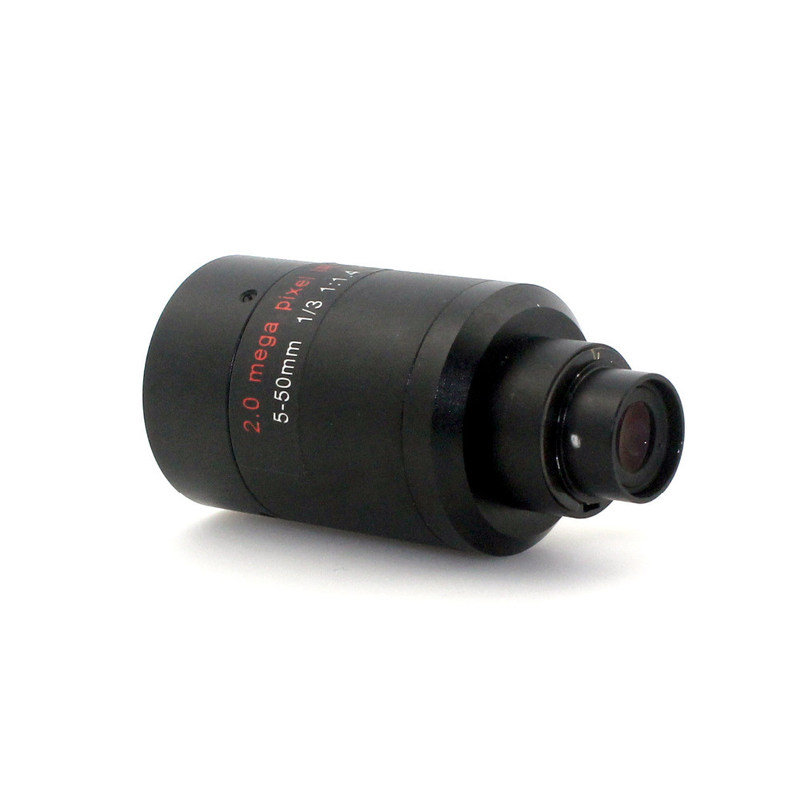

2 Megapixel Varifocal Lens D14 Mount View 100m For Analog 720P 1080P AHD/CVI/TVI/IP CCTV Camera

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C055016WVS-2MP14
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C055016WVS-2MP14 Mount:: M14
Resolution:: 2MP Focal Length:: 5-50mm
Image Format:: 1/3″ Aperture:: F1.6
Field Of View: 50°x5.7°(H) Iris: Manual
MOD: 0.3m
High Light:

ip camera wide angle lens

,

cctv board lens

2Megapixel 5-50mm Varifocal Lens D14 Mount View About 100m For Analog/720P/1080P AHD/CVI/TVI/IP CCTV Camera:



Specification
Model MR-C055016WVS-2MP14 Mount M14
Focal Length 5-50mm BFL 5.12mm
Sensor Size 1/3'' Iris Manual
Aperture F1.6 Weight 59g
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 50°x5.7°(H) Dimension φ30*60.5mm
Application CCTV Security Cameras



Features:

1.lens meterial is glass and metal,no plastic.
2.lens can be used for high temperature and cold environment(-20 to 60).
3.lens has 2MP resolution,1/3 inch,it can be supported by 720P/1080P sensor.
4.the japanese optorun coating machine for muti-layer coating has excellent transmittance,effectively eliminate stay light and halo features.
5.lens has very wide focal length 5mm to 50mm.High precision machining and optical design ensures that every focal length can get a clear image.
6.it is D14 mount,suitable for diameter 14mm's holder.
7.it can be used in long distance condition,about 100m.
8.lens has IR Function,it can be used in the night.
9.lens has very precision BFL,It's ensure that no loss of focal length in the night.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are 2.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: 5-50mm D14 2MP Lens



2Megapixel 5-50mm Varifocal Lens D14 Mount View About 100m For Analog/720P/1080P AHD/CVI/TVI/IP CCTV Camera
