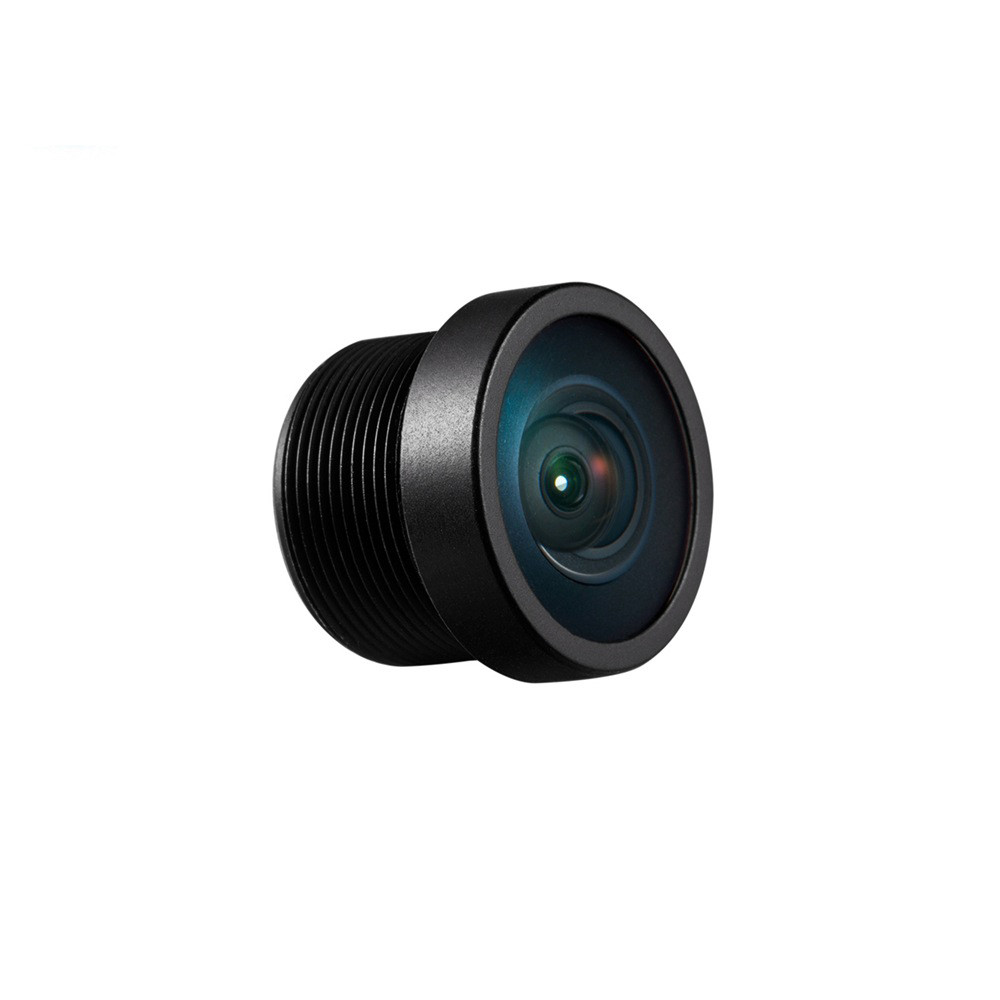

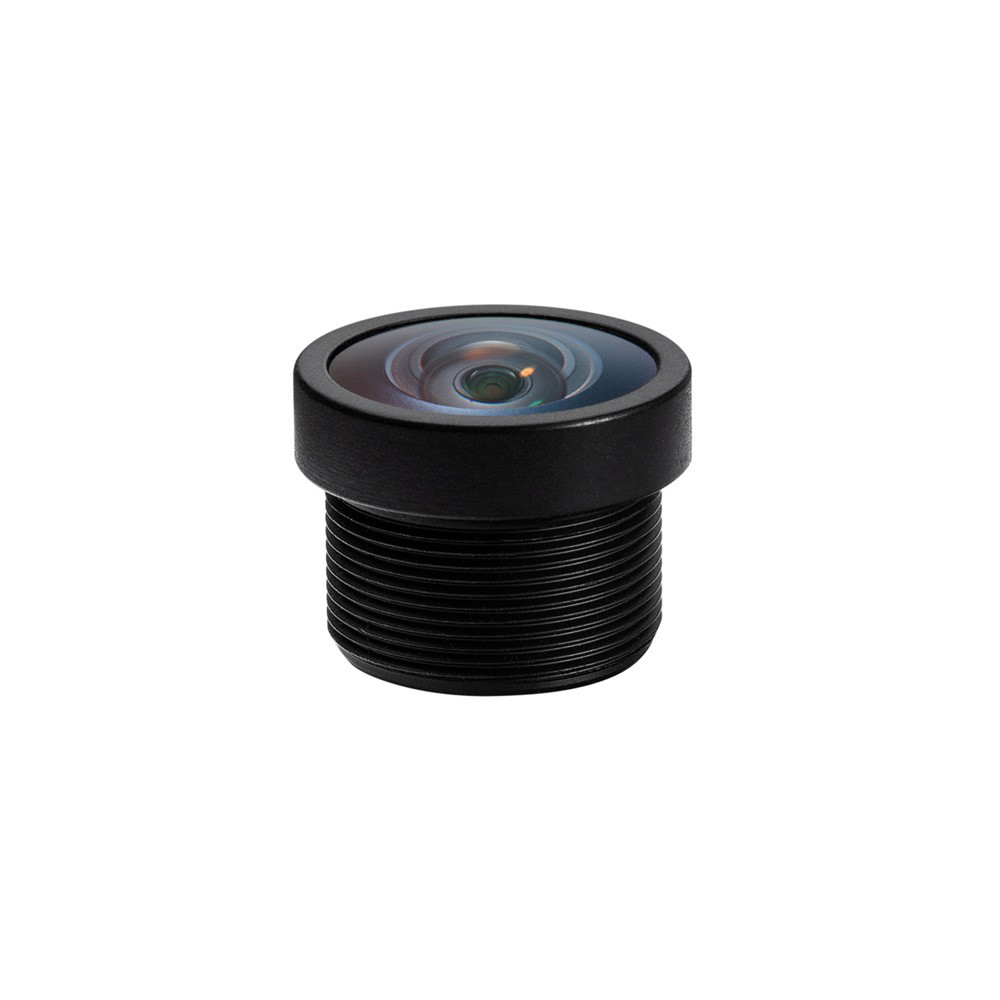

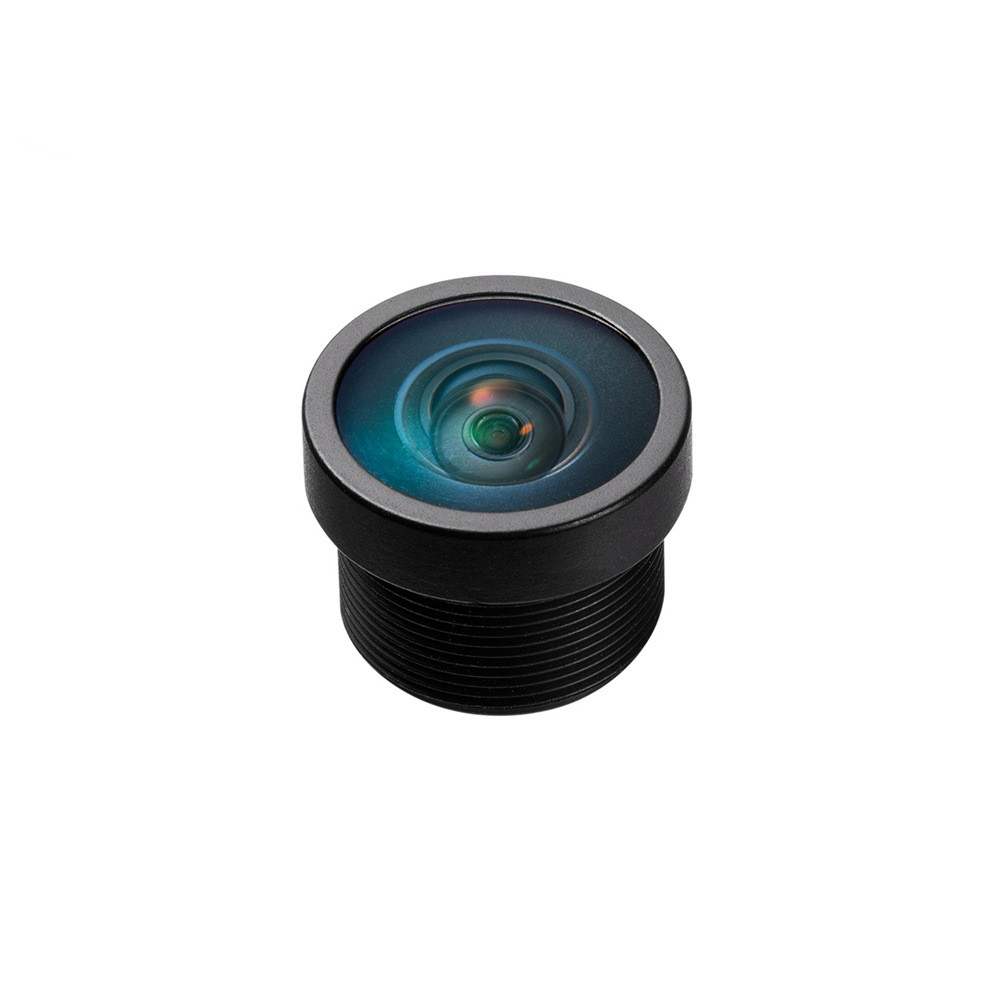

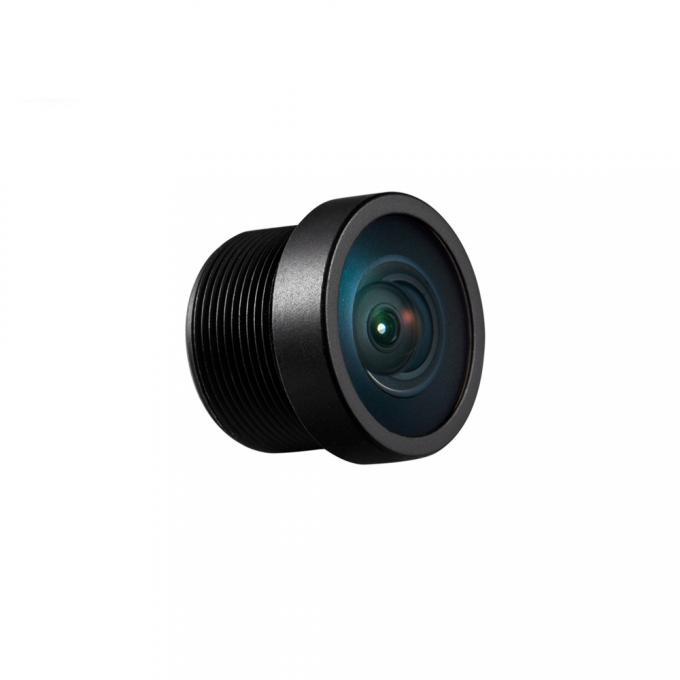

Front Mounted Dash Cam Lens Infrared Light Vision CCTV Surveillance Camera Lenses

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-H01126KHS-9090
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-H01126KHS-9090 Mount:: M12*0.5
TTL: 12.86mm Focal Length:: 1.1mm
Image Format:: 1/4″ Aperture:: F2.6
DFOV: 170°*140°*115° Wavelength: 400-700nm(color)
High Light:

automotive lens

,

car dvr dual lens

Vehicle mount lens φ4.7 1.1mm 1/4 size DFOV 170 Deg TTL 12.86mm M12 Front-mounted Rear-View Vehicle Lens:



Specification
Model MR-H01126KHS-9090 Mount M12*0.5
Focal Length 1.1mm BFL 2.3mm
Sensor Size 1/4'' Distortion -80%
Aperture F2.6 FBL 1.53mm
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 170°*140°*115° Components 2G+2P+IR
Application Front-mounted Rear-View Vehicle Lens



Features:
1. Car Camera lens, 1.1mm F2.6 Vehicle rear-view Lens, waterproof M12 mount lens.
2. 1/4" Format High quality cctv camera lens, optical lens , Mini MTV Lens
3. 1.1mm focal length 170 Degree of DFOV security lens
4. Wide angle Lens for Car camera, Surveillance Lens, Low distortion Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: Car Camera Lens



Vehicle mount lens φ4.7 1.1mm 1/4 size DFOV 170 Deg TTL 12.86mm M8 Front-mounted Rear-View Vehicle Lens
