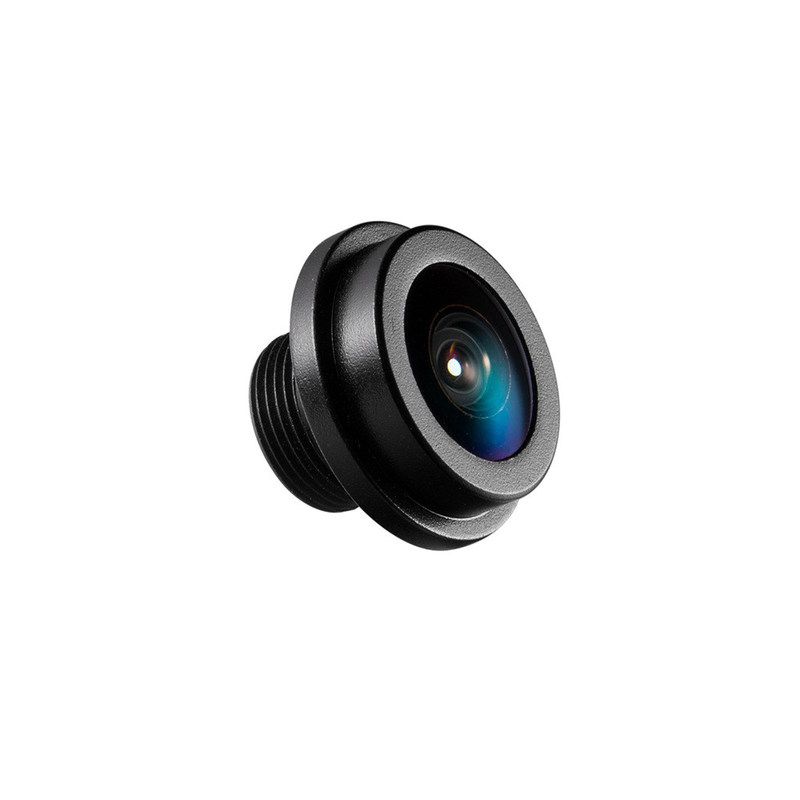

Mini MTV Board Panoramic Camera Lens Outdoor M8 Mount Quick Focusing

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-H013225KHS-8077
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-H013225KHS-8077 Mount:: M8*0.5
TTL: 12.19mm Focal Length:: 1.3mm
Image Format:: 1/3″ Aperture:: F2.25
DFOV: 190° Wavelength: 400-700nm(color)
High Light:

car dvr dual lens


dash cam lens

Vehicle mount lens 1.3mm 1/3 size DFOV 190 Deg TTL 12.19mm M8 vehicle rear view panoramic lens:


Model MR-H013225KHS-8077 Mount M8*0.5
Focal Length 1.3mm BFL 3.0mm
Sensor Size 1/3'' Distortion -90%
Aperture F2.4 FBL 2.3mm
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 180°*130° Components 6g+IR
Application vehicle rear view panoramic lens


1. Car Camera lens, 1.3mm F2.25 Vehicle rear-view Lens, waterproof M8 mount lens.
2. 1/3" Format High quality cctv camera lens, optical lens , Mini MTV Lens
3. 1.3mm focal length 190 Degree of DFOV security lens
4. Wide angle Lens for Car camera, Surveillance Lens, Low distortion Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are Megapixel, IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.


Tag: Car Camera Lens


Vehicle mount lens 1.3mm 1/4 size DFOV 190 Deg TTL 12.19mm M8 vehicle rear view panoramic lens
