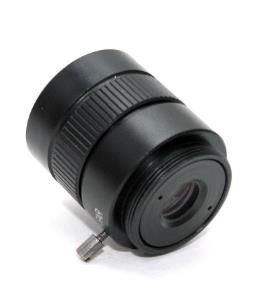

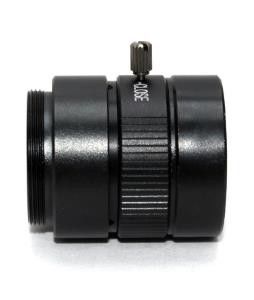

Industrial CCTV Box Camera Lens 8mm 1/2" 3 Megapixel Manual Fixed CS Mount

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR0812-3MPC
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR0812-3MPC Focal Length:: 8mm
Image Format:: 1/2″ Aperture:: F1.2
HFOV: 48° Iris: Manual
Focus: Manual Zoom: Fixed
High Light:

cctv board lens


ip camera wide angle lens

8mm lens 1/2" 3 Megapixel Lens Manual Fixed Lens CS Mount Industrial lens For cctv camera box:



Model MR0812-3MPC Mount CS mount
Focal Length 8mm Iris Manual
Sensor Size 1/2" Weight 58g
Aperture F1.2 Dimension Φ30x34mm
MOD 0.2m Resolution 3MP
HFOV 48° BFL 7.53mm
Application Industrial machine vision lens



1. 3 megapixel HD lens,8mm F1.2 Manual Iris Fixed focal length Lens Machine Vision Lens
2. 1/2" Format High quality Fixed focal length cctv lens,optical lens ,CS Mount Lens
3. 8mm focal length Manual Iris Lens,security lens
4. Low distortion Lens for box camera,Surveillance Lens, Industrial Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 3.0 Megapixel.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.


Tag: Industrial Lens, Machine Vision Lens

8mm lens 1/2" 3 Megapixel Lens Manual Fixed Lens CS Mount Industrial lens For cctv camera box
