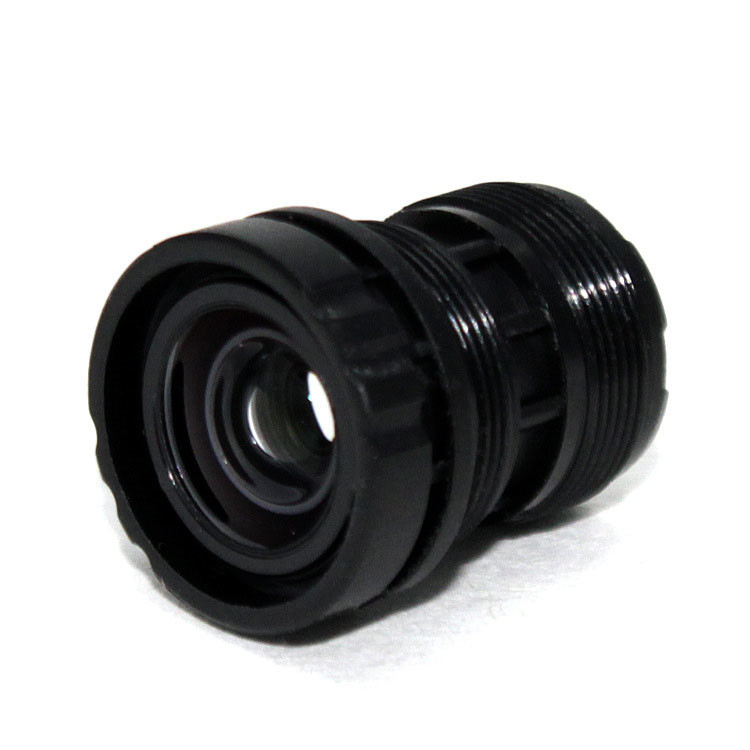

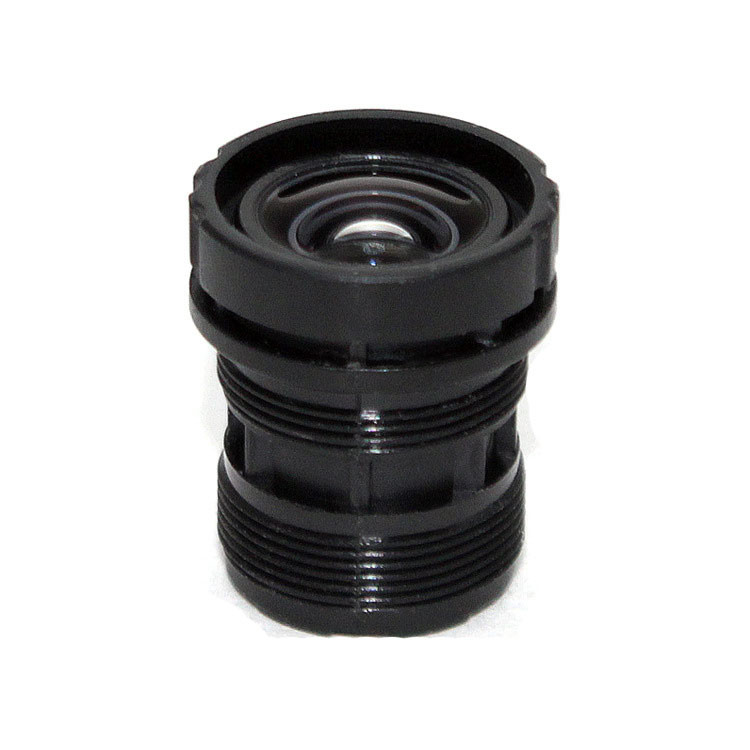

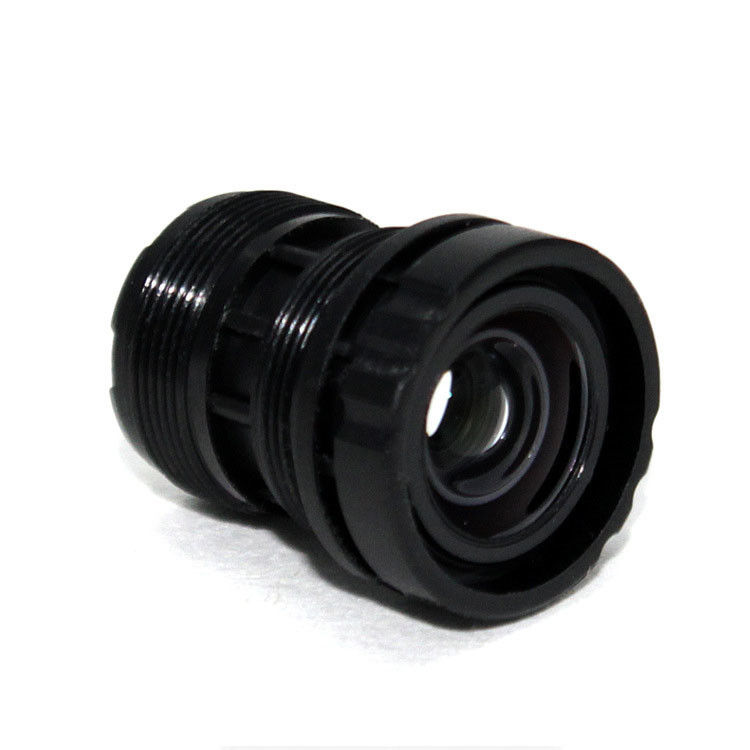

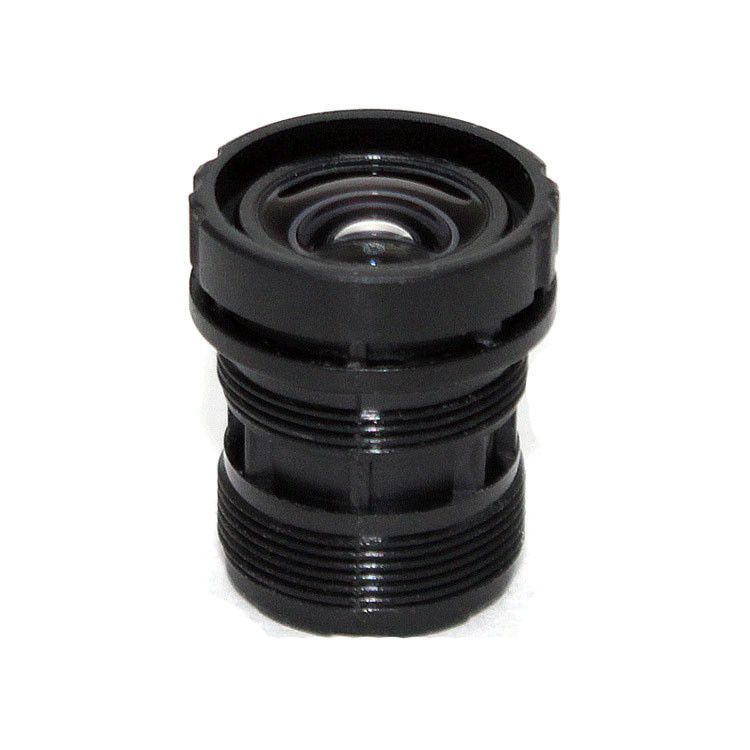

Day Night Confocal Ir Cut Lens 6mm High Definition Long Distance Focal

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C0620WYT-1028P
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C0620WYT-1028P Mount:: M12*0.5
Focal Length:: 6mm Image Format:: 1/2.7″
Aperture:: F2.0 FOV: 53°
High Light:

board camera lens

,

security camera lens

Day-night confocal 6mm HD lens manufacturer M12 interface High Definition Network Lens Security Camera Lens:



Specification
Model MR-C0620WYT-1028P Mount M12*0.5
Focal Length 6mm Dimension 14*16.6mm
Sensor Size 1/2.7'' Resolution 2MP, 4MP, 6MP
Aperture F2.0 Components 3G1P
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 53° IR CUT Optional
Remark Network Camera Lens



Features:
1. 6mm m12 Camera lens, F2.0 mono-focal Lens, long distance focal lens.
2. 1/2.7" Format High quality cctv camera lens, optical lens , Mini MTV Lens
3. 53 Degree of FOV security lens
4. HD Lens for CCTV Network camera, Surveillance Lens, S mount Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 2.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: Day night Lens



Day-night confocal 6mm HD lens manufacturer M12 interface High Definition Network Lens Security Camera Lens



1. Glass-plastic mixed lenses: the lens interior mostly uses glass lenses, plastic aspheric lenses mixed form, effective correction of aberration;



2. Low-dispersion glass materials: low-dispersion materials are used to effectively reduce dispersion. The effect of correcting the axial chromatic aberration at telephoto end and the vertical chromatic aberration at wide angle end is particularly significant.



3. Temperature drift control: Using optical materials with low thermal expansion coefficient, the lens can obtain clear pictures without re-focusing under different temperature environments.



4. Flatness of image surface: Excellent optical design technology is used to achieve high pixel and high contrast uniformly from the center to the periphery of the image.



5. Day-night confocal: Both visible and near-infrared light have almost no change in the focal plane, so that the image can get a clear effect in day and night.
