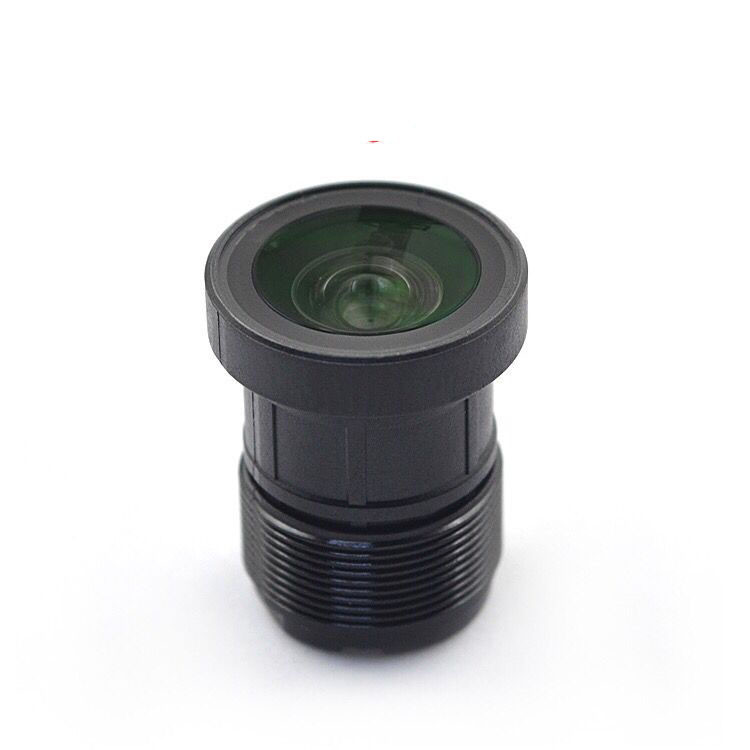

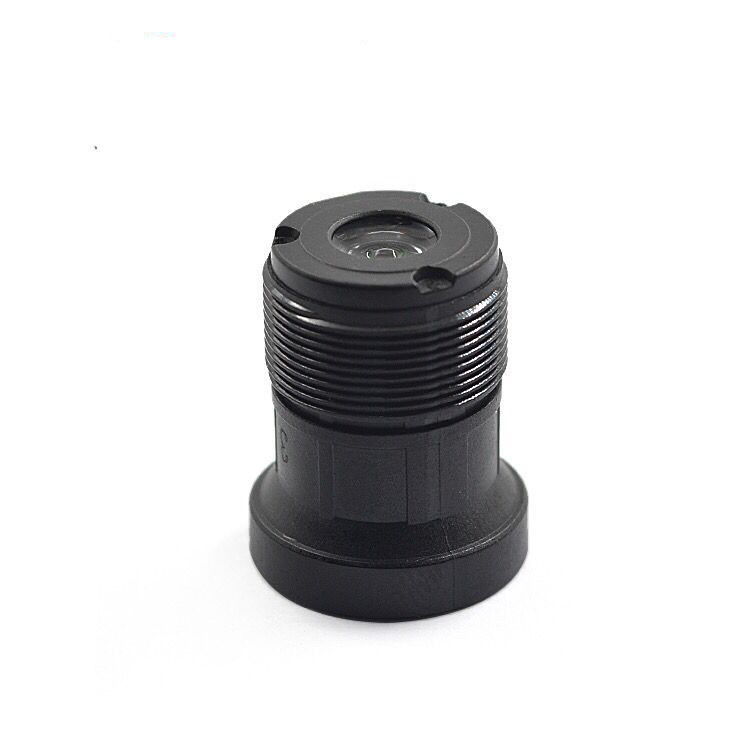

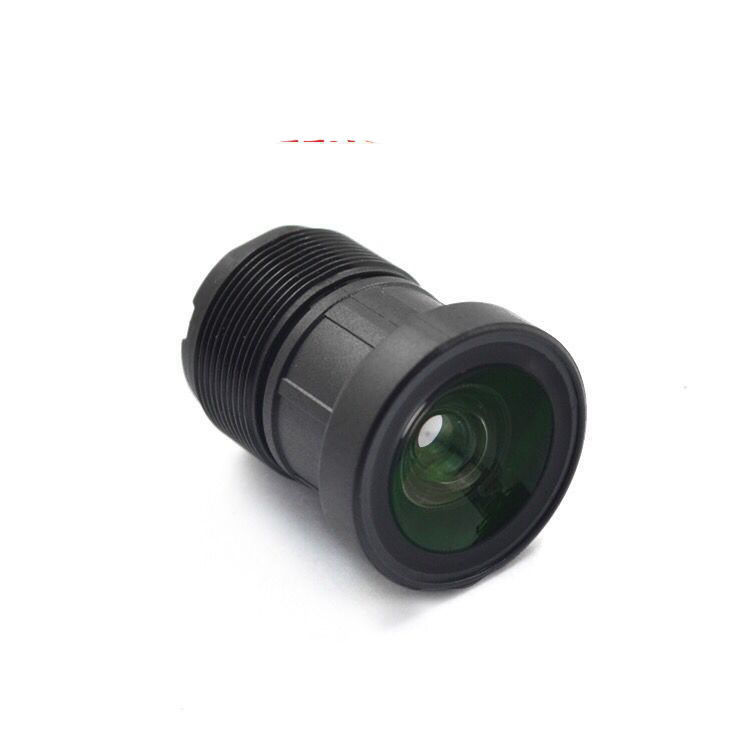

Single Board 1G3P M12 CCTV Lens 4mm 3 Megapixel High Definition Camera Lenses

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C0418WBL-1G3P
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C0418WBL-1G3P Mount:: M12*0.5
Focal Length:: 4mm Image Format:: 1/2.7″
Aperture:: F1.6 FOV: 109°
High Light:

security camera lens


ip camera lens

4mm 3MP Single Board Lens 1G3P High Definition Network Camera Lens:


Model MR-C0418WBL-1G3P Mount M12*0.5
Focal Length 4mm Iris Fixed
Sensor Size 1/2.7'' Resolution 3MP
Aperture F1.6 Weight 5g
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 109°
Remark IP Camera Lens


1. 4mm m12 Camera lens, F1.6 mono-focal Lens, long distance focal lens.
2. 1/2.7" Format High quality cctv camera lens, optical lens , Mini MTV Lens
3. 109 Degree of FOV security lens
4. IP Network Lens for IP camera, Surveillance Lens, security CCTV Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 3.0 Megapixel, IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.


Tag: 3.0 Megapixel Lens


4mm 3MP Single Board Lens 1G3P High Definition Network Camera Lens
