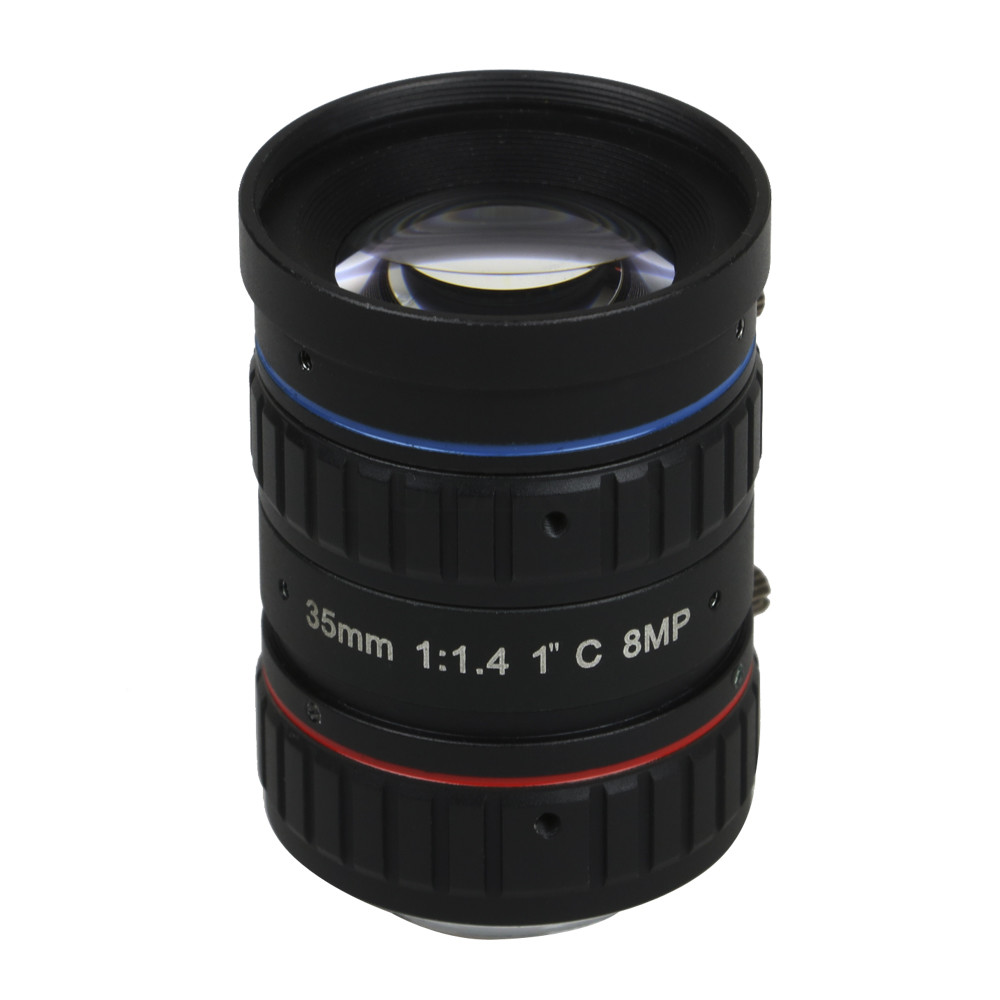

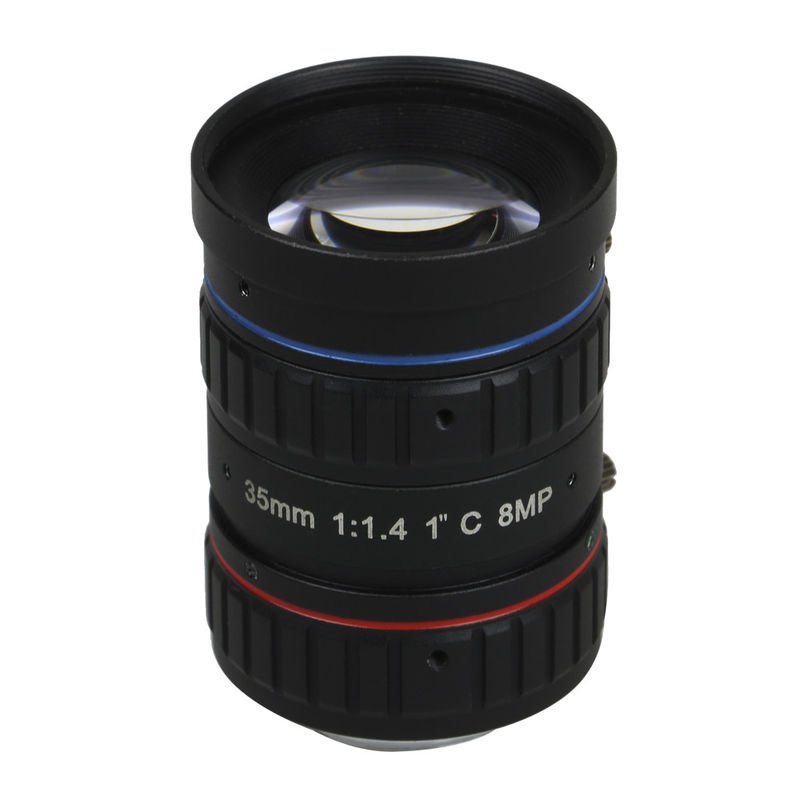

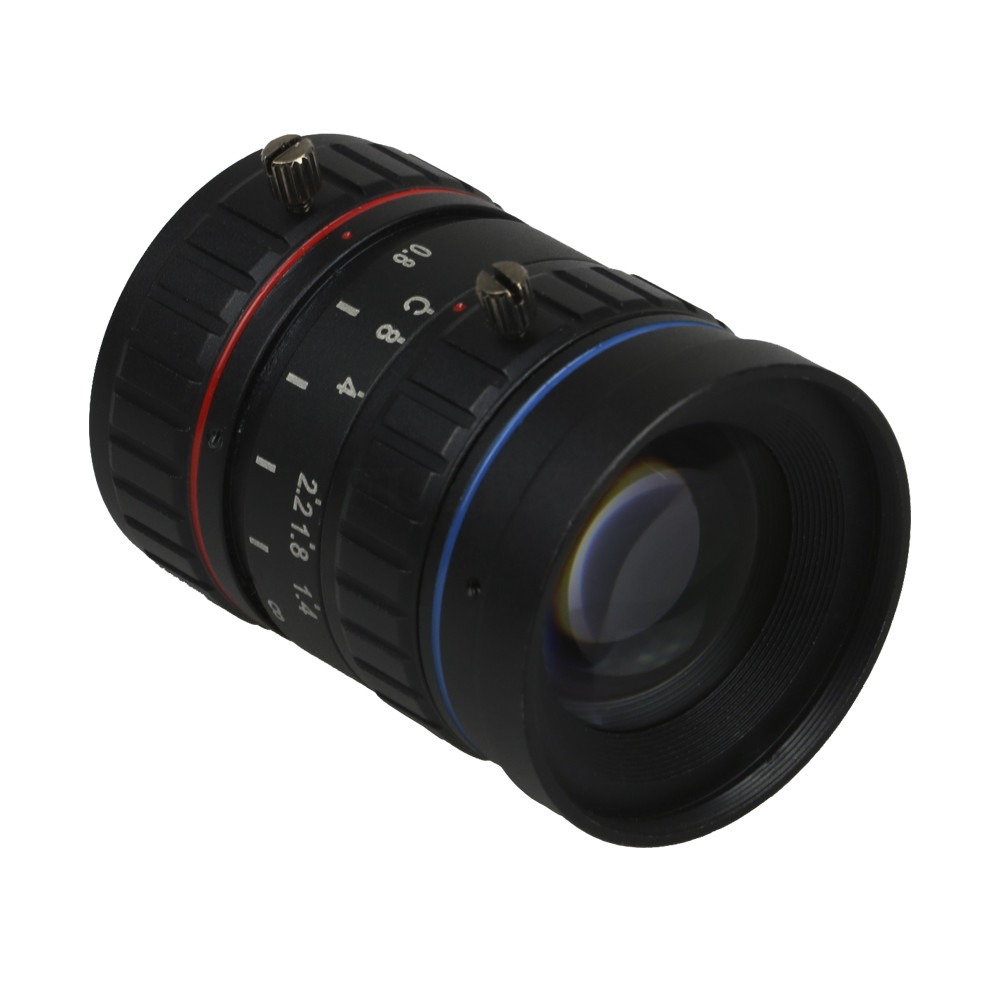

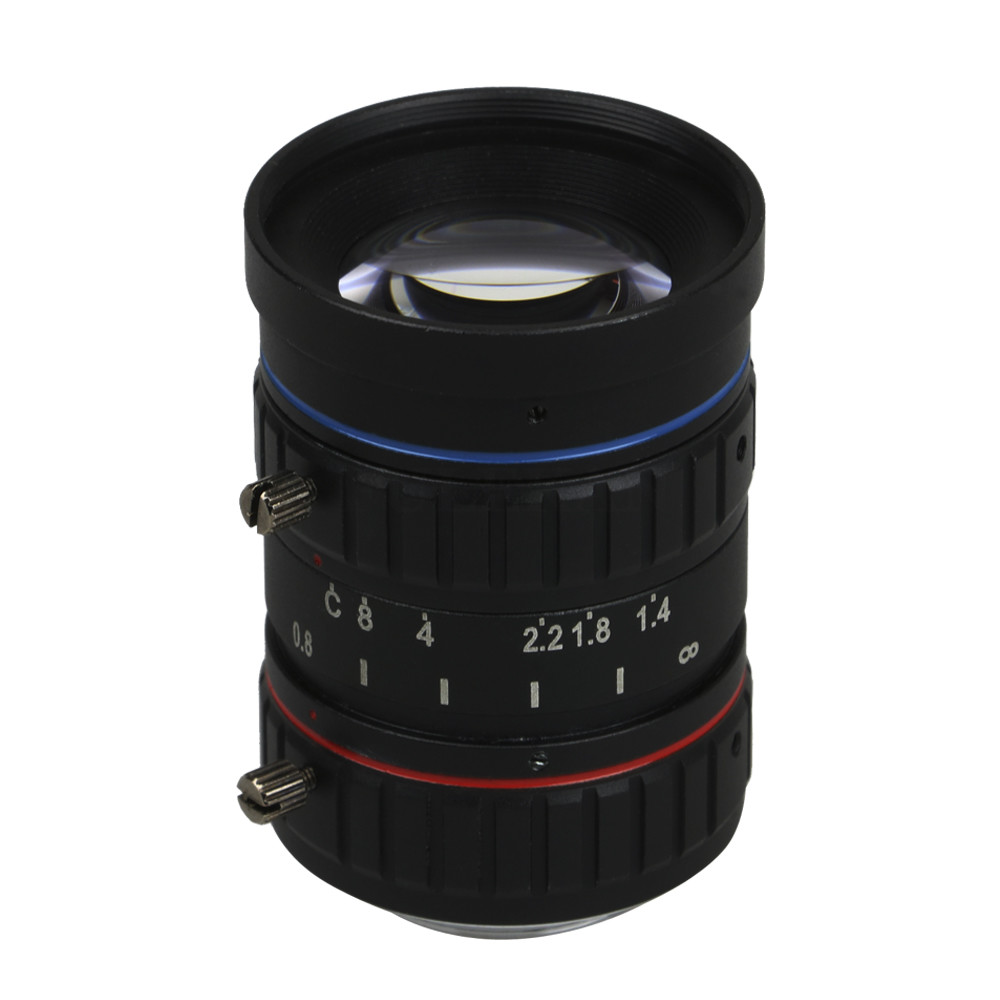

Traffic Camera HD Machine Vision Lens 35mm F1.4 Electronic Police Use

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-FC3514ST-8MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-FC3514ST-8MP Mount:: C
Resolution:: 8MP Focal Length:: 35mm
Image Format:: 1″ Aperture:: F1.4
Field Angle(1/3%22):: 26°x20.7°x15.5°(1") / 17.8°x14.2°x10.7°(2/3") Iris: Manual
High Light:

c mount zoom lens

,

ip camera wide angle lens

1 inch 8MP ITS Lens 35mm Ultra Starlight F1.4 C Mount For Electronic Police or Traffic Camera



Specification

Model MR-FC3514ST-8MP Mount C mount
Focal Length 35mm Resolution 8.0MP
Sensor Size 1" Weight 147g

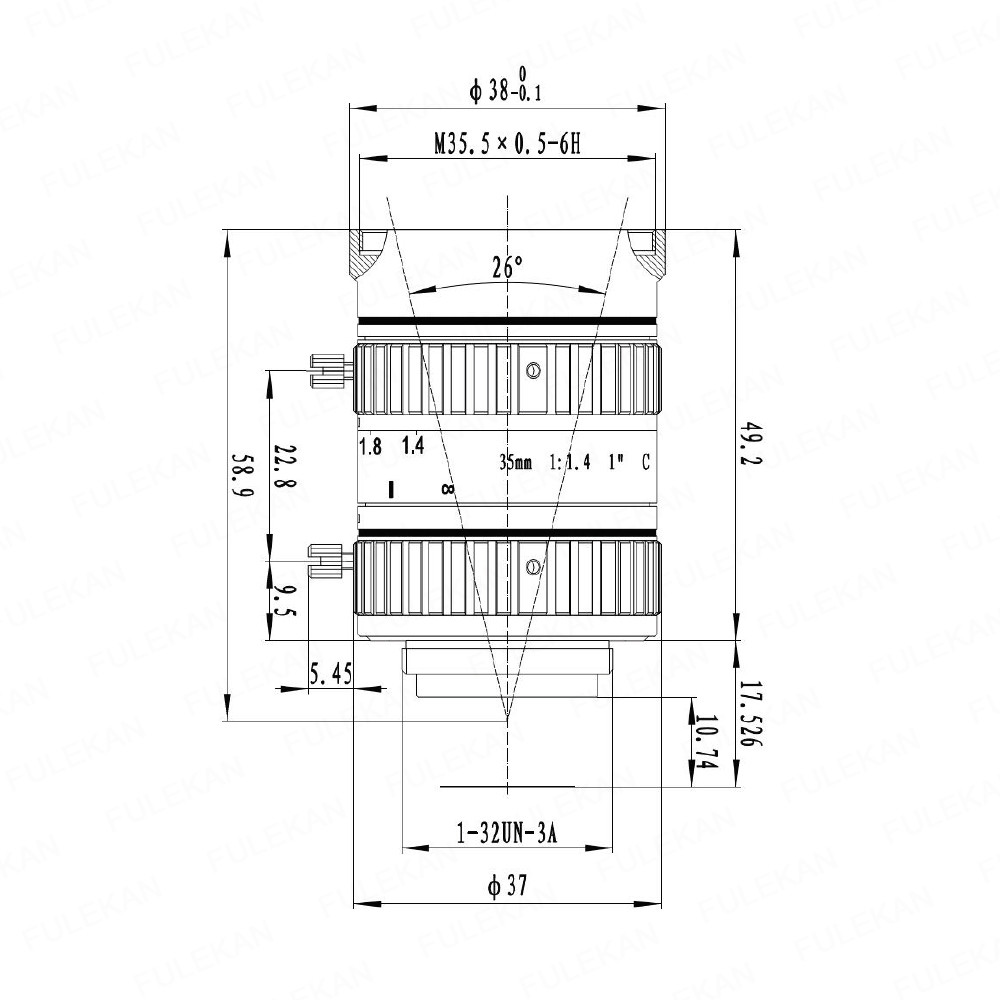

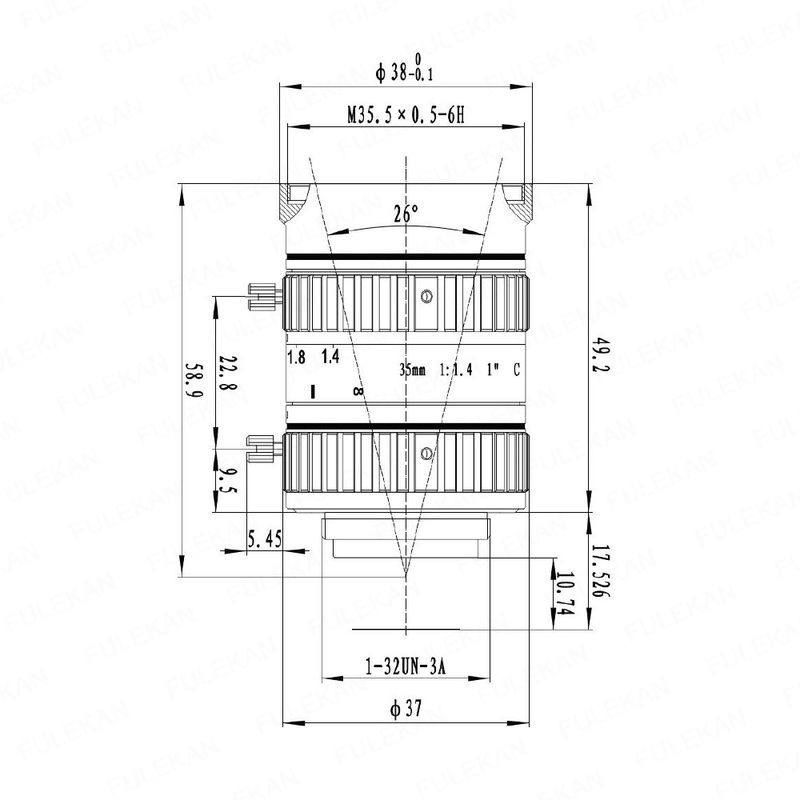

Aperture F1.4 Dimension Φ38x56mm
MOD 0.5m Distortion -3.8%(1")
HFOV 26°x20.7°x15.5°(1") / 17.8°x14.2°x10.7°(2/3") BFL 12.5mm
Application ITS Camera Lens



Features:
1. 8.0 megapixel HD lens,35mm F1.4 C mount Lens, manual iris manual focus lens.
2. 1" Format High quality manual iris cctv lens, Industrial machine vision lens ,High resolution Camera Lens
3. 35mm focal length, 26 Degree of DFOV security lens
4. Machine vision Lens for industrial camera,Surveillance Lens, ITS Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 8.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
