1080P Box Camera Megapixel Varifocal Lens 4MP 5MP Fixed Iris Vandal Proof

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-02812VS
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-02812VS Mount:: M12
Focal Length:: 2.8-12mm Image Format:: 1/2.7″
Aperture:: F1.4 Field Angle(1/3%22):: 90 - 28 Deg
Iris: Fixed
High Light:

hd camera lens


digital varifocal lenses

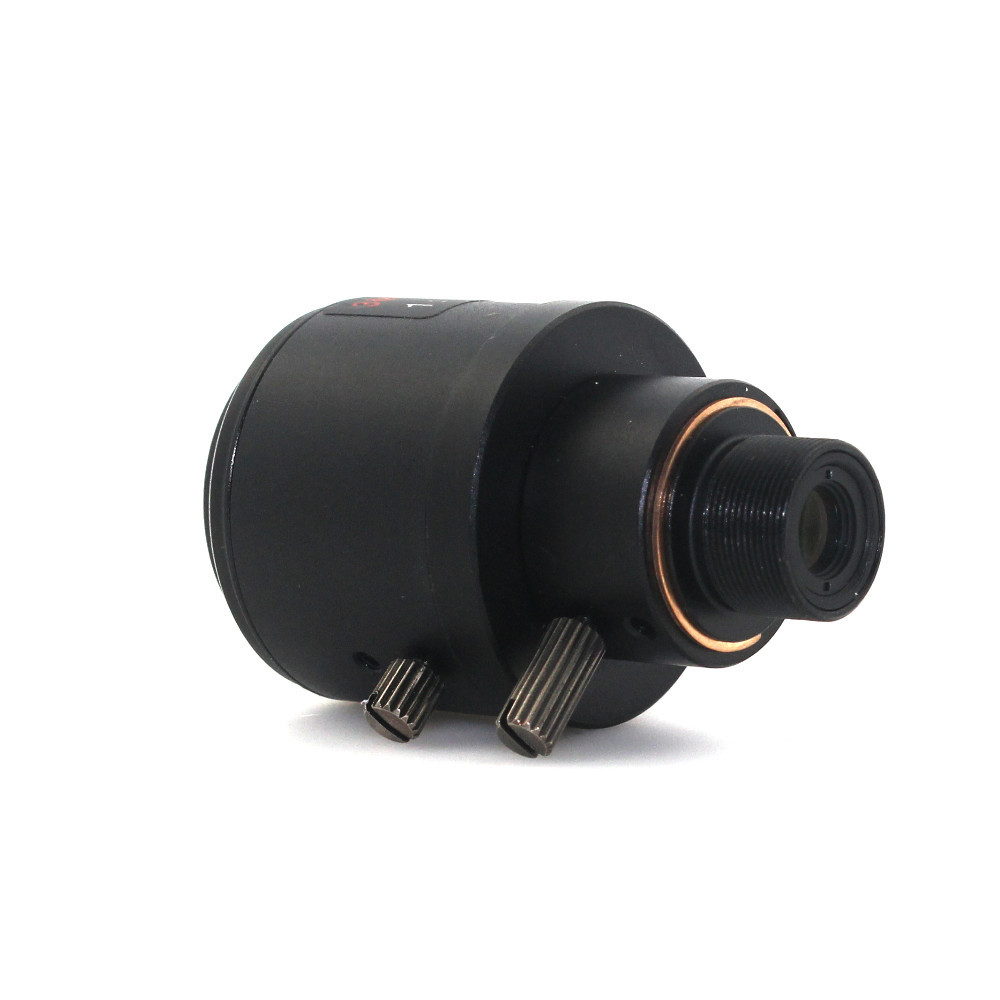

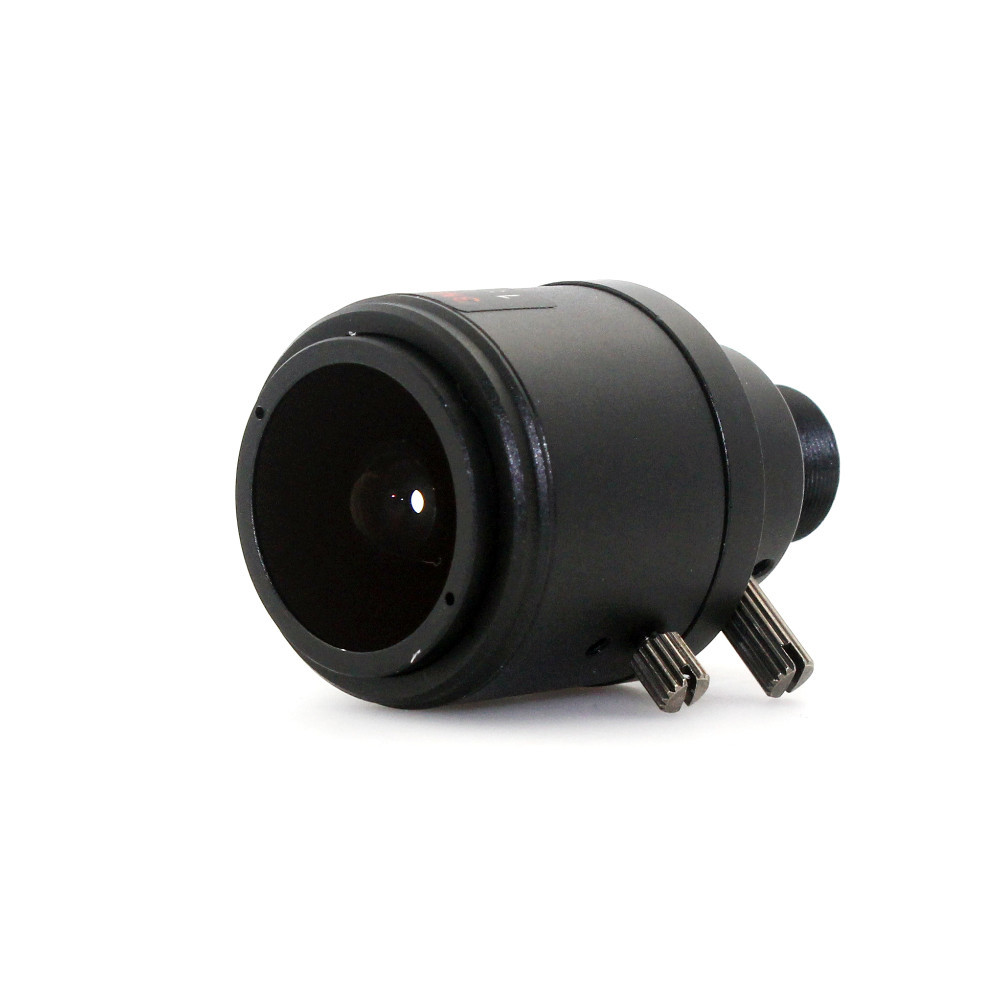

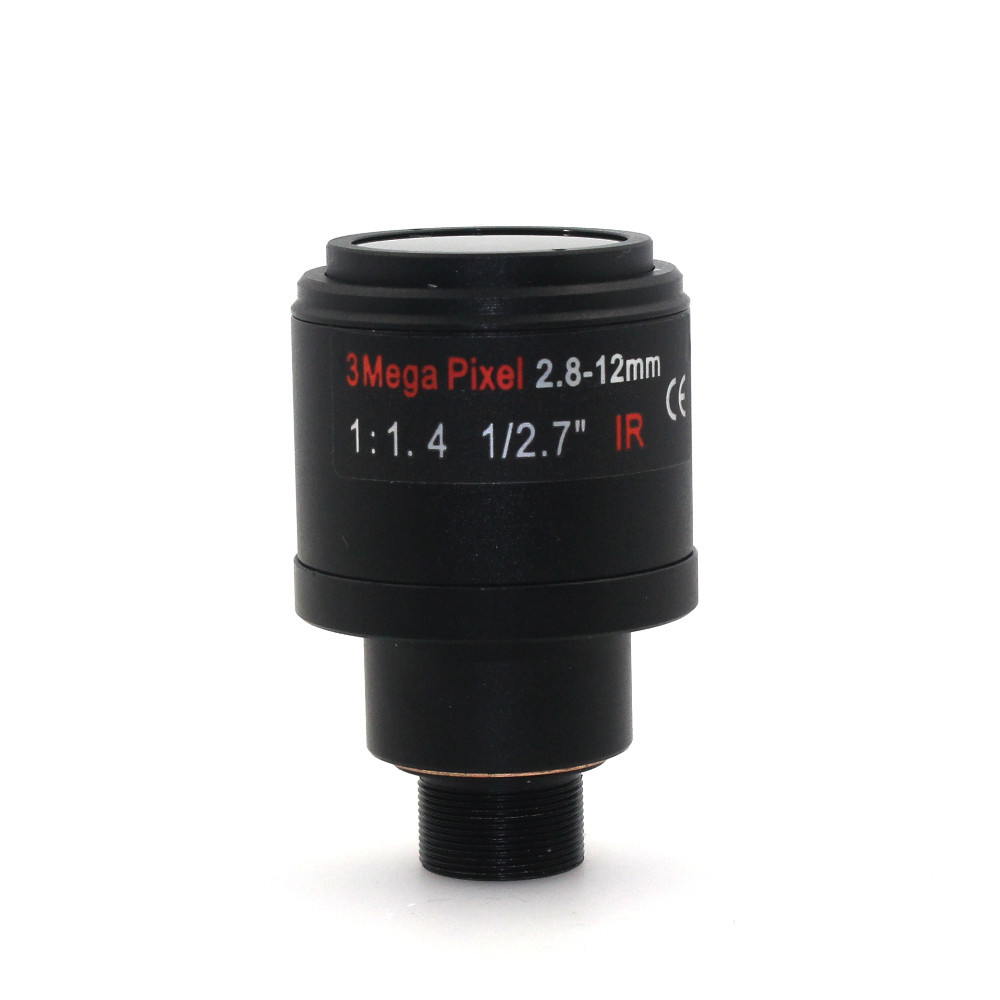

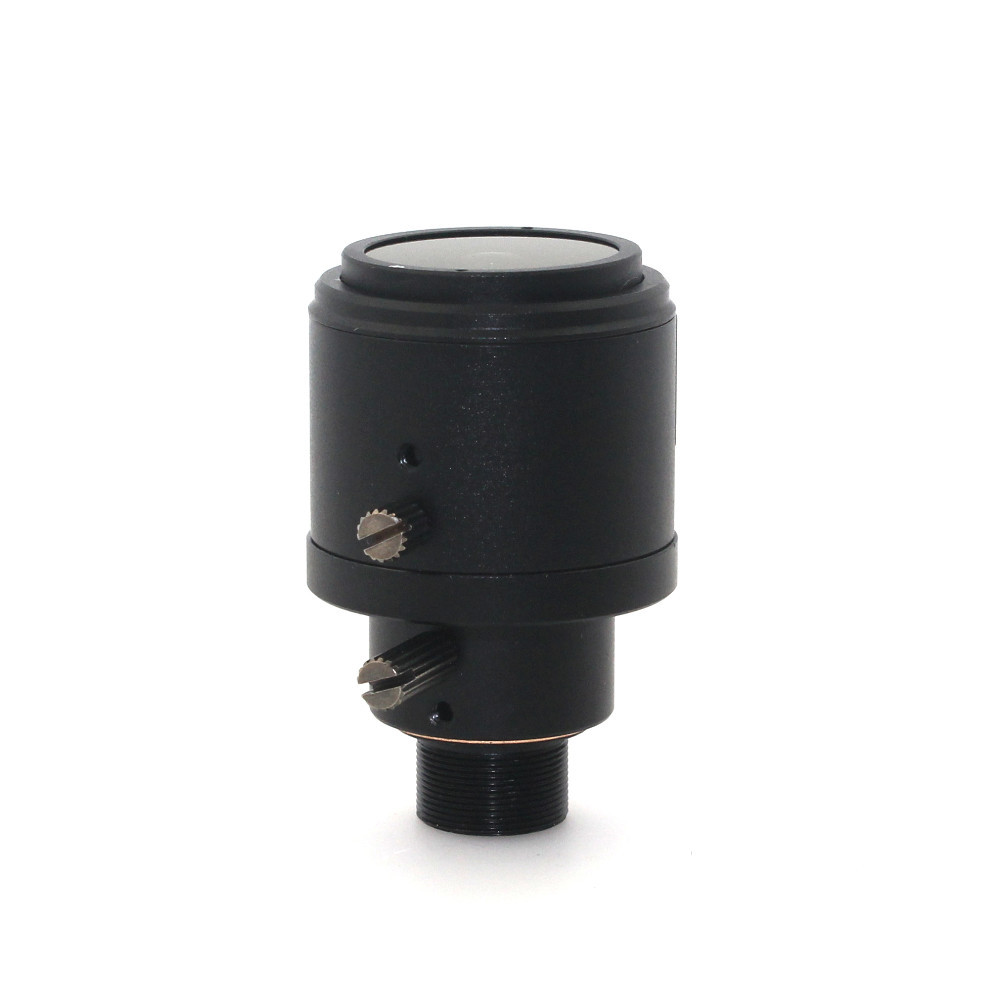

5Megapixel Fixed IRIS Varifocal CCTV Lens 2.8-12mm M12 Mount For 1080P 4MP 5MP Box Camera AHD/IP Camera



Model MR-02812VS Mount M12
Focal Length 2.8-12mm Resolution 3.0MP
Sensor Size 1/2.7" Weight 27g
Aperture F1.4 Dimension Φ38 x 28mm
MOD 0.1m Iris Fixed
Angle of View 90 - 28 Deg Focus Manual
Application Vari-focus Lens for HD Camera


1. Vari-focal lens for HD Camera, 2.8-12mm F1.4 CCTV Lens, 3.0MP Fixed Iris M12 mount lens.
2. 1/2.7" Format High quality cctv camera lens, optical lens , M12 mount vari-focal Lens
3. 2.8-12mm focal length, field of view 90-28 Degree security lens
4. 3.0 Megapixel Lens for CCTV camera, Surveillance Lens, HD Security Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.


Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 3.0 Megapixel, IR Cut and Lens Holder are available as per request.


Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.


5Megapixel DC AUTO IRIS Varifocal CCTV Lens 2.8-12mm M12 Mount For 1080P 4MP 5MP Box Camera AHD/IP Camera
