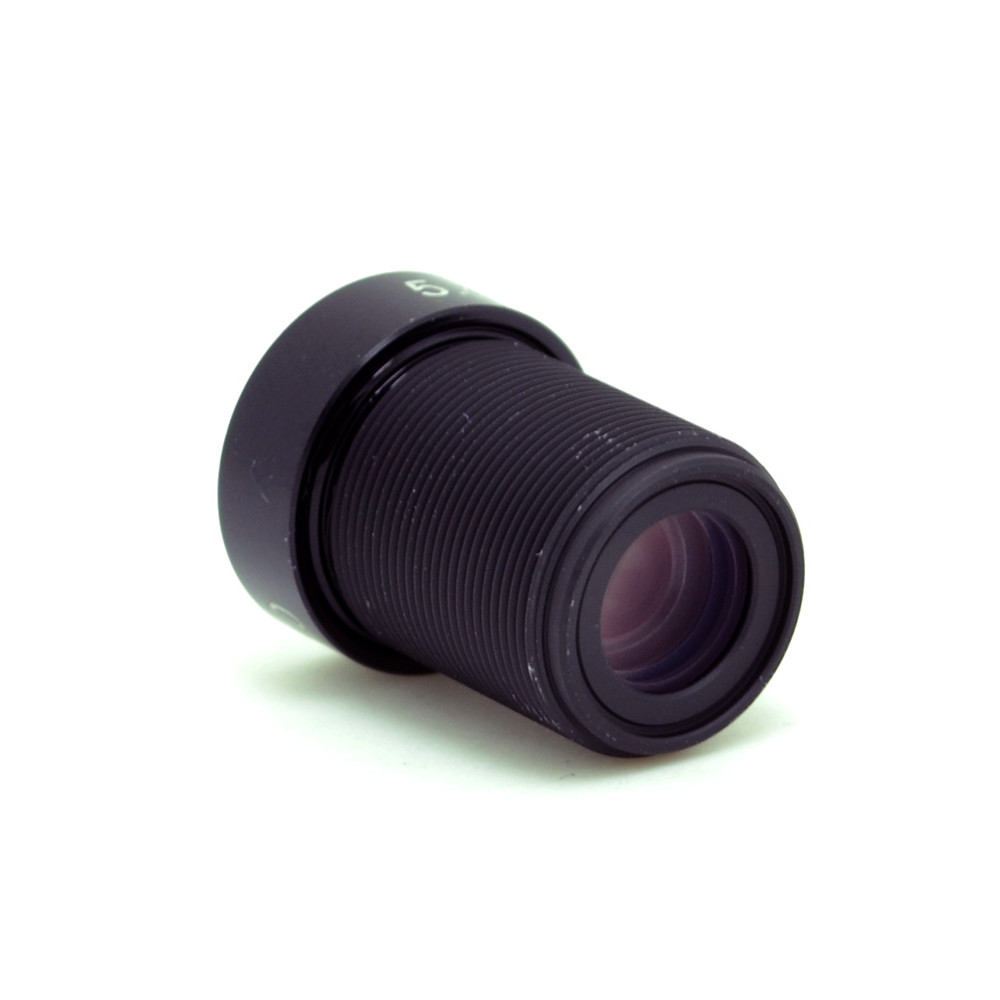

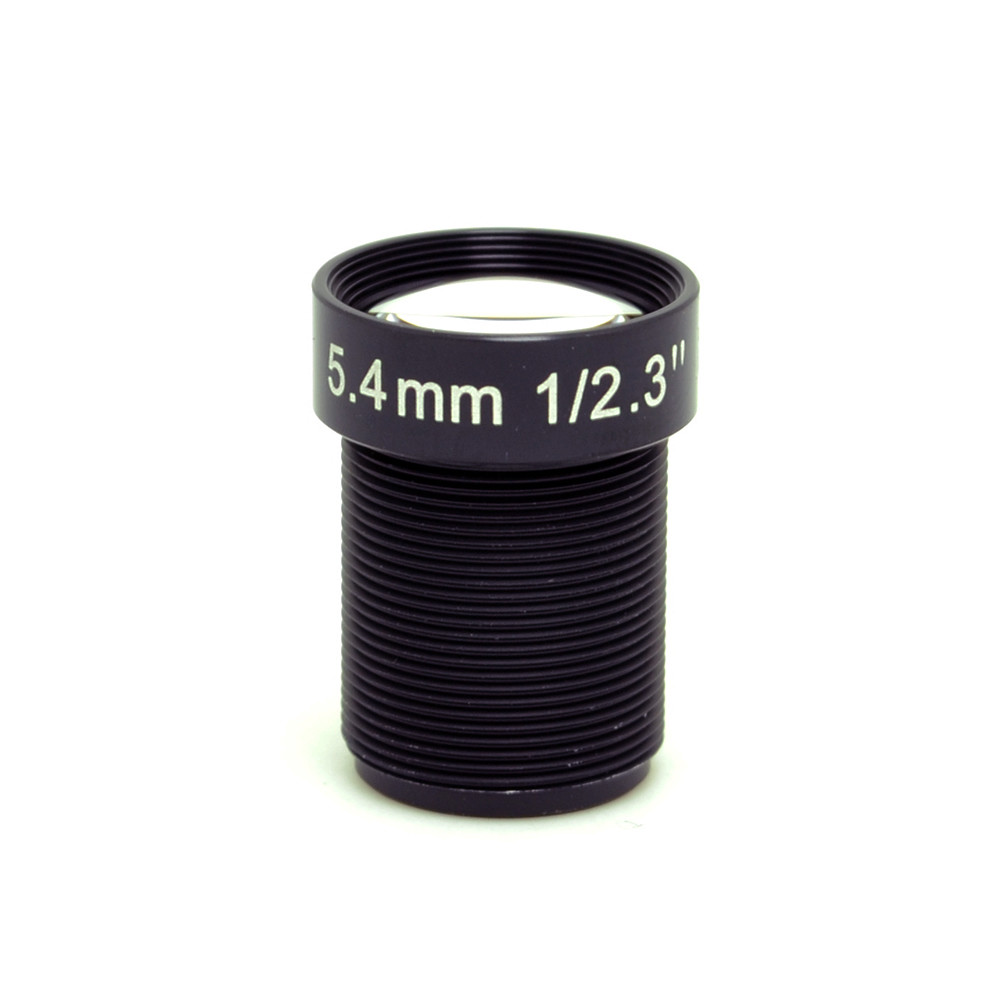

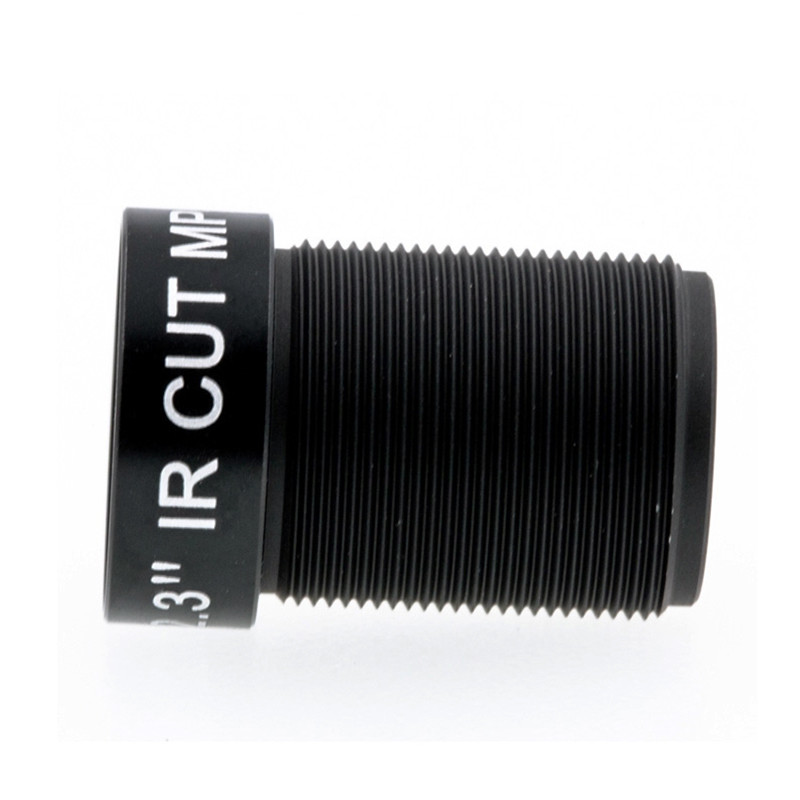

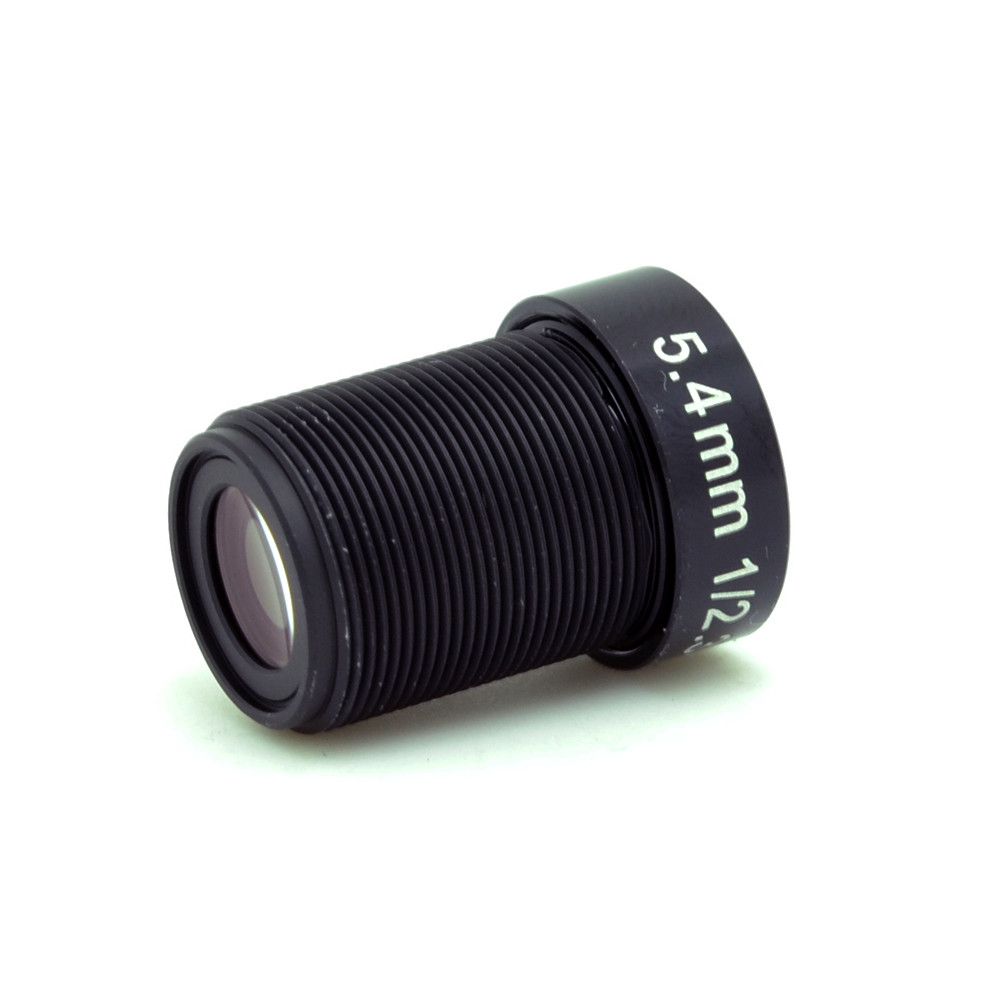

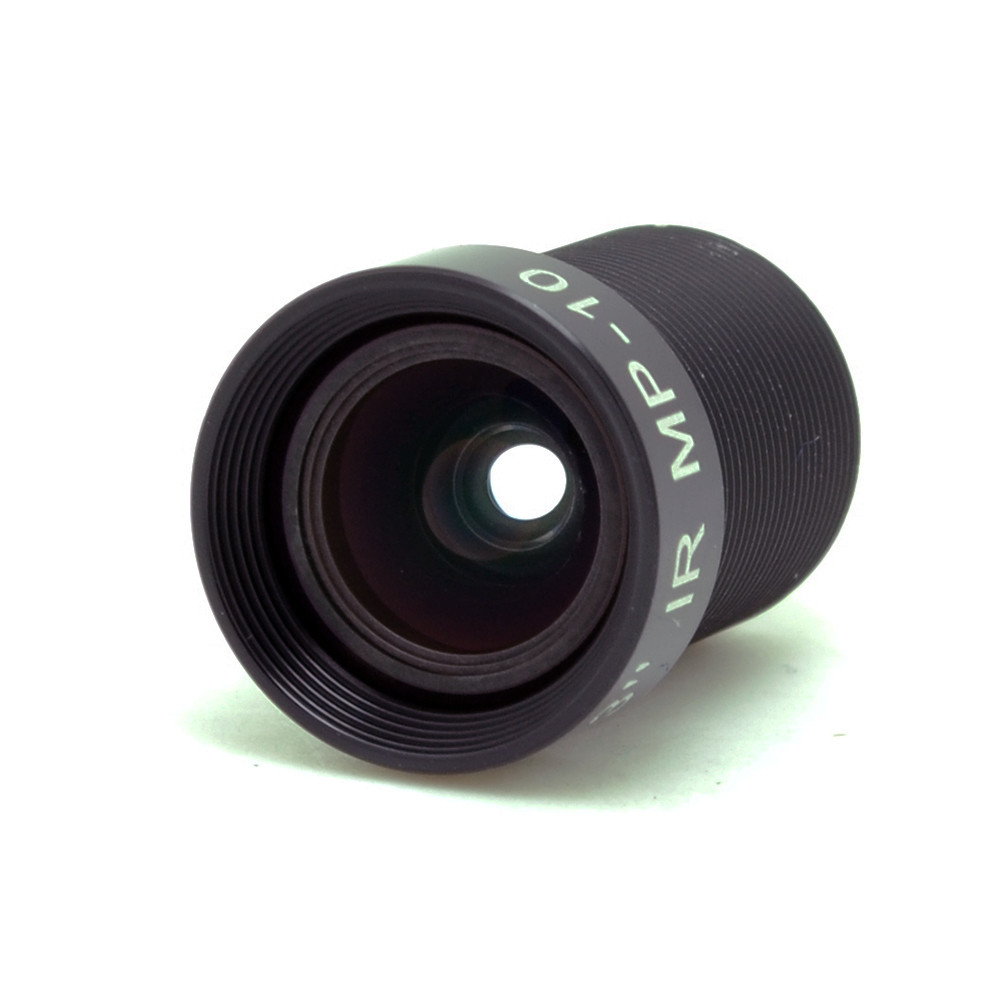

S Mount 4K Low Distortion Lens 5.4mm 1/2.3" F2.5 12MP 60 Degrees CCTV Wide Angle Lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-05425MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-05425MP Mount:: M12*0.5
Resolution:: 10.0Megapixel Focal Length:: 5.4mm
Image Format:: 1/2.3″ Aperture:: F2.5
Field Angle(D/H/V):: 71.7/60/46.8 Degrees Distortion: -2%
High Light:

bullet camera lens

,

cctv camera 6mm lens

Low Distortion 5.4 mm 1/2.3" 4K CCTV Lens F2.5 S Mount 12MP M12 60 degrees Board Lens for CCTV Security IP Camera



Image Size(") 1/2.3
Focal Length(mm) 5.4
F No. 2.5
Field of View (H) 60°
Back Focal Length (mm) 6.6
Dimensions (Φ×L)mm 14X18.74
Iris Fixed



Features:
1. Low Distortion lens, 5.4mm F2.5 mono-focal Lens, 10.0MP M12 mount lens.
2. 1/2.3" Format High quality cctv camera lens, optical lens , Aerial shot lens
3. 5.4mm focal length 60 Degree security lens, linear lens
4. 10.0 Megapixel Lens for sport camera, Surveillance Lens, Low distortion Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 10.0 Megapixel, IR Cut and Lens Holder are available as per request.
