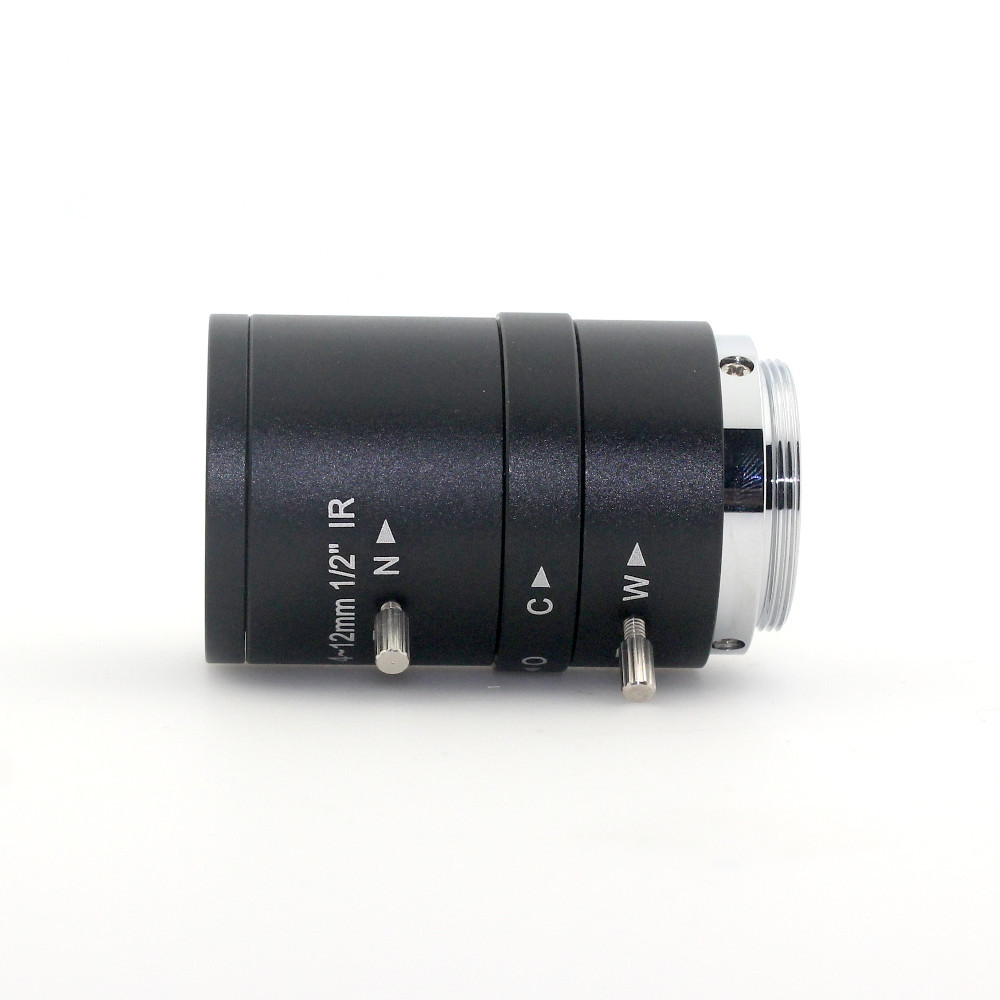

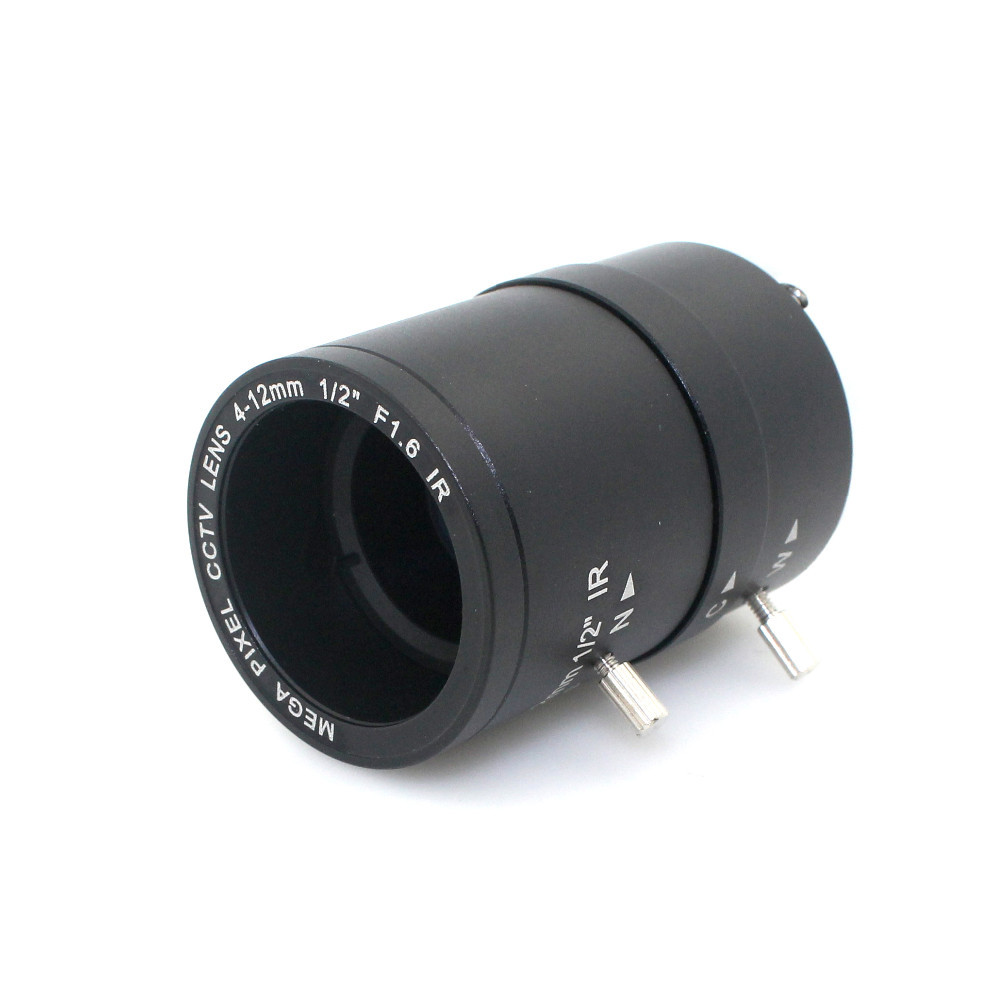

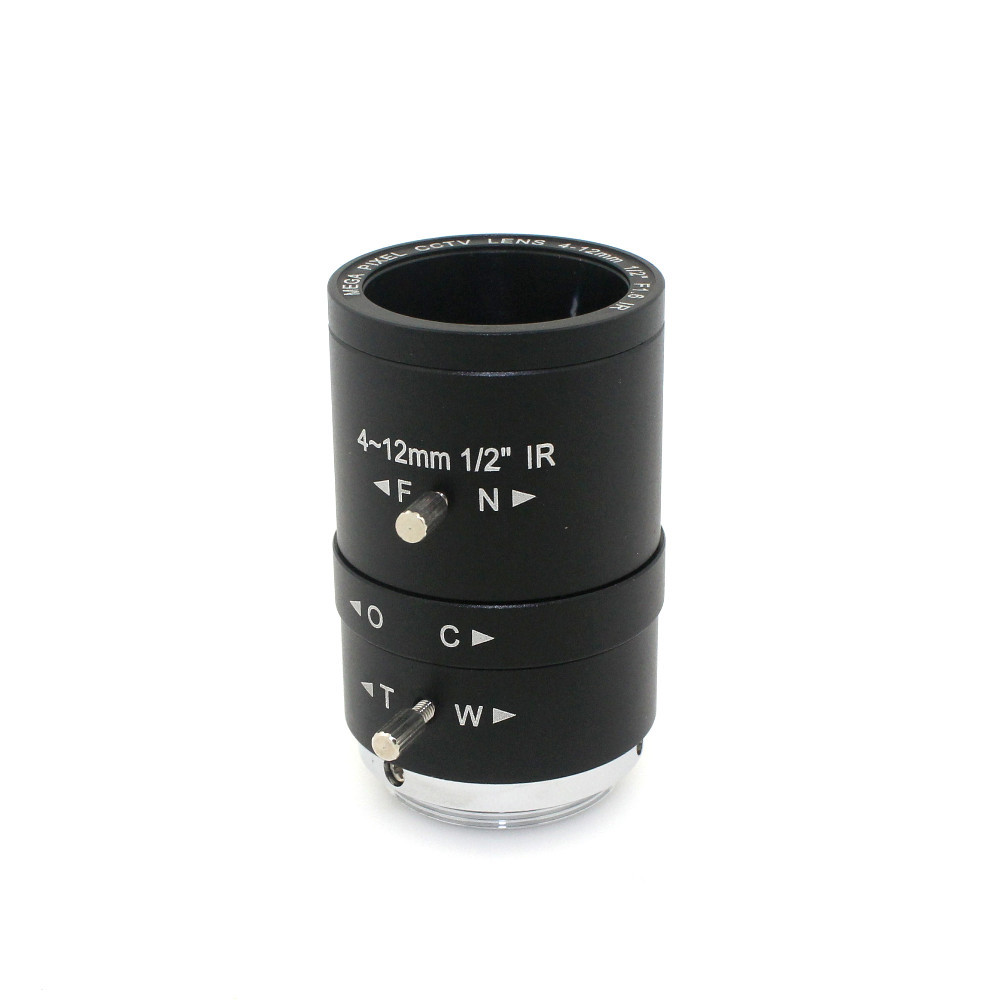

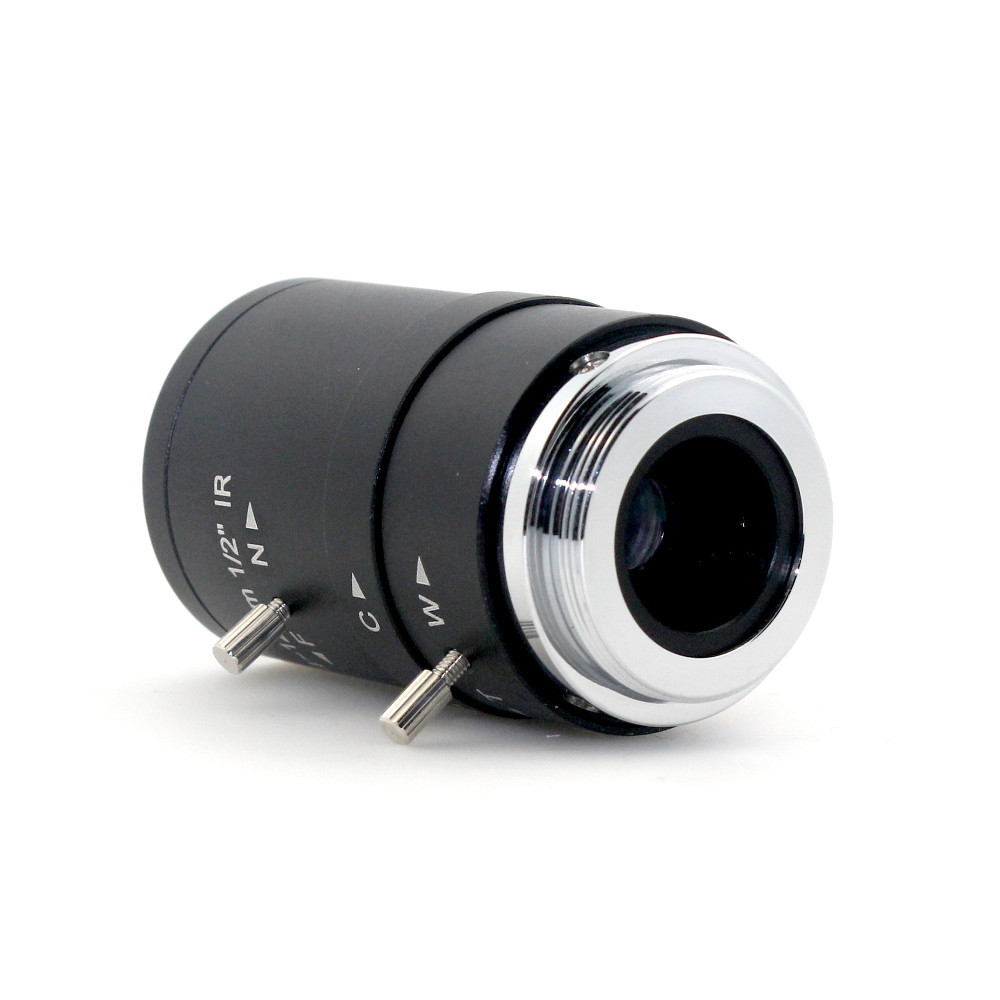

Flat Image Machine Vision Lens 4-12mm MP Resolution CS 1/2" IR CS Mount Varifocal

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C0412VW12-MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C0412VW12-MP Mount:: CS
Resolution:: MP Focal Length:: 4-12mm
Image Format:: 1/2″ Aperture:: F1.6
Field Angle(1/3%22):: 90°-25° Iris: Manual
High Light:

ip camera wide angle lens

,

cctv board lens

4-12mm MP CS LENS 1/2" IR CS Mount Varifocal Manual Iris CCTV Lens for CCTV Security Cameras BOX



Specification

Model MR-C0412VW12-MP Mount CS
Focal Length 4-12mm Resolution MP
Sensor Size 1/2" Weight 100g
Aperture F1.6 Iris Manual
MOD 0.2m Dimension 32*49.5mm
Angle of View 90°-25° Iris Manual
Application Machine View



Features:
1. Megapixel Camera lens, 4-12mm F1.6 vari-focal manual iris lens.
2. 1/2" Format High quality cctv camera lens, optical CS mount Lens
3. 4-12mm focal length 90-25 Degree security CS lens
4. Industrial Lens for CCTV Security camera Surveillance Lens



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.





4-12mm MP CS LENS 1/2" IR CS Mount Varifocal Manual Iris CCTV Lens for CCTV Security Cameras BOX
