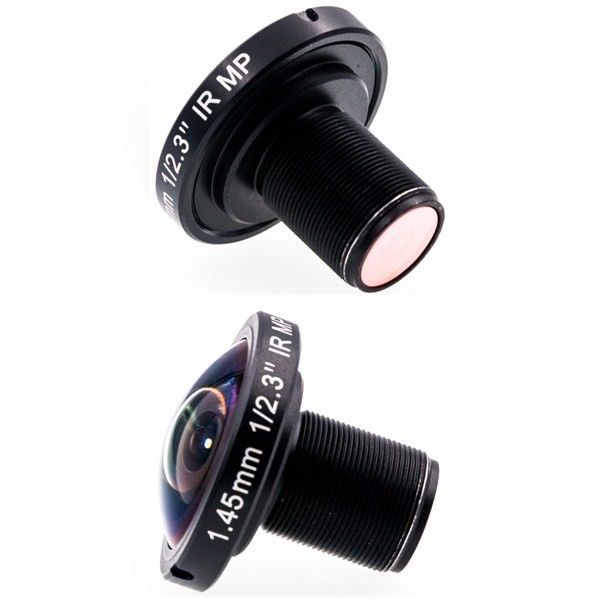

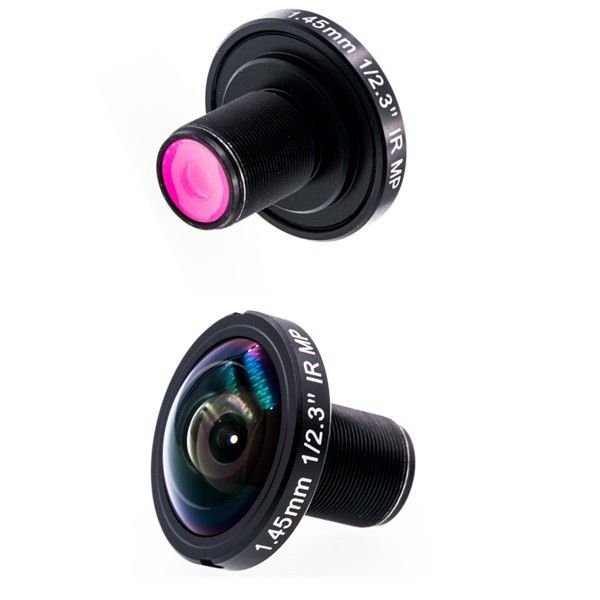

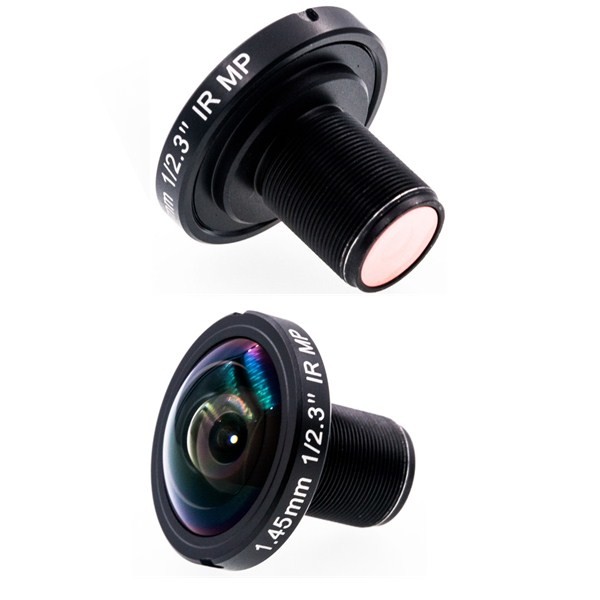

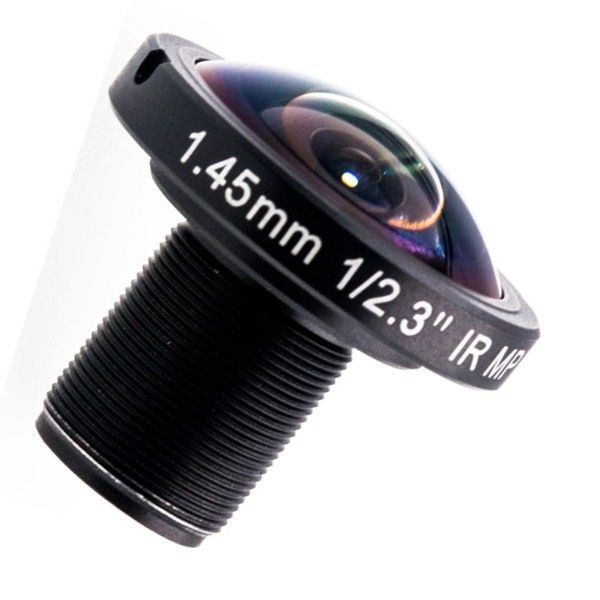

GoPro Hero Camera 1.45mm 190D 12MP Wide Angle IR Lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-L14522X-12MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-L14522X-12MP Mount:: M12*0.5
Resolution:: 12MP Focal Length:: 1.45mm
Image Format:: 1/2.3″ Aperture:: F2.2
Field Angle(1/3%22):: 190°*190°*190° BFL: 4.62mm
High Light:

190° board camera lens

,

1.45mm cctv wide angle lens

Fisheye CCTV Lens 1.45mm 190D 12MP Wide Angle IR Lens for GoPro Hero Camera:



Features:
1. 12.0 megapixel HD lens,1.45mm F2.0 board MTV Lens, fixed iris manual focus lens.
2. 1/2.3" Format High quality manual iris optical cctv lens
3. 1.45mm focal length 190 Degree of DFOV security lens
4. φ4.4mm image circle Wide angle fisheye Lens for box camera,Surveillance Mini Dome Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Specification
Model MR-L14522X-12MP Mount M12*0.5
Focal Length 1.45mm Resolution 12.0MP
Sensor Size 1/2.3'' Distortion <-3.7%
Aperture F2.2 Dimension Φ17.5*20mm
MOD 0.2m Total Optical Length 28.4mm
Angle of View 190° Structure 8G+IR
Remark Fisheye CCTV Lens





Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
