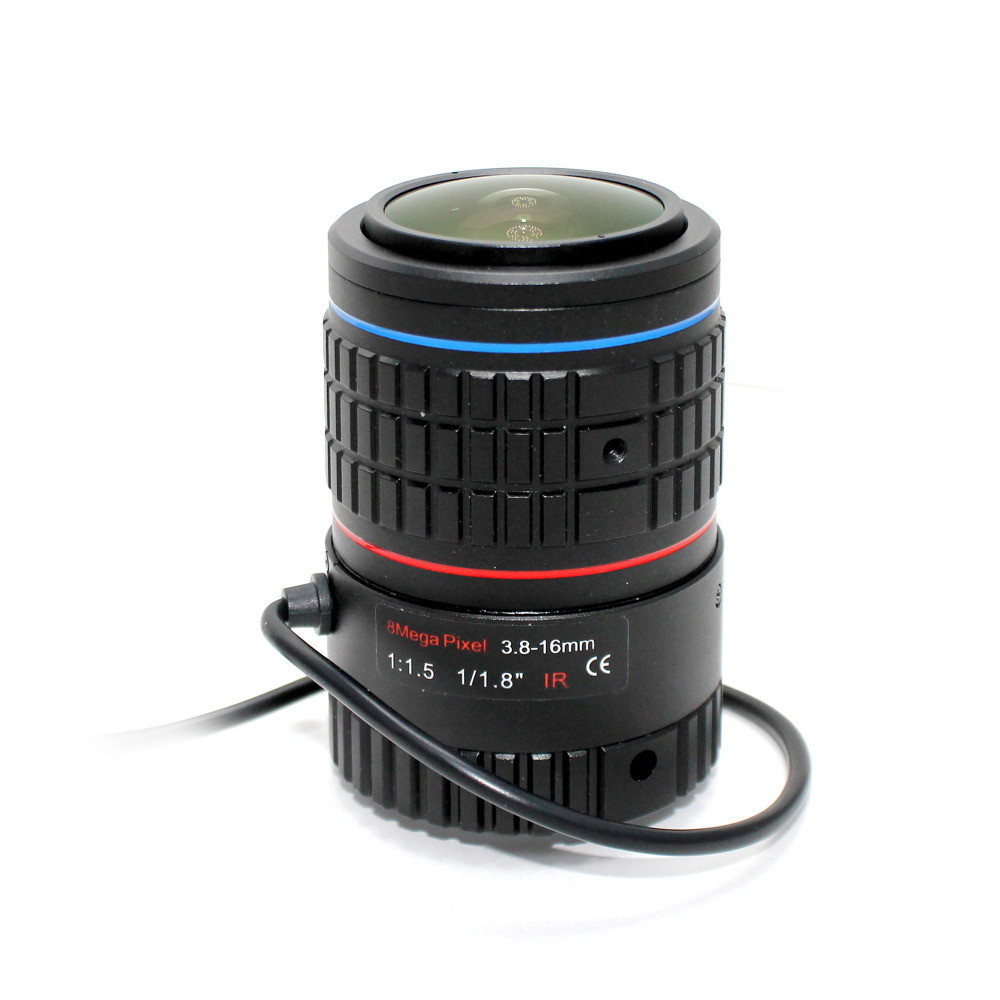

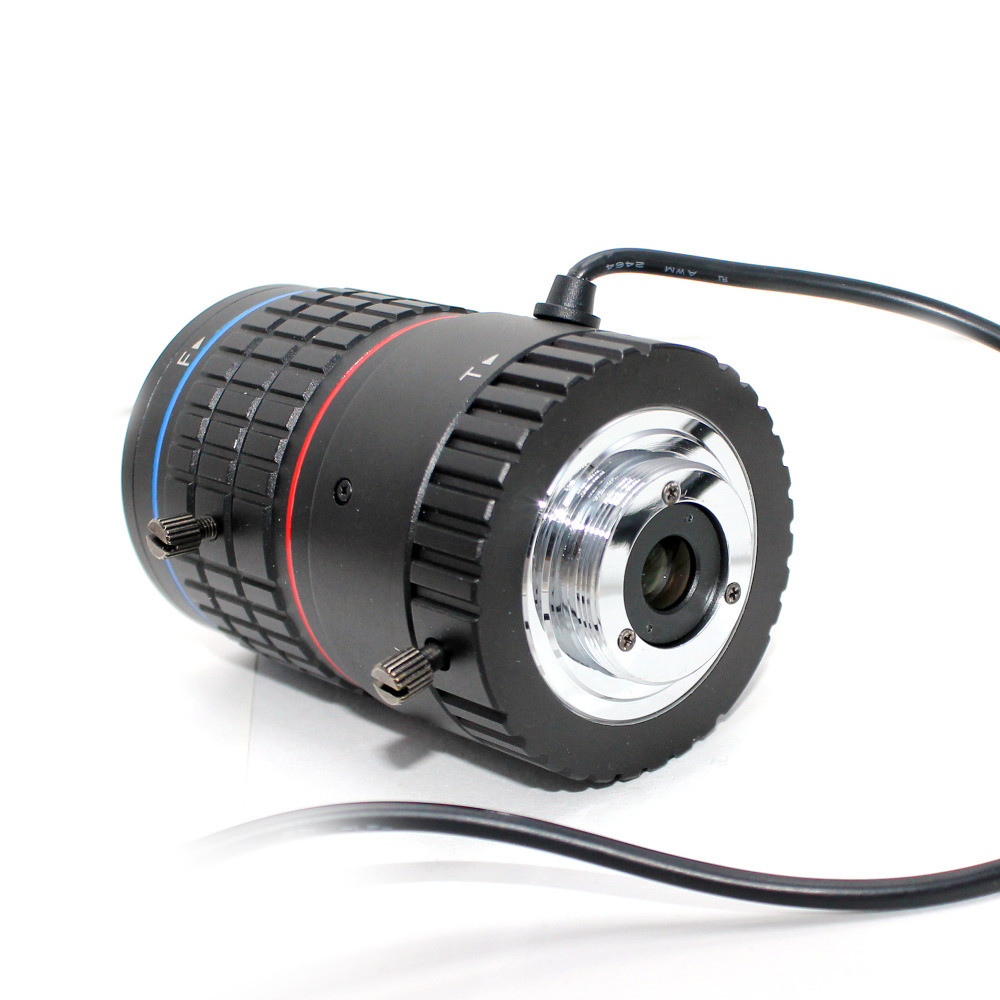

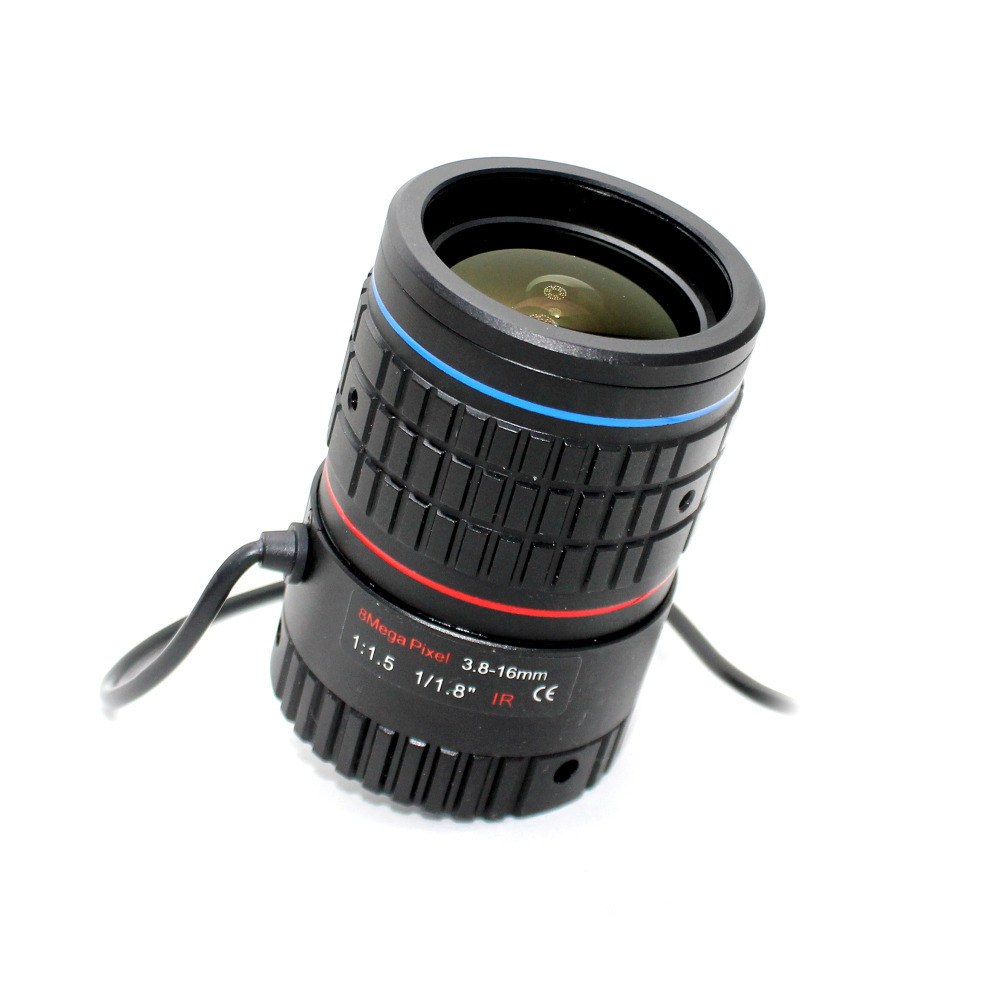

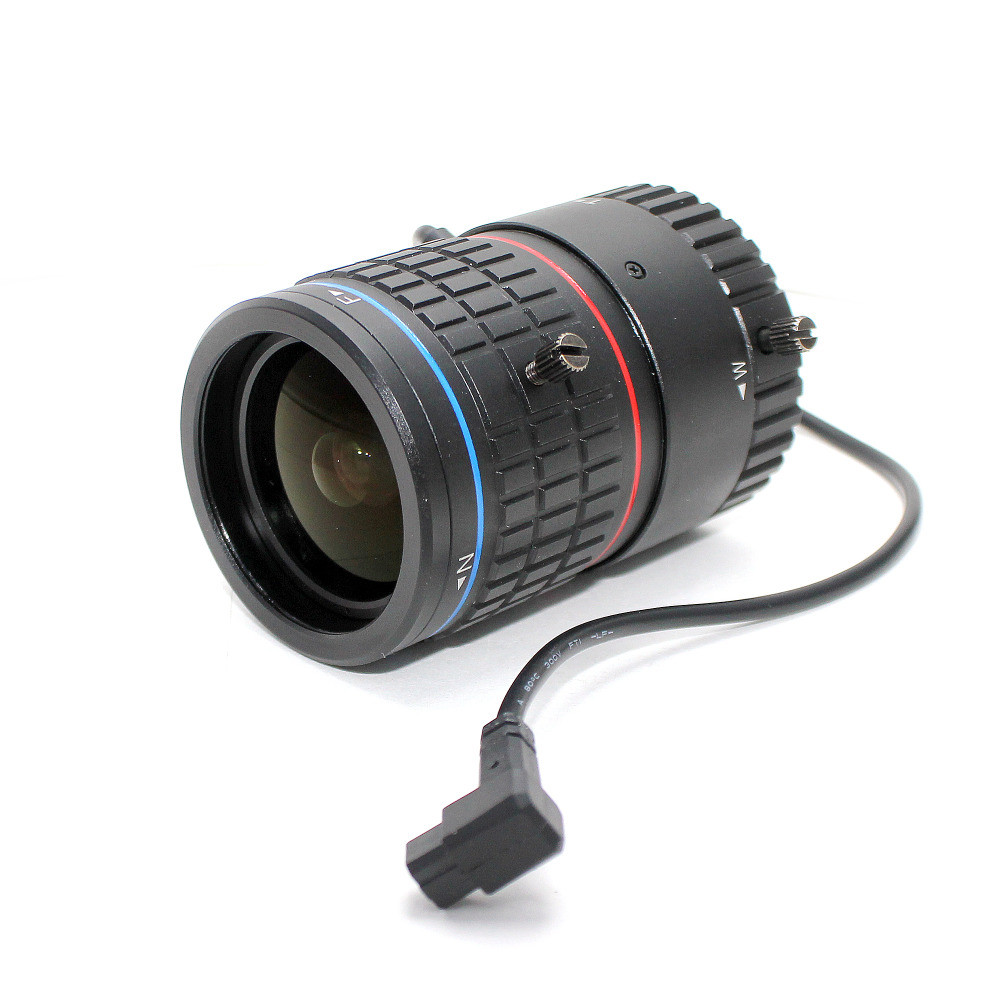

CS Mount 4K 8 Megapixel Varifocal 1/1.8 Inch Cctv Wide Angle Lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C03816WA-8MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C03816WA-8MP Mount:: CS
Focal Length:: 3.8-16mm Image Format:: 1/1.8″
Aperture:: F1.5 Field Angle(1/3%22):: 128°*103.5°*75.5°-34.4°*28°*20.7°
Iris: Auto
High Light:

cctv zoom lens

,

cctv ir lens

4K Lens 8Megapixel Varifocal CCTV 1/1.8 inch 3.8-16mm CS Mount DC IRIS For CCTV SONY IMX226/178 Box Camera/4K Camera



Specification

Model MR-C03816WA-8MP Mount CS
Focal Length 3.8-16mm Resolution 8MP
Sensor Size 1/1.8" Weight 200g
Aperture F1.5 Dimension Φ49.5x83.6mm
MOD 0.3m BFL 7.15-18.6mm
Angle of View 128°*103.5°*75.5°-34.4°*28°*20.7° IR Correction Yes
Application Auto iris Lens for HD Camera



Features:
1.
4K Lens 8Megapixel Varifocal CCTV 1/1.8 inch 3.8-16mm CS Mount Lens
2. 1/1.8" Format optical CS mount auto iris Lens For CCTV SONY IMX226/178 Box Camera/4K Camera
3. 8.0MP F1.5 Aperture auto iris lens, field of view 128°*103.5°*75.5°-34.4°*28°*20.7° Degree CCTV lens



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.



4K Lens 8Megapixel Varifocal CCTV 1/1.8 inch 3.8-16mm CS Mount DC IRIS For CCTV SONY IMX226/178 Box Camera/4K Camera



 10mm pinhole mini Lens Megapixel HD camera Board M12 lens for CCTV Security Camera

 10mm pinhole mini Lens Megapixel HD camera Board M12 lens for CCTV Security Camera



Supply Ability:10000 pcs per month



Packaging & Delivery



25 pcs lens / bag

500 pcs lens / carton

Or as your request



Logistic Methods

1.Shipping ways: The company arranges to ship the goods via the Forwarder Express here in default. (logistic methods are optional as request) The freight cost should be charged by the Customers. It is ok to ship by Collection Account.
2. Samples shipping: If for the samples, it could return the sample fees after first bulk order to the customers.

CS Mount 4K 8 Megapixel Varifocal 1/1.8 Inch Cctv Wide Angle Lens 3

3. Item Processing Time: The processing time for a specific order varies with the product type and stock status. Mostly, processing time can be 3 to 15 working days.
