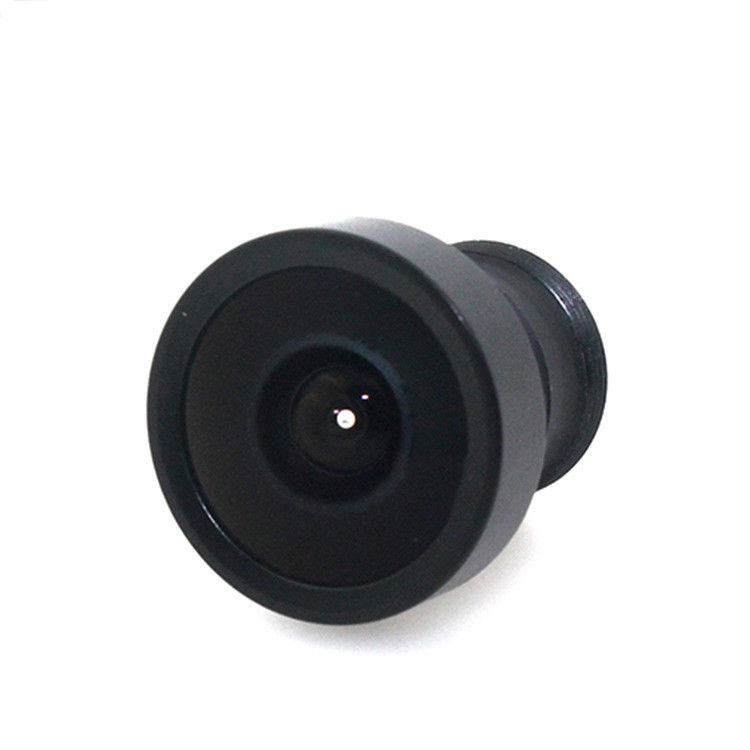

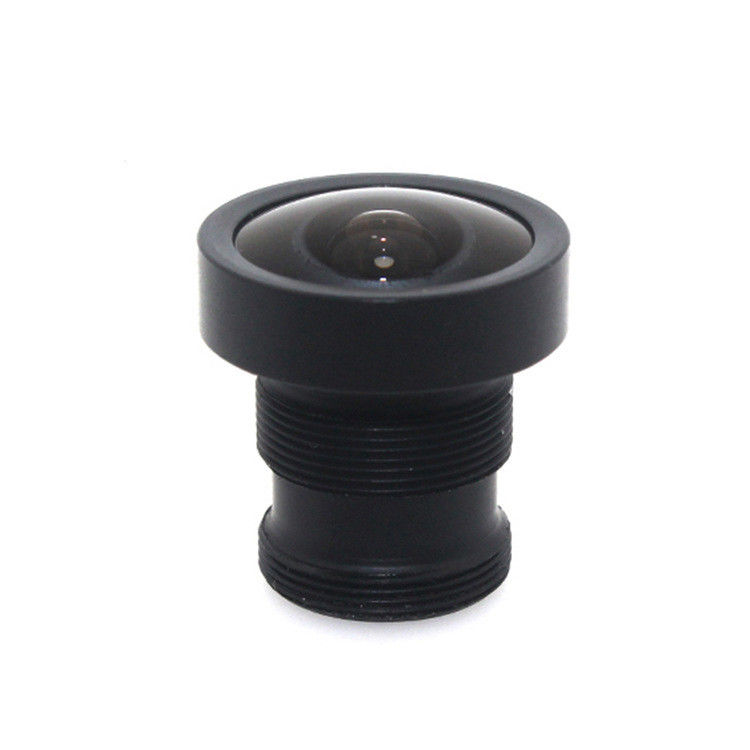

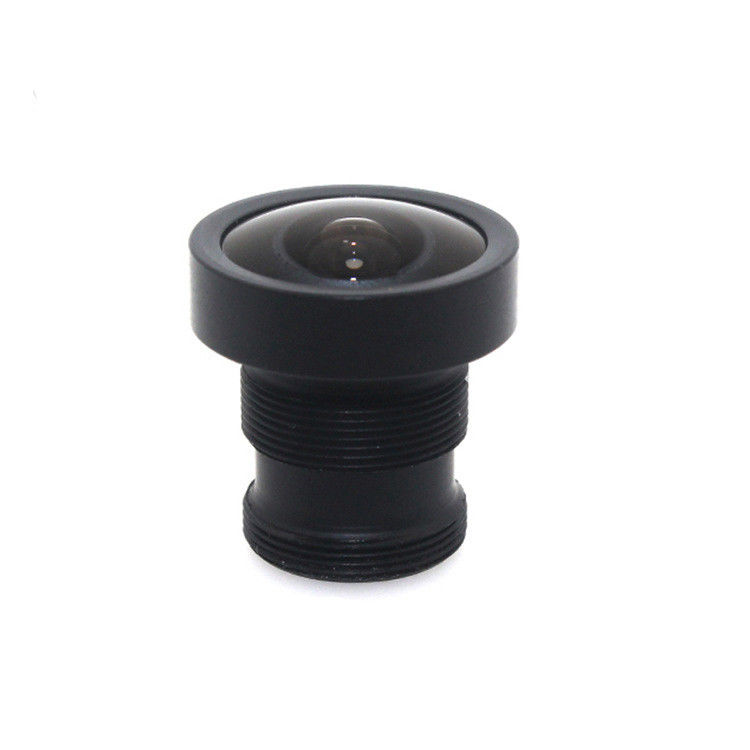

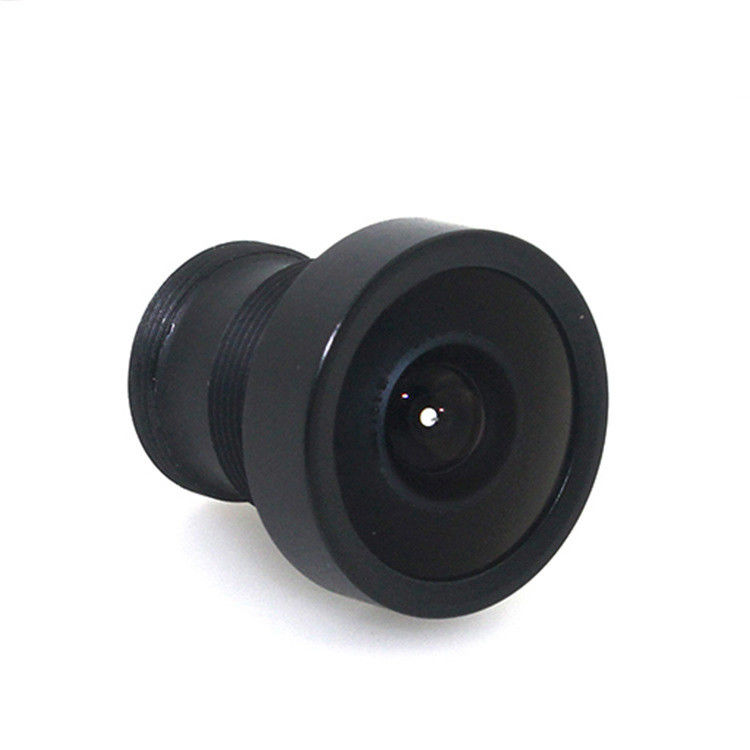

1/3" M12 F2.0 2.1mm CCTV Camera Lens For CCTV Surveillance Device Smart Security

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-02120
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-02120 Mount:: M12*0.5
Focal Length:: 2.1mm Image Format:: 1/3″
Aperture:: F2.0 Field Angle(1/3%22):: 175°
Lens Size: 17*18.5mm
High Light:

ip camera lens

,

surveillance camera lenses

1/3" M12 F2.0 2.1mm cctv camera lens for CCTV surveillance device Smart security :


Specification
Model MR-02120 Mount M12*0.5
Focal Length 2.1mm TTL 24.8mm
Sensor Size 1/3'' Weight 9g
Aperture F2.0 Dimension Φ17*18.5mm
Material Metal Barrel and Glass Lens Operating Temperature -20°C -- +60°C
Angle of View 175° BFL 6.8mm
Application CCTV surveillance device Smart security



Features:
1. Semi-threaded fisheye lens, 2.1mm F2.0 board MTV Lens, fixed iris manual focus lens.
2. 1/3" Format High quality cctv camera lens, optical lens ,M12 Mount Lens
3. 2.1mm focal length 175 Degree of DFOV surveillance lens
4. Wide angle fisheye Lens for box camera,Surveillance Lens, Mini Dome Camera Lens



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.





Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.





5MP HD 2.1mm CCTV Lens 5.0Megapixel IP Camera Lenses MTV Board IR M12 Lens F2.0 1/2.5" Image Format For HD Security Cam
