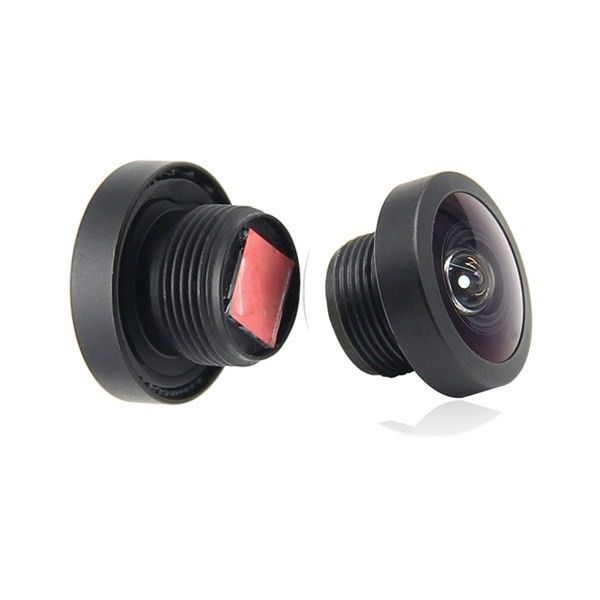

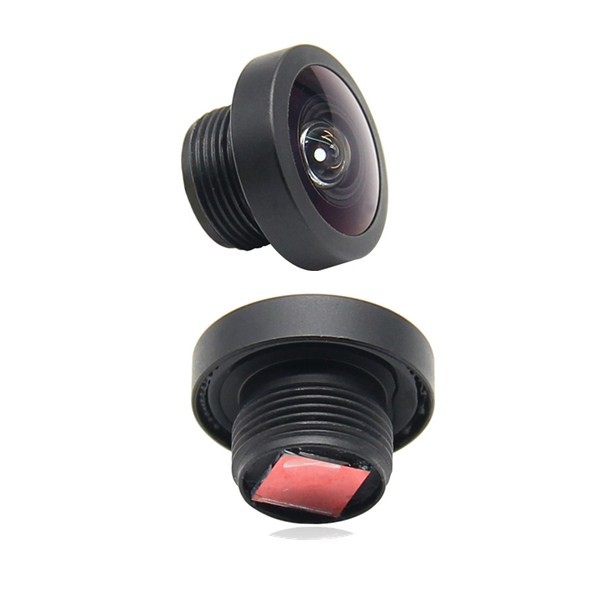

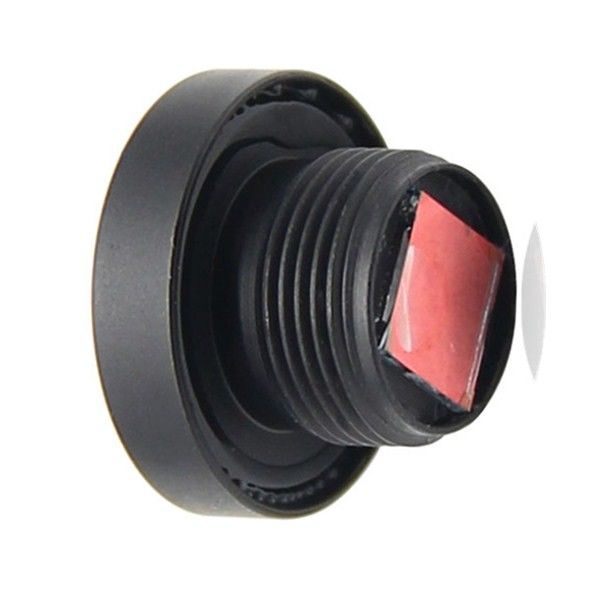

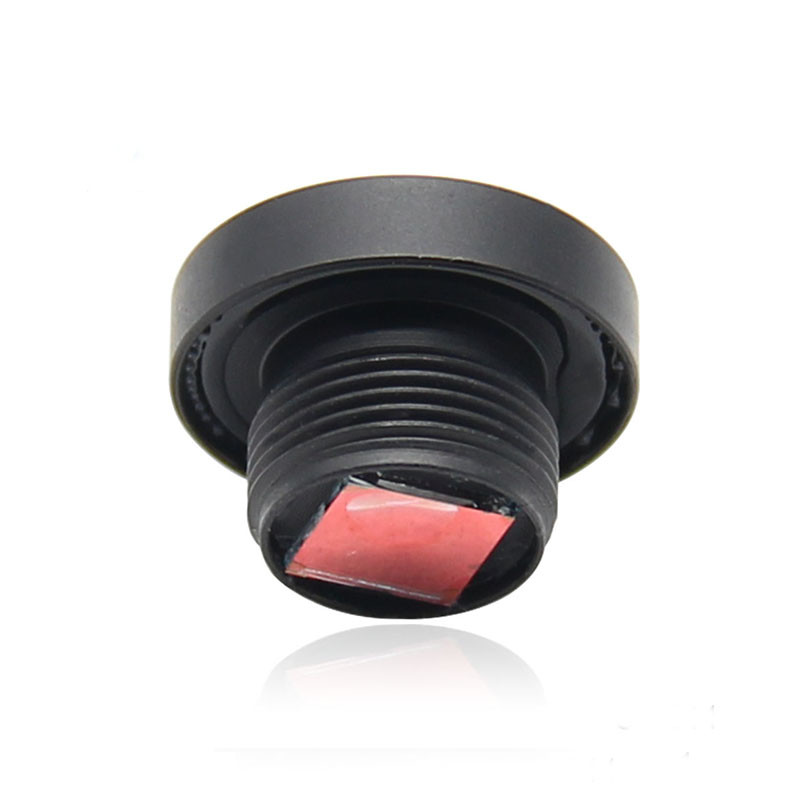

High Resolution F2.25 1.02mm M8 Mount Cctv Wide Angle Lens

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-L10222X15-4011
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-L10222X15-4011 Mount:: M8*0.5
TTL: 10.8mm Focal Length:: 1.02mm
DFOV: 131°*110°*88° BFL: 1.71mm
High Light:

F2.25 security camera lens

,

4E cctv wide angle lens

1/5 small size sensor wide angle lens F2.25 1.02mm M8 Mount CCTV lenses:



Specification
Model MR-L10222X15-4011 Mount M12*0.5
Focal Length 1.02mm BFL 1.71mm
Sensor Size 1/5' Distortion <6.5%
Aperture F2.25 CRA <14°
MOD 0.2m RI >78%
Angle of View 131°*110°*88° Structure 4E
Operating Temp. -40°C ~ +85°C
Application Car Rear view Lens



Features:
1. Small size sensor wide angle lens, 1.02mm F2.25 Vehicle Lens
2. 1/5" Format High quality automotive camera lens, optical M8 mount Lenses
3. FOV 131 Degree of DFOV wide angle lens, can match with IR CUT filter

4. Megapixel resolution of CCTV Lens can be used for IP camera & High resolution cameras.
