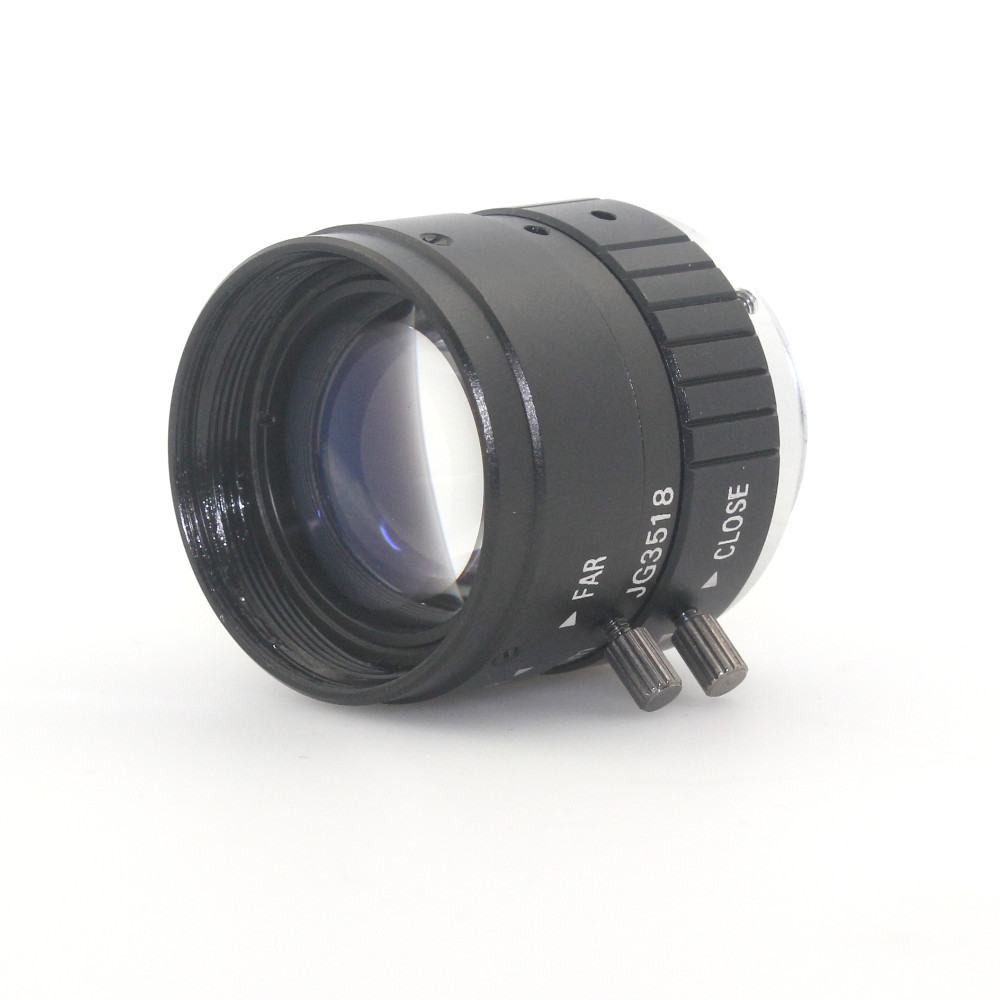

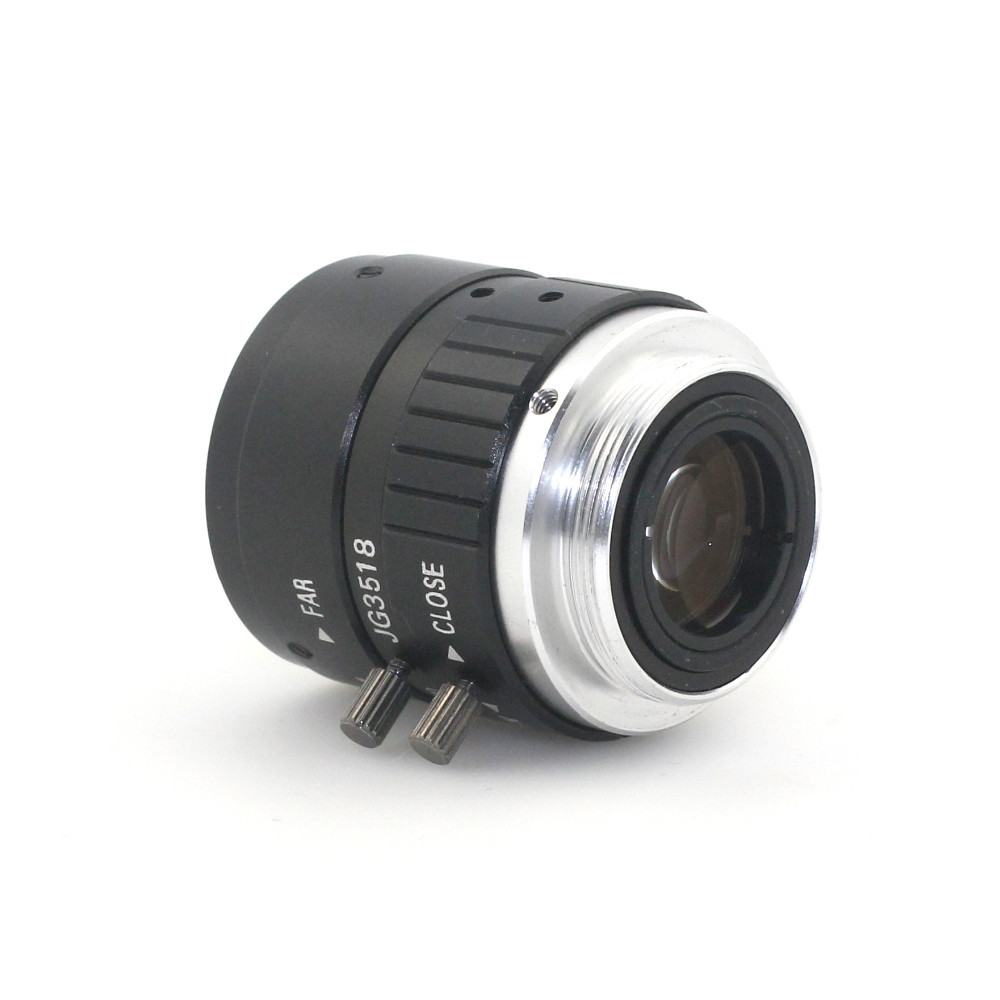

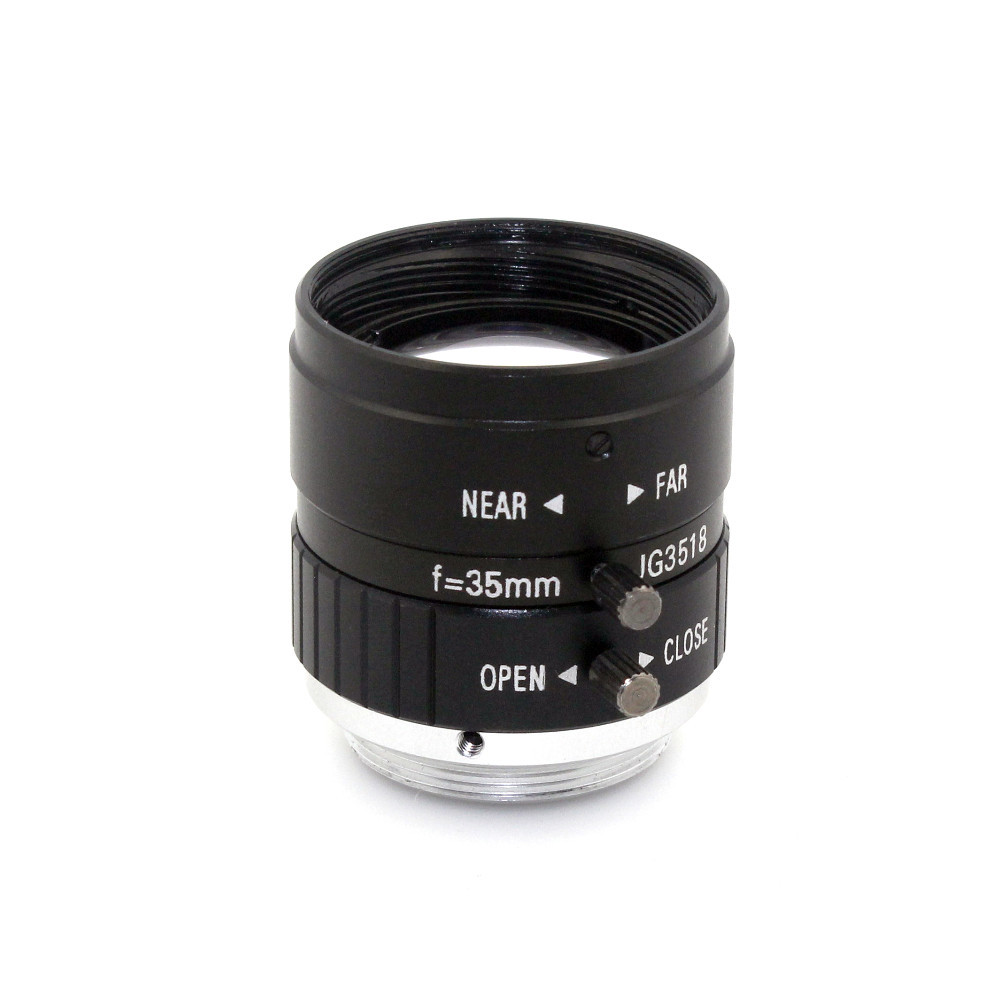

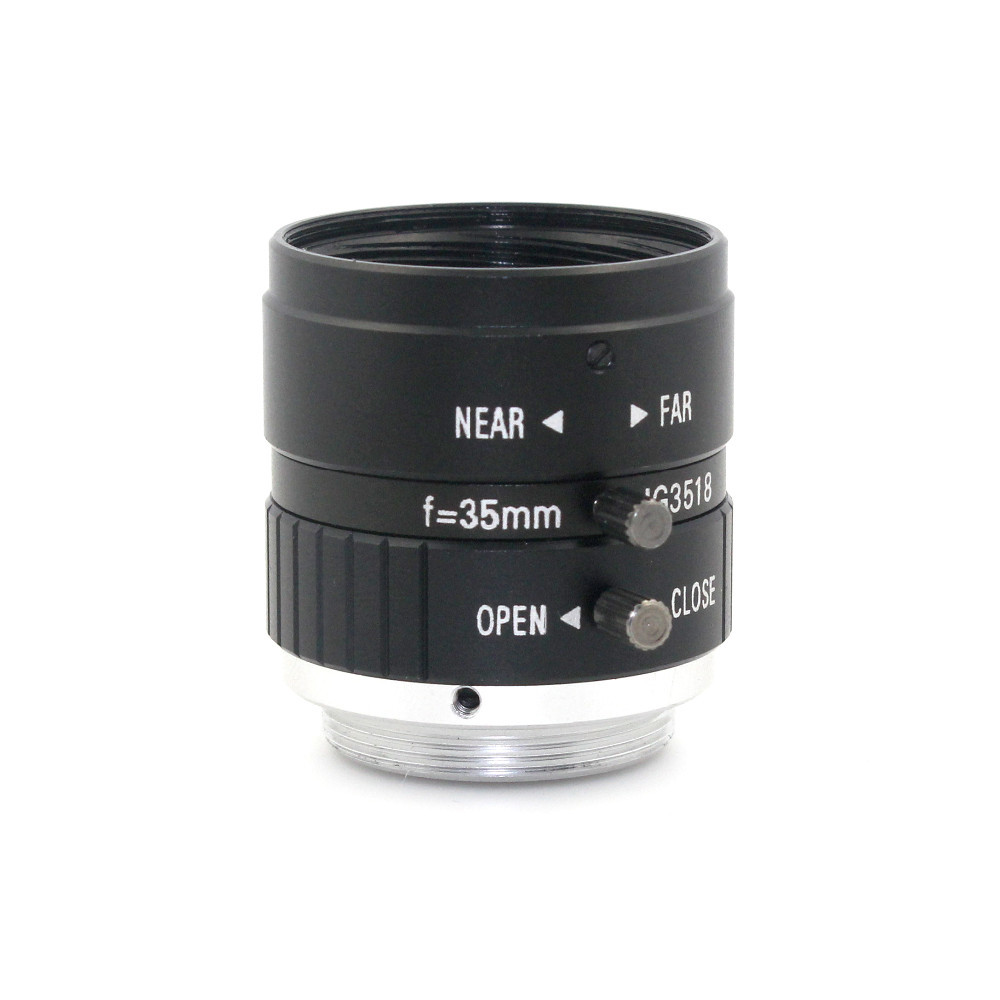

Manual Zoom Focus Iris High Resolution Lens 5MP 35mm F1.8 For Microscopes CCTV Camera

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C3518W-5MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C3518W-5MP Mount:: C
Resolution:: 5MP Focal Length:: 35mm
Image Format:: 2/3″ Aperture:: F1.8
Field Angle(1/3%22):: 14.85° Iris: Manual
High Light:

ip camera wide angle lens

,

cctv board lens

5MP 35mm F1.8 Manual Zoom Focus Iris C Mount Lens for Microscopes CCTV Camera





Specification
Model MR-C3518W-5MP Mount C
Focal Length 35mm Back Focal Length 13.03mm
Sensor Size 2/3'' Iris Manual
Aperture F1.8 Focus Manual
Dimension 33*34mm Zoom Fixed
MOD 0.3m Operating Temperature -40°C -- +85°C
Angle of View 14.85° Resolution 5.0MP
Remark Metal lens





5MP 35mm F1.8 Manual Zoom Focus Iris C Mount Lens CCTV Lens for CCTV Camera



Features:
1. 5.0 megapixel HD lens,35mm F1.8 C mount Lens, manual iris manual focus lens.
2. 2/3" Format High quality manual iris cctv lens, Industrial machine vision lens ,High resolution Camera Lens
3. 35mm focal length, 14.85 Degree of FOV security lens
4. Machine vision Lens for industrial camera,Surveillance Lens, ITS Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
