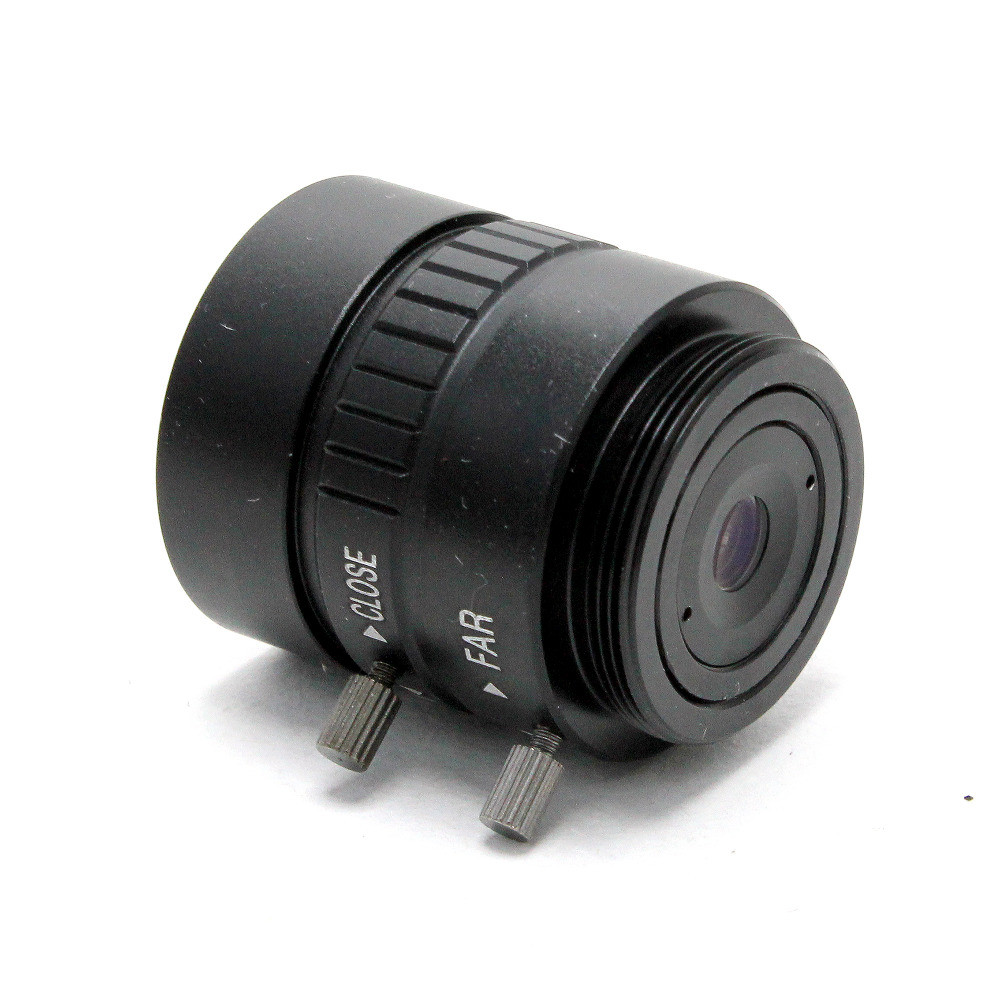

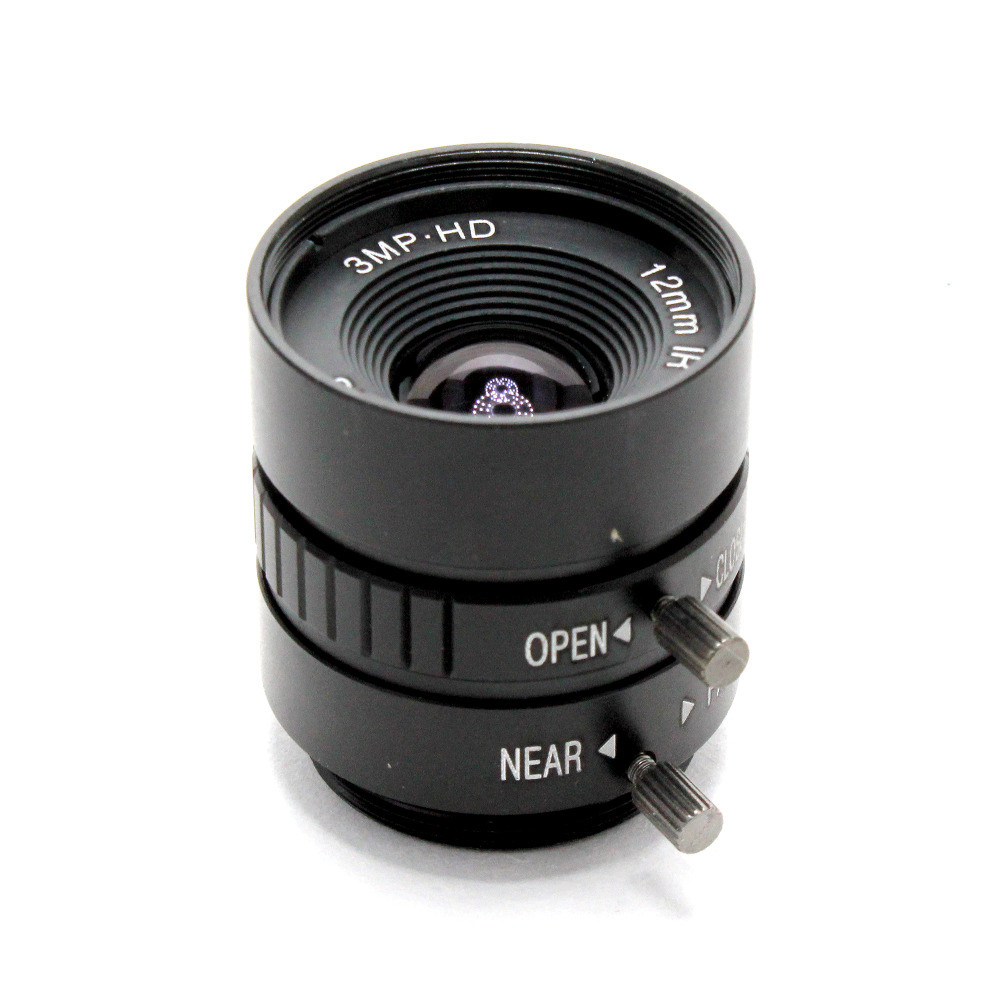

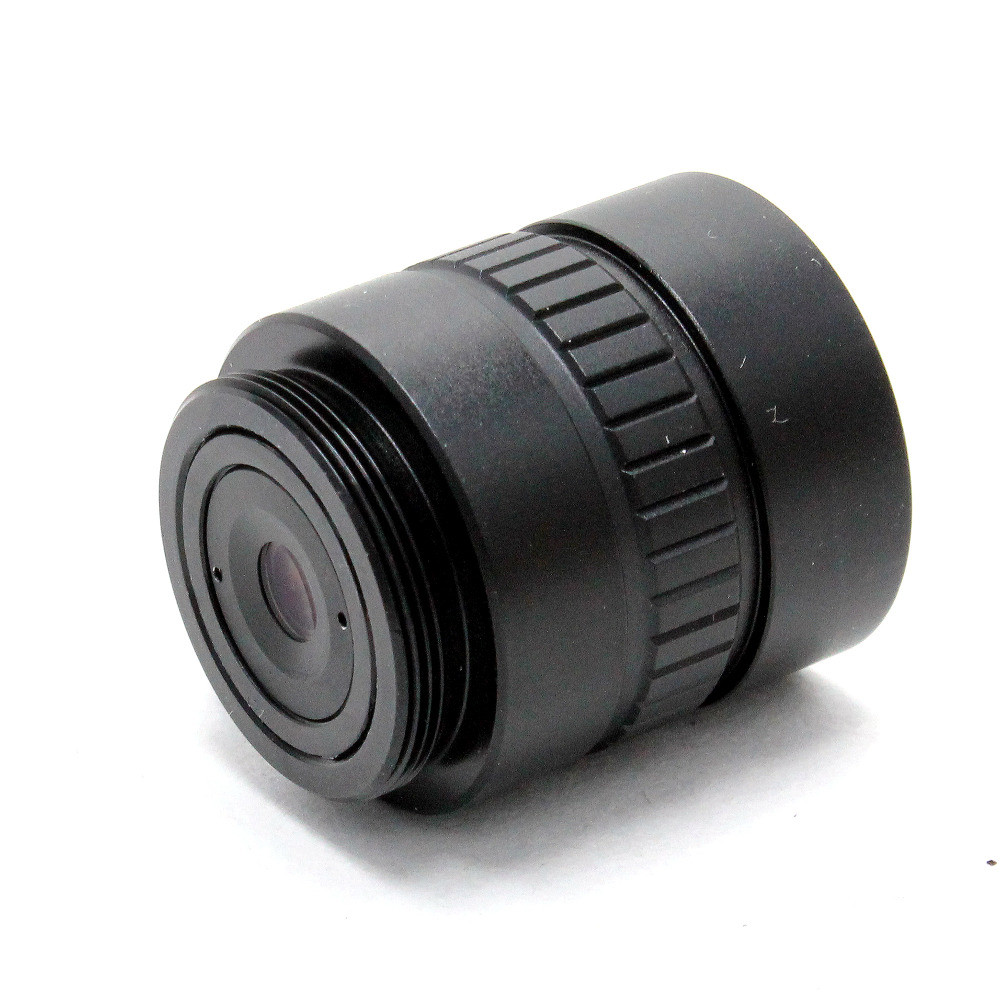

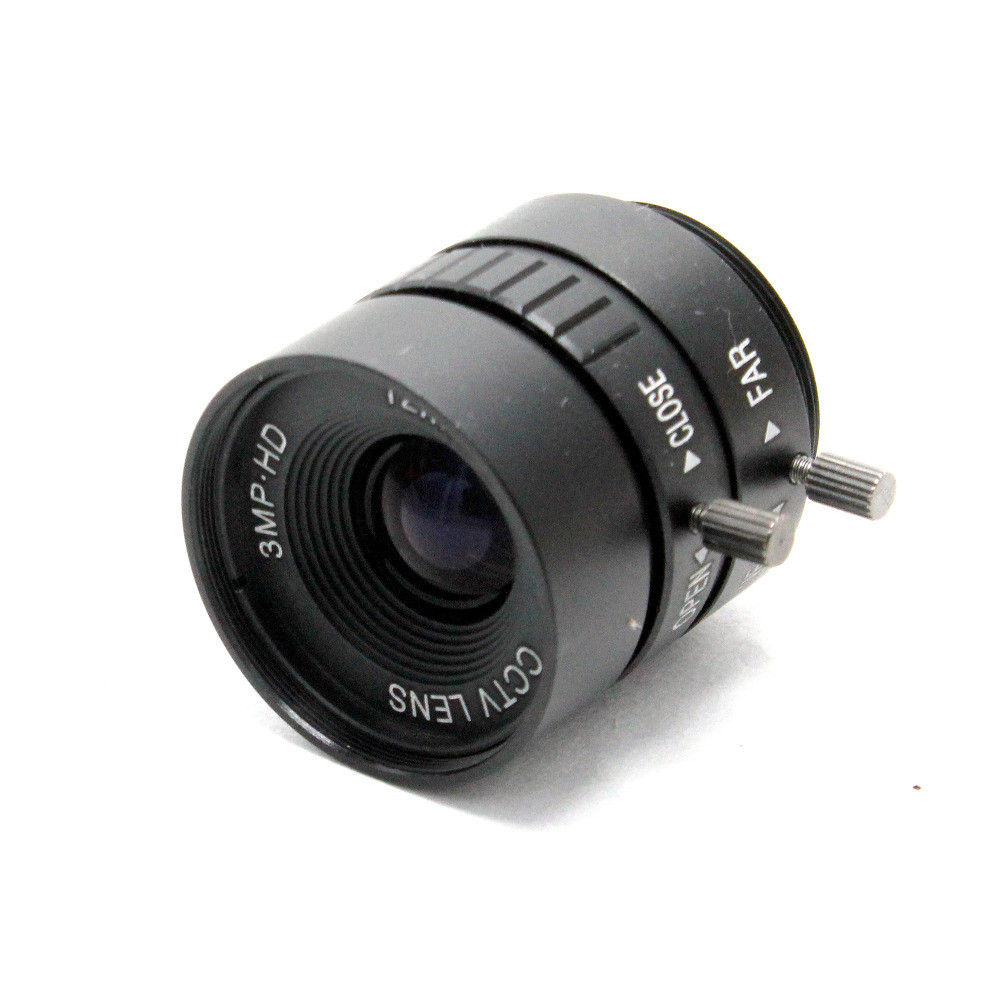

Security IP Industrial Camera Lens , 3MP HD 12mm 1/2 CS Mount Lens IR Iris 28.5 Degree

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR1212-3MPC
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR1212-3MPC Focal Length:: 8mm
Image Format:: 1/2″ Aperture:: F1.2
HFOV: 28.5° Iris: Manual
Focus: Manual Zoom: Fixed
High Light:

cctv board lens

,

c mount zoom lens

3MP HD 12mm 1/2 CCTV Lens CS mount IR Iris fixed 28.5 degree for Security IP Camera



Specification
Model MR1212-3MPC Mount CS
Focal Length 12mm Back Focal Length 12.53mm
Sensor Size 1/2'' Weight 53g
Aperture F1.2 Dimension Φ30*34mm
MOD 0.2m Operating Temperature -20°C -- +60°C
Angle of View 28.5° Lens Construction 6 components
Remark Metal Lens



3MP HD 12mm 1/2 CCTV Lens CS mount IR Iris fixed 28.5 degree for Security IP Camera

Features:
1. 3 megapixel HD lens,12mm F1.2 Manual Iris Fixed focal length Machine Vision Lens
2. 1/2" Format High quality Fixed focal length lens,optical CS Mount Lens
3. 12mm focal length Manual Iris Lens
4. Low distortion Lens for box camera, industrial Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 3.0 Megapixel.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
