1/1.7" 4K CCTV Camera Lens IR Correction F1.8 Megapixels 12MP 72.64 Degrees For UHD Security Camera

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-FCS0818IRST-12MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-FCS0818IRST-12MP Mount:: CS
Focal Length:: 8mm Image Format:: 1/1.7″
Aperture:: F1.8 Field Angle(1/3%22):: 72.64°×57.12°×42.44°
High Light:

cs mount cctv lens

,

cctv motorized zoom lens

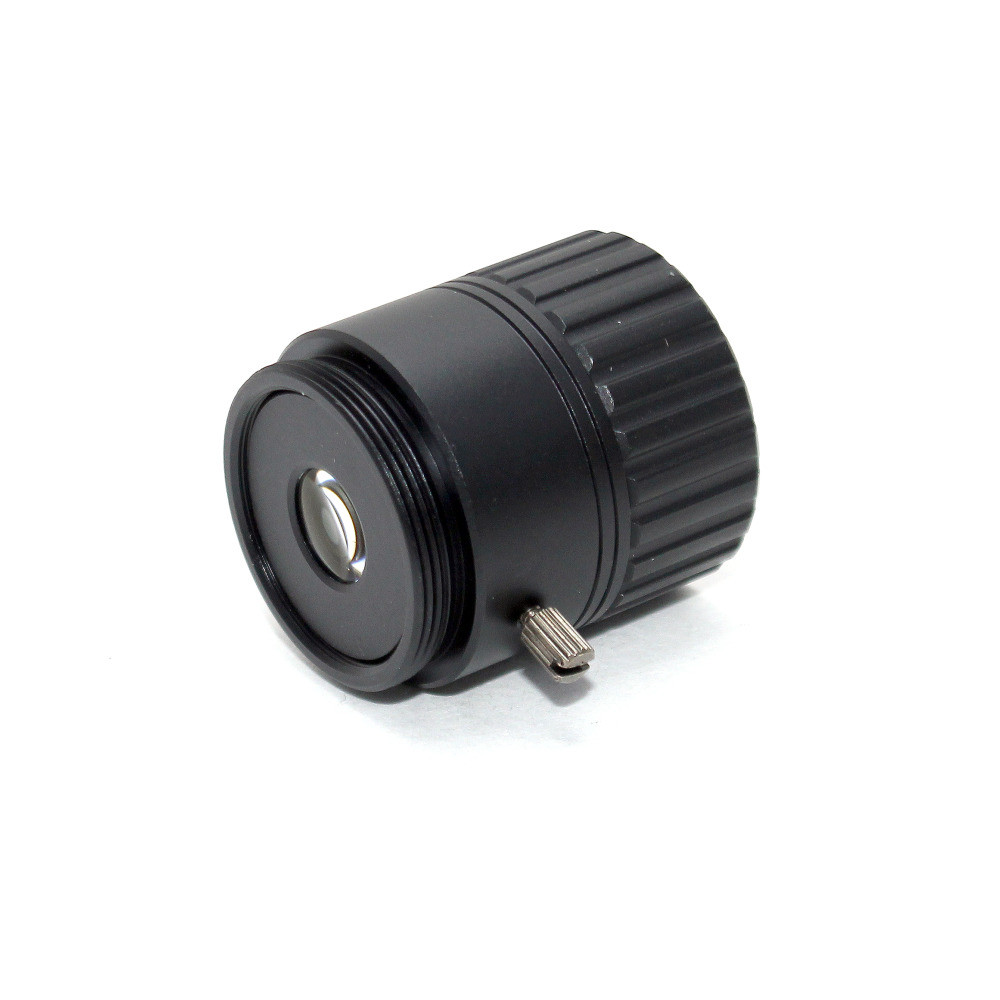

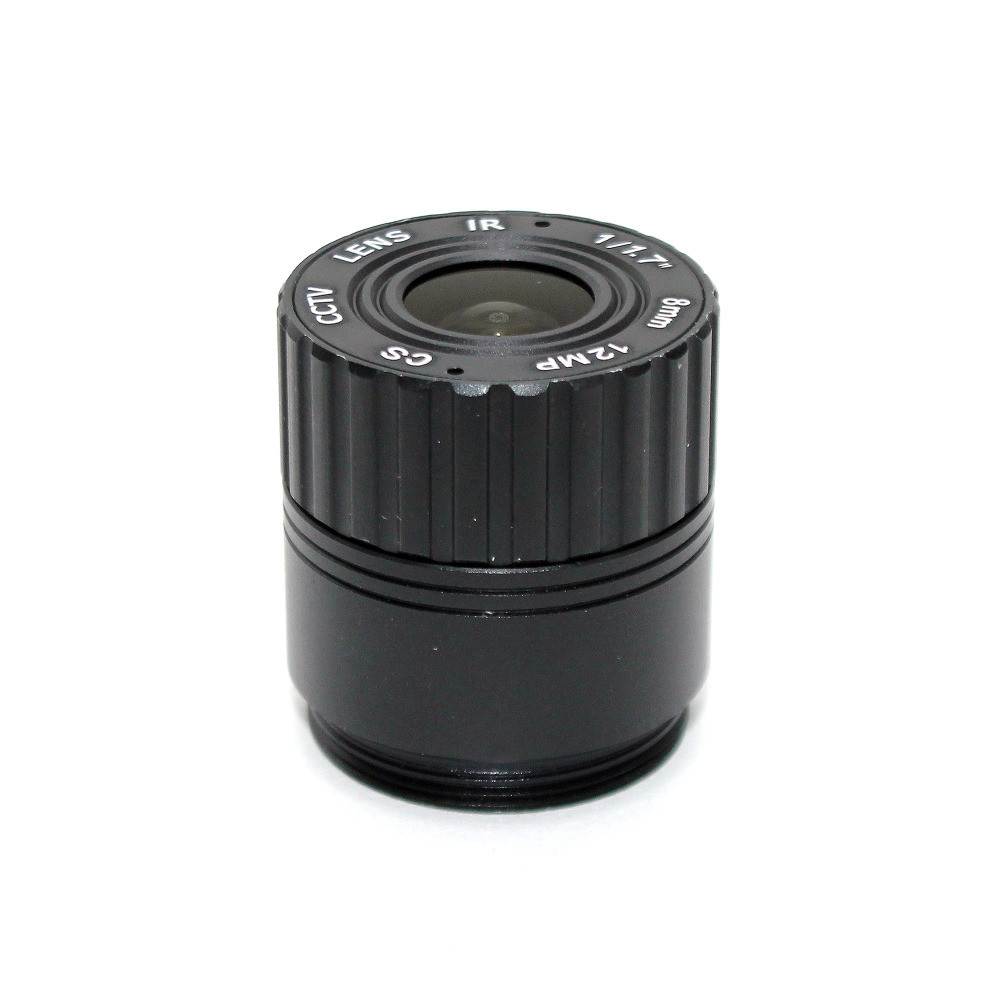

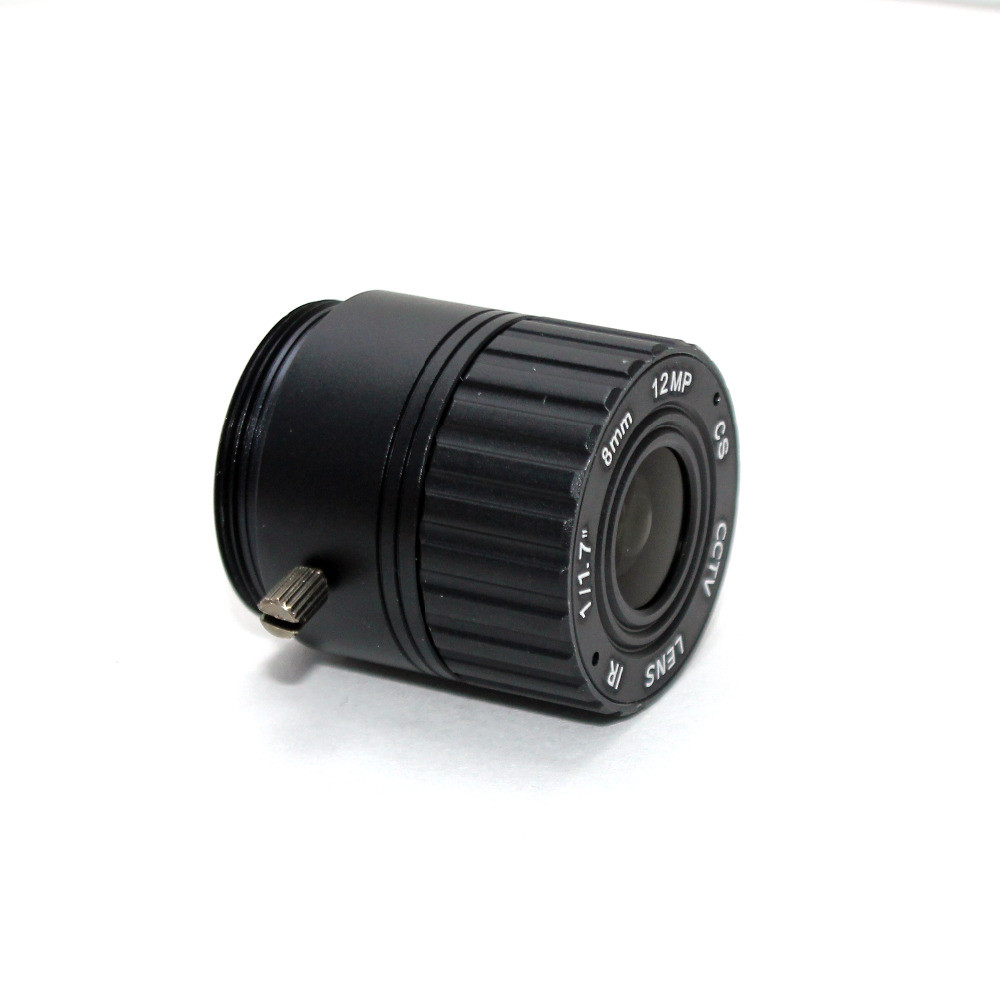

8mm 1/1.7" 4K CCTV Lens IR Correction F1.8 CS Mount Megapixels 12MP 72.64 degrees For UHD Security Camera:



Specification

Model MR-FCS0818IRST-12MP Mount CS
Focal Length 8mm Resolution 12.0MP
Sensor Size 1/1.7'' BFL 10.02mm
Aperture F1.8 Dimension Φ28×32.1mm
MOD 0.3m Weight 28g
Angle of View 72.64°×57.12°×42.44° CRA ≤10.8°
Iris Fixed

8mm 1/1.7" 4K CCTV Lens IR Correction F1.8 CS Mount Megapixels 12MP 72.64 degrees For UHD Security Camera

Features:
1. F1.8 big aperture high resolution lens, 8mm fixed CS mount lens, Camera lens with IR CUToptional.
2. 1/1.7" Format High quality cctv camera lens, optical lens ,CS Security Video Lens
3. 8mm focal length
72.64 Degree of DFOV security lens
4. 12.0MP Lens for HD Megapixel camera, Surveillance Lens, fixed iris security Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 12.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
