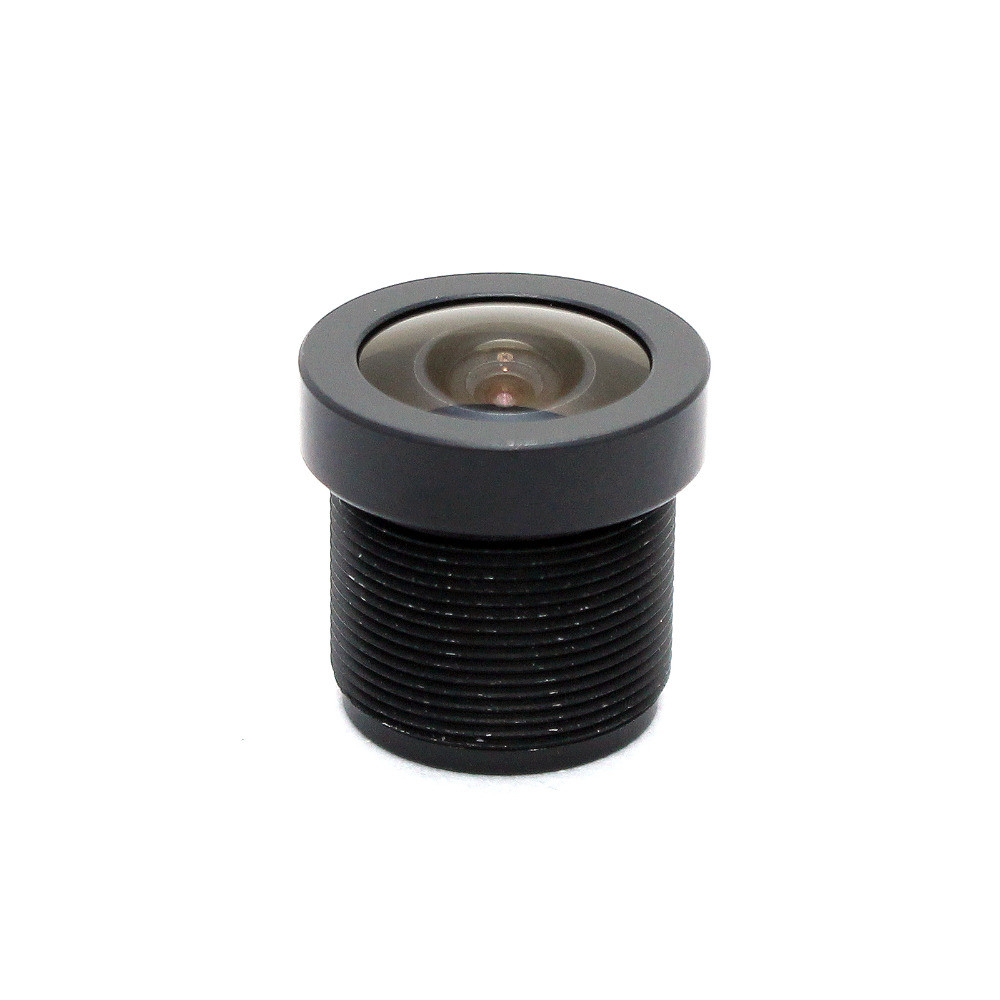

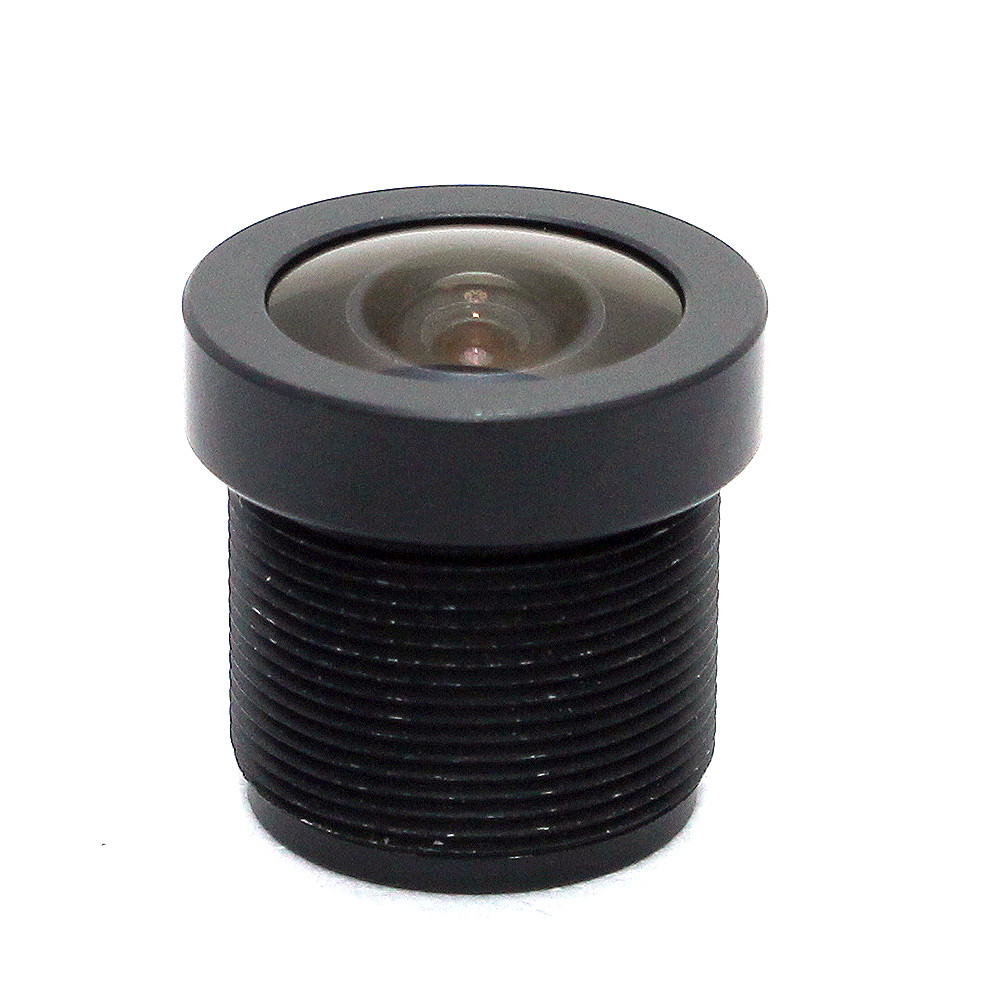

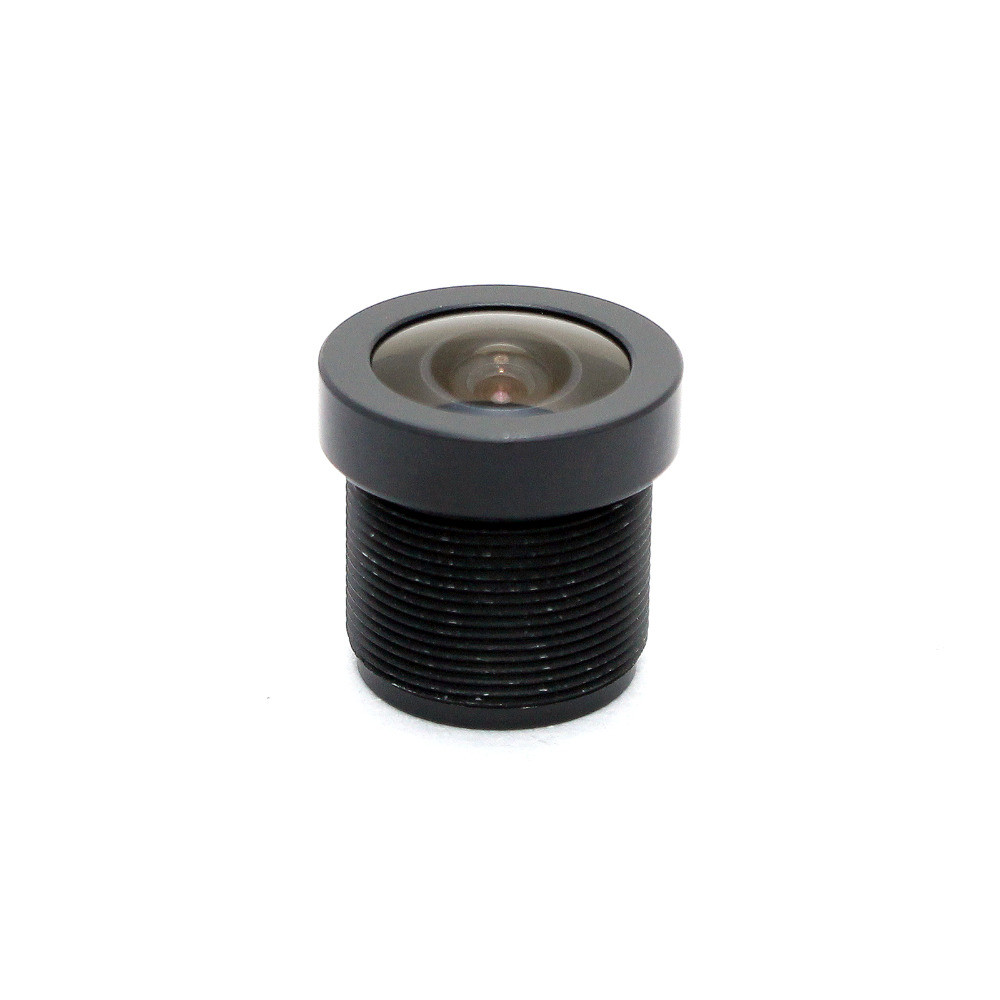

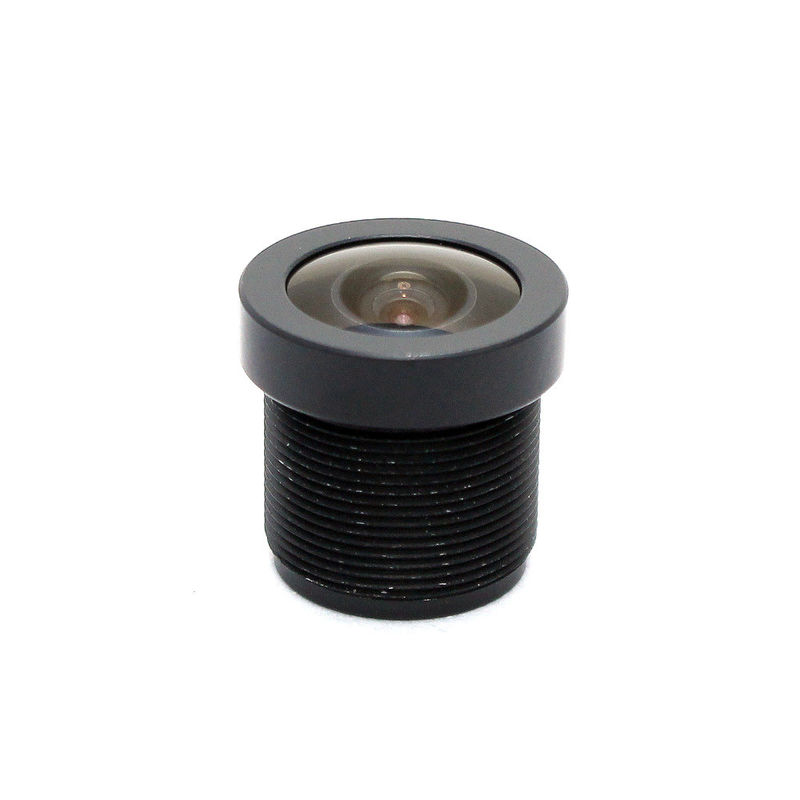

2.1mm Megapixel Security Camera Lens Wide Angle 160° MTV M12 Mount Infrared Night Vision

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-02120
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-02120 Mount:: M12*0.5
Focal Length:: 16mm Image Format:: 1/3″
Aperture:: F2.0 FOV: 160°
High Light:

ip camera lens

,

surveillance camera lenses

2.1mm Lens MegaPixel Wide-angle 160 Degree MTV M12 Mount Infrared Night Vision Lens For CCTV Security Camera



Specification
Model MR-02120 Mount M12*0.5
Focal Length 2.1mm Back Focal Length 5.5mm
Sensor Size 1/3'' Weight 5g
Aperture F2.0 Dimension Φ14*15.55mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 160° EFL 5.15mm
Application CCTV Cameras





Features:
1. 2.1mm m12 Camera lens, F2.0 mono-focal Lens, wide angle focal lens.
2. 1/3" Format High quality cctv camera lens, optical lens , Mini MTV Lens
3. 160 Degree of FOV security lens, wide angle short focus lens
4. IP Network Lens for IP camera, Surveillance Lens, security CCTV Lens
5. This high resolution cctv lens can be used for mega pixel camera,IP camera & High resolution camera.



2.1mm Lens MegaPixel Wide-angle 150 Degree MTV M12 Mount Infrared Night Vision Lens For CCTV Security Camera



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are 1.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
