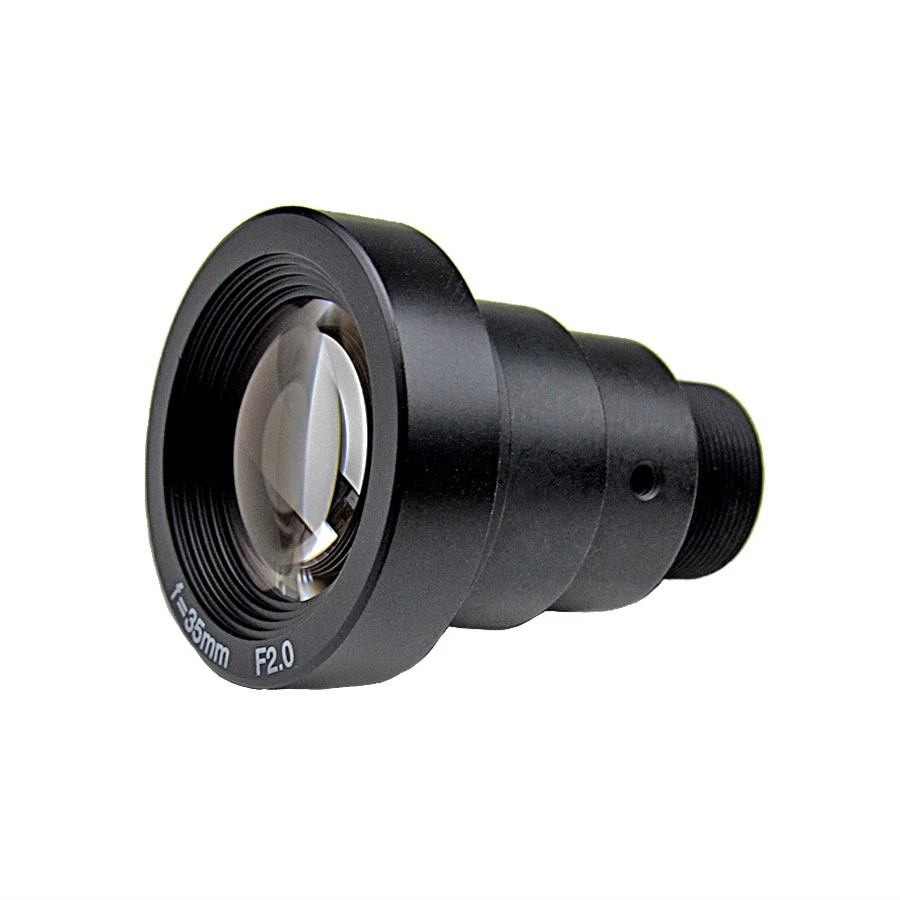

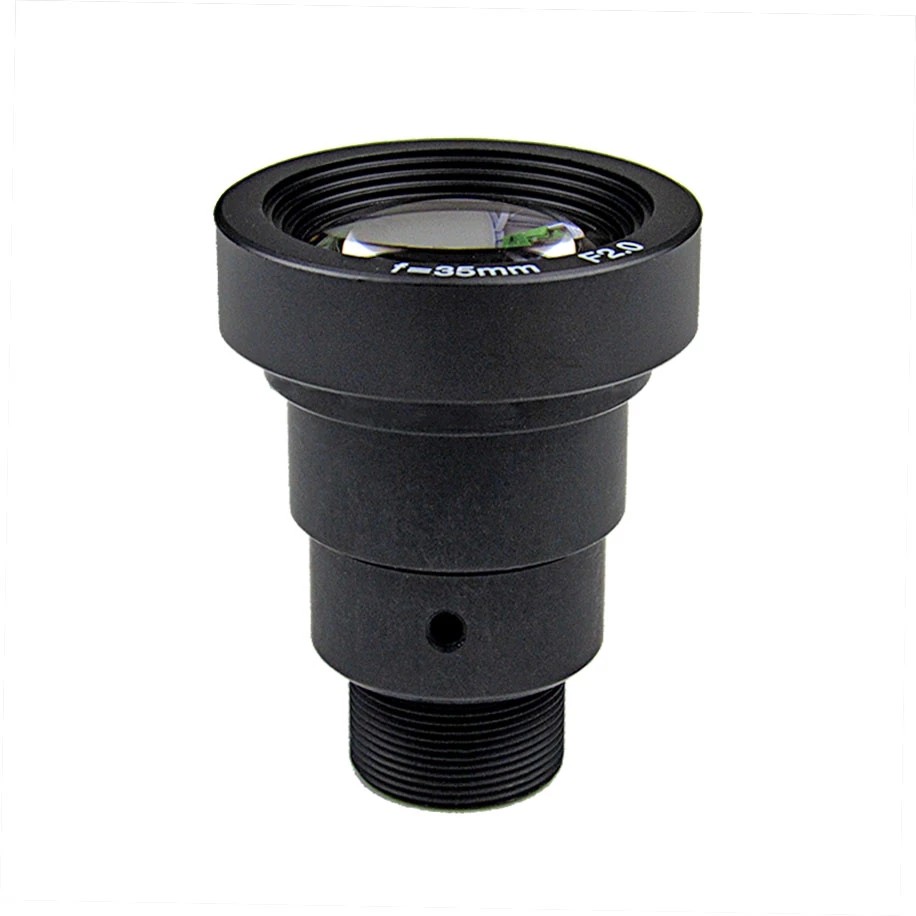

IR MTV Board Video Camera Lens 1.3MP 35mm M12 Mount F2.0 1/2" Image Format

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-C3520WXG12-MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-C3520WXG12-MP Mount:: M12*0.5
Focal Length:: 35mm Image Format:: 1/2″
Field Angle(1/3%22):: 13*9.8*7.2degree Aperture: F2.0
Resolution: 1.3MP BFL: 18.9mm
Package: 1*35mm M12 Lens, 1*M12 Extension Thread IR CUT: Not Included
High Light:

video camera lens

,

cctv wide angle lens

Starlight 1.3MP 35mm CCTV IR MTV Lens m12 Mount F2.0 For Security Video Cameras, 1/2" Image Format



Specification

Model MR-C3520WXG12-MP Mount M12*0.5

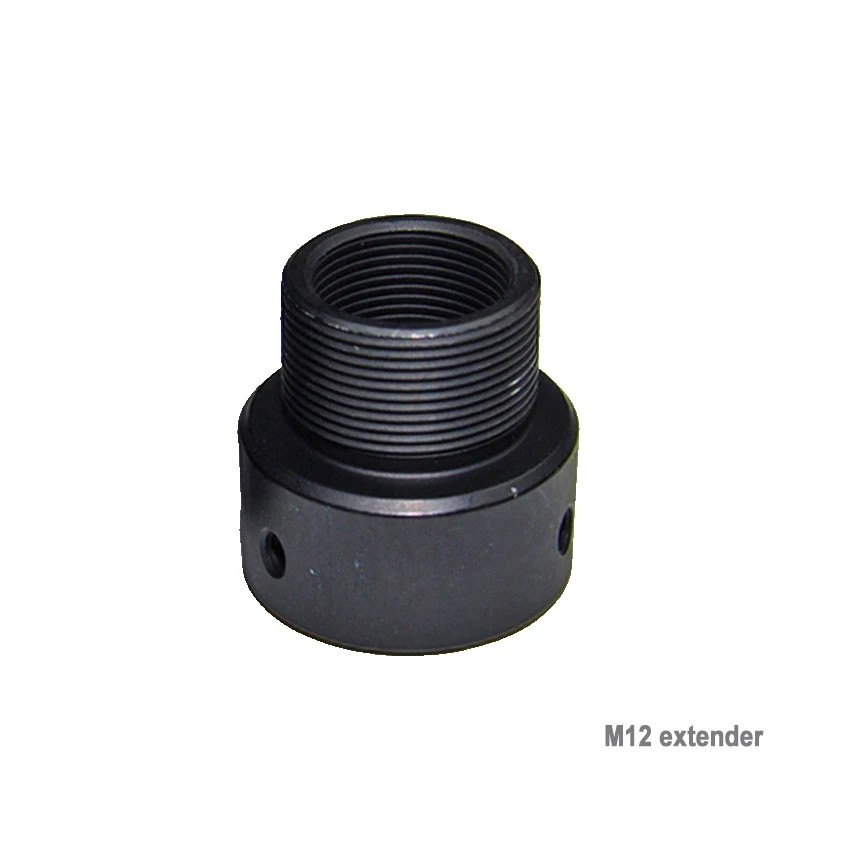

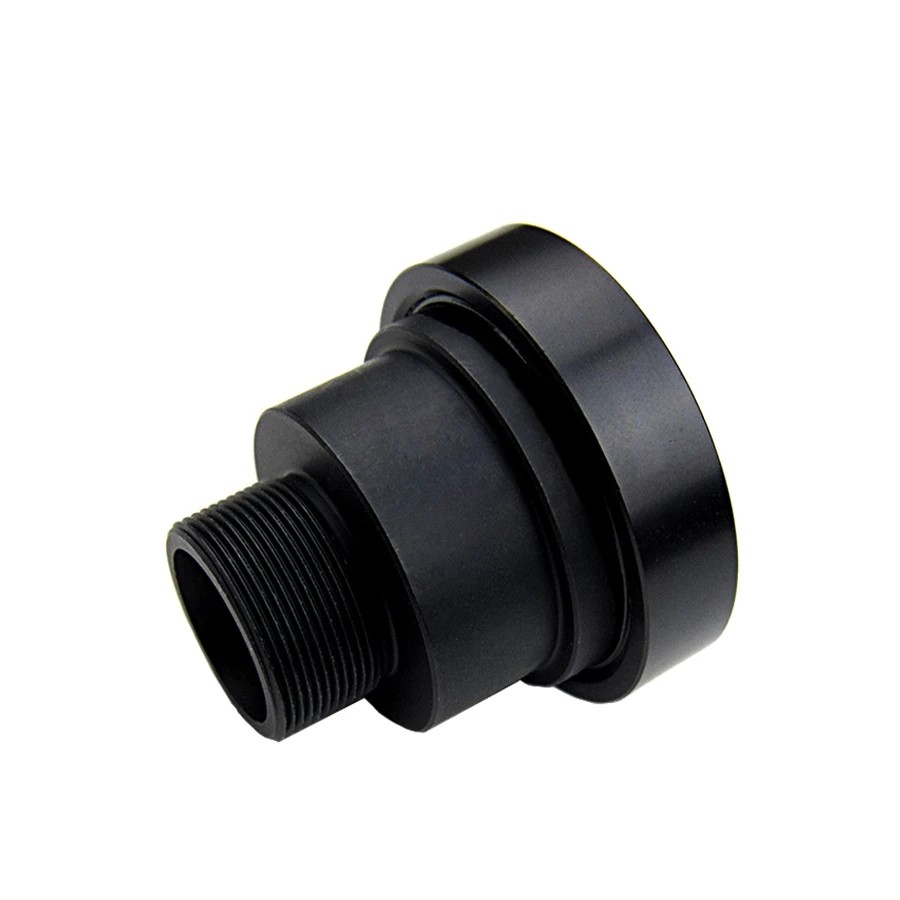

Focal Length 35mm M12 Extender Yes
Sensor Size 1/2" IR Filter No
Aperture F2.0 BFL 18.9mm
Megapixel 1.3MP MOD 0.2m
Angle of View

13°×9.8°×7.2°

Iris Fixed
Application Starlight Lens









Features:
1. F2.0 Starlight HD Camera lens, 35mm long focal length, Camera lens with M12 Extender.
2. 1/2" Format High quality cctv camera lens, optical lens ,M12 Mount Lens
3. 35mm focal length 13 Degree of DFOV security lens
4. Starlight Lens for 1.3mp Megapixel camera, Surveillance Lens, large aperture security Lens



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 1.3 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: Starlight Lens

Starlight 1.3MP 35mm CCTV IR MTV Lens m12 Mount F2.0 For Security Video Cameras, 1/2" Image Format
