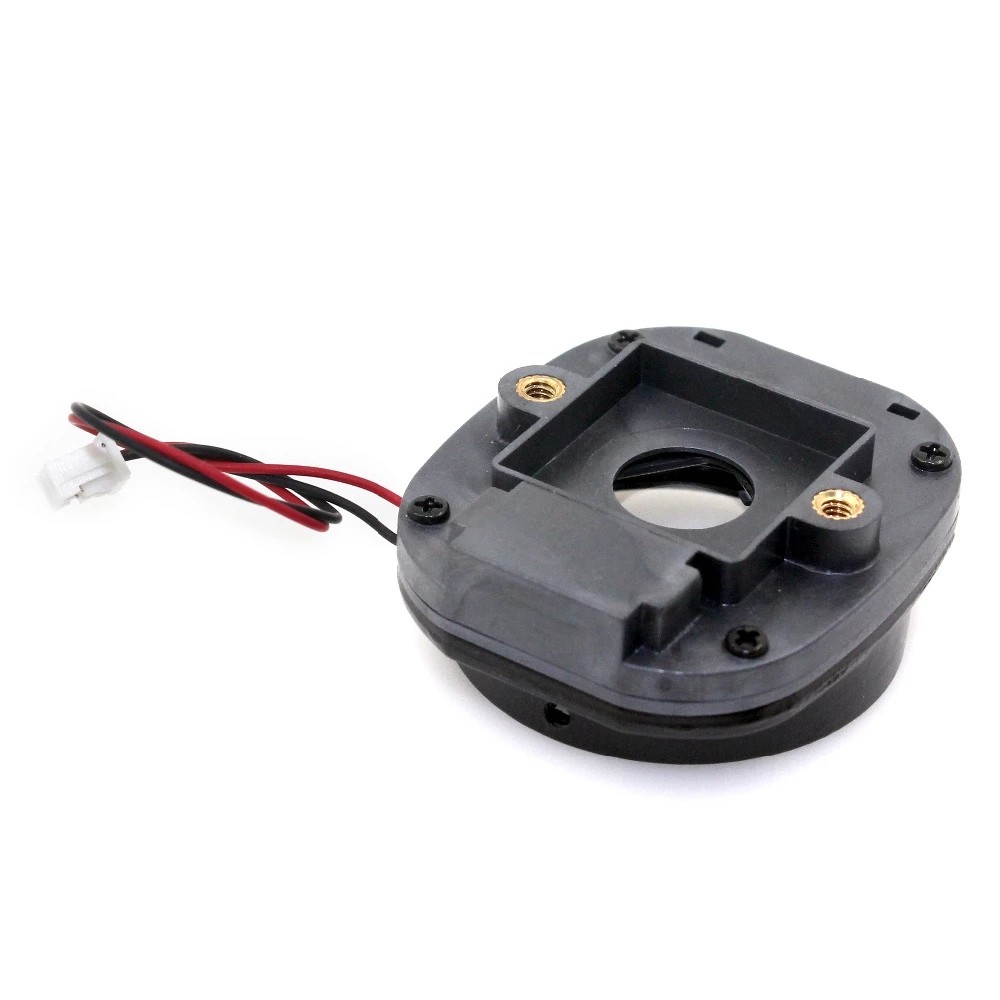

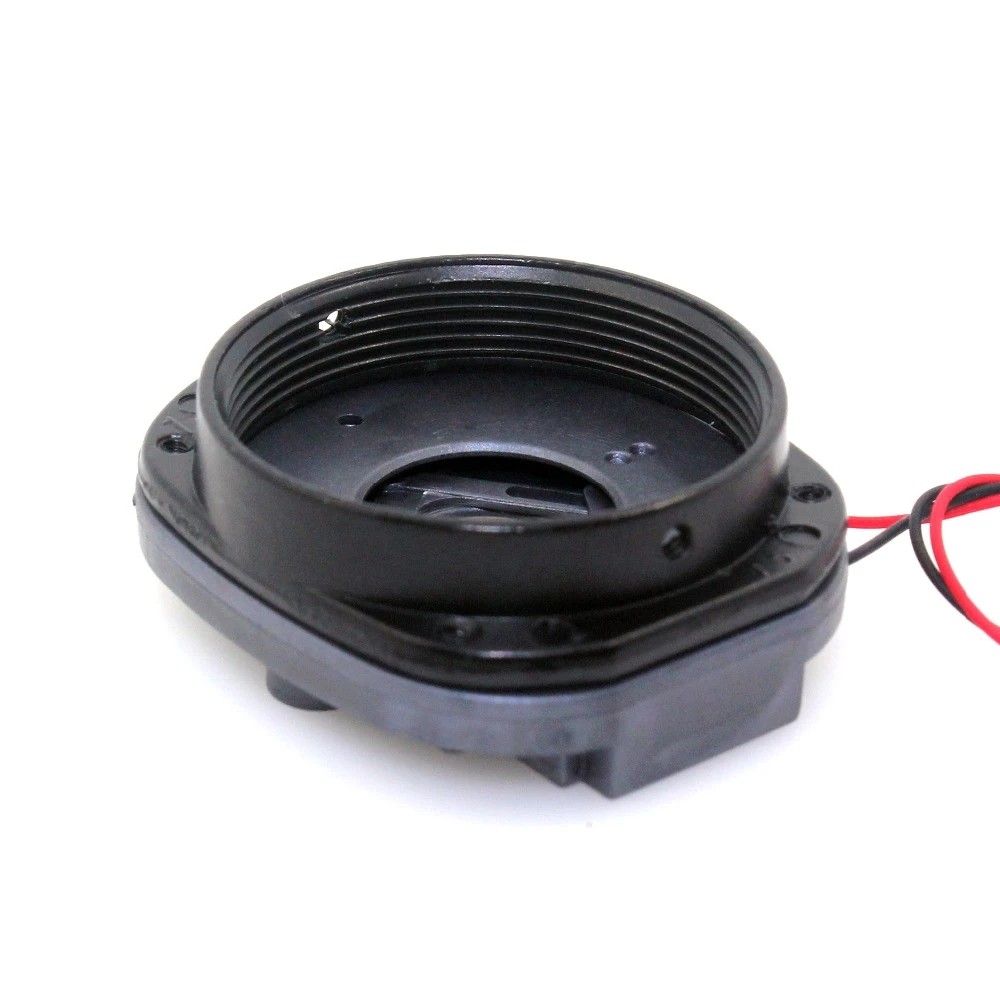

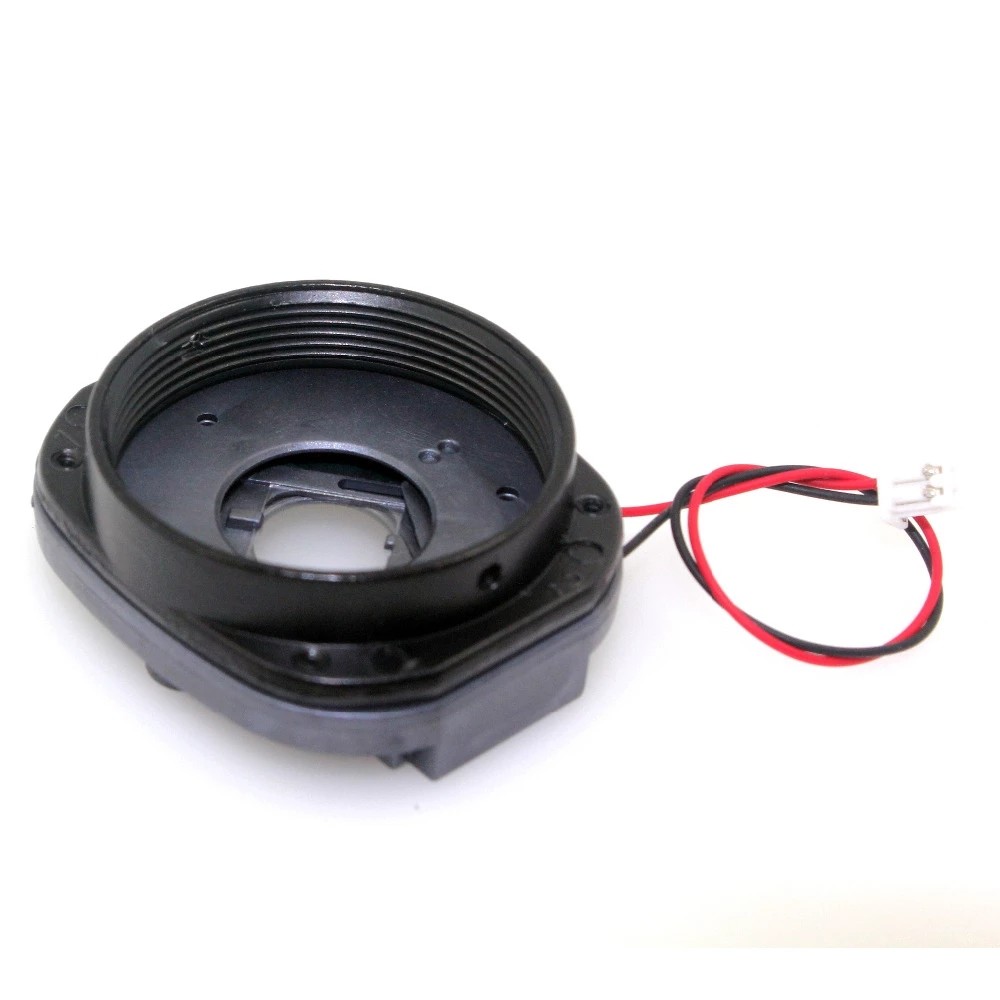

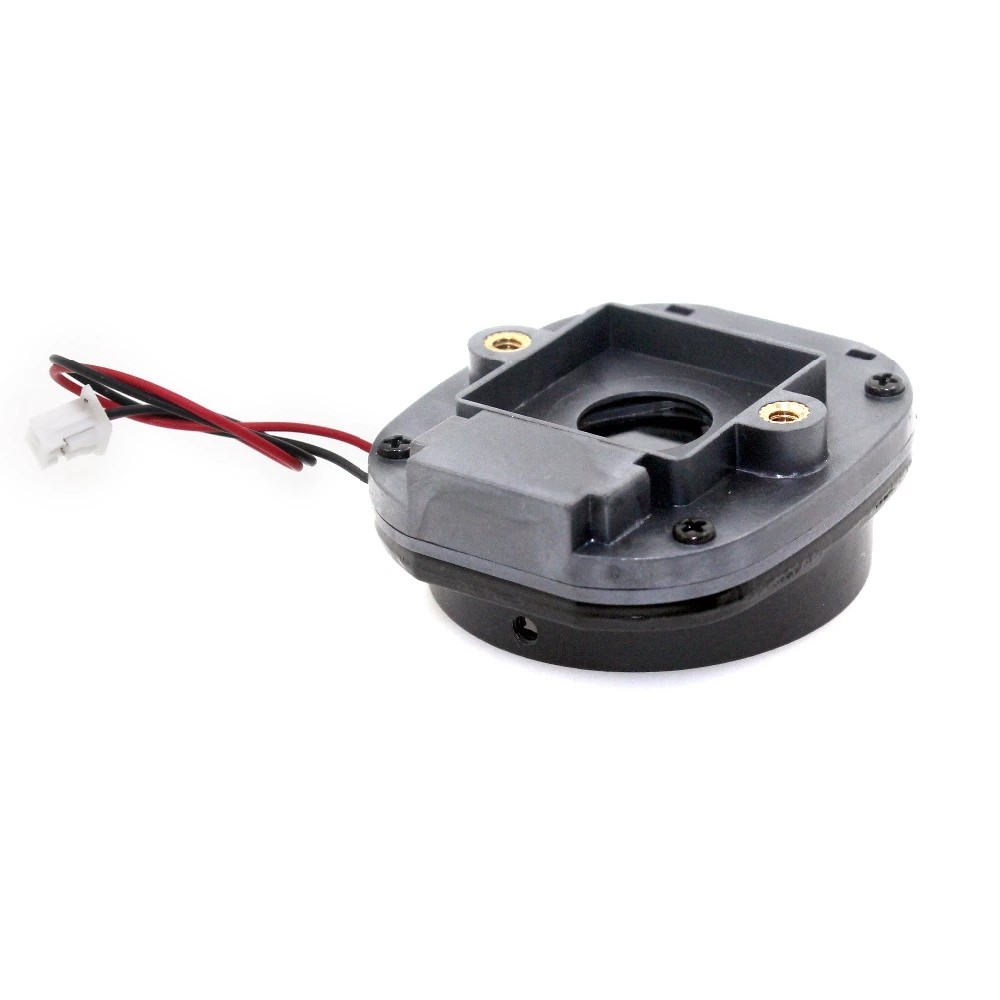

Metal Double IR CUT Filter Switcher HD 3.0MP For CCTV Camera Lens Mount

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-CM12IRWCT-3MP-PS
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-CM12IRWCS-3MP-PS Product Material: Lower Cover PC Plastic+Metal Lens Mount
Control Voltage: 4-12V Coil Resistace: 60±5Ω
Driving Time: <60ms Filter Thickness: 0.145mm, 0.21mm, 0.3mm Optional
Filter Coating: Filter Coating With IR Film And AR Film Switching Life: 100 Thousand Times
Adapter Lens: CS Mount Lens Fixed Hole Spacing: 20mm
Assembly Exterior: 32*28*13.2mm Hole Diameter: 8mm
Cable Length: Optional Driving Current: 66-200mA
High Light:

mechanical ir cut filter

,

removable ir cut filter

HD 3.0MP Metal IR CUT filter CS lens mount double filter switcher for Full HD CCTV Camera lens Mount



Performance parameters

This product is suitable for network cameras, millions of HD cameras, infrared cameras, bolts and other cameras, let it cut off
Or through, the name is: dual filter switcher
The main role and function:
Corrects daytime polarization problems and improves nighttime brightness
working principle:
IR-CUT Dual Filter Switcher consists of: One IR Cut Filter and One Fully Permeable Filter + Electromagnetic Structure




1. Product material: lower cover PC plastic + Metal lens mount
2. Coil impedance: 60±5Ω (at room temperature 25°C)
3. Drive voltage: Operating voltage: 4-12V
Drive pulse signal time: 60ms
4. Inductance: 430uH±5%
5. Actuation direction, posture: the red wire is connected to the positive voltage, the black wire is connected to the negative voltage, and the product is switched to the infrared cut filter
Light film (used during the day), on the contrary, the product is switched to the white film (night use) direction, posture: side, front, back (all-round test does not move, incomplete, interference can not)
6. Checker IR-CUT test board/set voltage: 4V/set drive pulse signal time: 100ms±10ms
7. Actuation mode Adopt DC voltage circuit to control magnetic rotary magnetic valve
8. Static energy retention Product retains power even when no power is applied
9. Normal temperature and humidity standard Temperature: +25°C±5°C, humidity 65%±20%
10. Magnetic induction 1000Gs ± 10%, temperature 120 °C ± 5 °C
11. Terminal White, 2Pin*1.25mm, Insertion Force 0.5Kg

Package: 1PCS IR CUT



IR CUT Function:
1. Fixed daytime color cast problems, enhancing the brightness at night.
IR-CUT filter switch automatically according to external light along with the strength of automatic switching,
making the image to achieve the best results. That is, during the day or night,
the dual filter can automatically switch filters, therefore, whether in the next day or night,
can get the best imaging results.
2. According to the instruction automatic switch infrared cut-off and the full spectrum glass,
day and night switch, automatic positioning,
in order to achieve infrared end filter work during the day time,
sunshine is vivid, restore the true color. Full spectrum glass work at night,
and increase low illumination, night vision is very clear.
3. Use on the camera board, to modify the problem of partial color, out of focus,
let video images do not lose focus, unbiased color and excellent resolution.
4. To filter the hard light to make the picture color soft, to accieve human eyes visual color.





HD 3.0MP Metal IR CUT filter CS lens mount double filter switcher for Full HD CCTV Camera lens Mount



HD IR-cut infrared cut CS lens Mount Double Filter for HD CCTV IP Camera, Metal and Plastic optional, 20mm hole spacing

                  With IR CUT                                     Without IR CUT

HD IR-cut infrared cut CS lens Mount Double Filter for HD CCTV IP Camera, Metal and Plastic optional, 20mm hole spacing

                      With IR CUT                                 Without IR CUT
