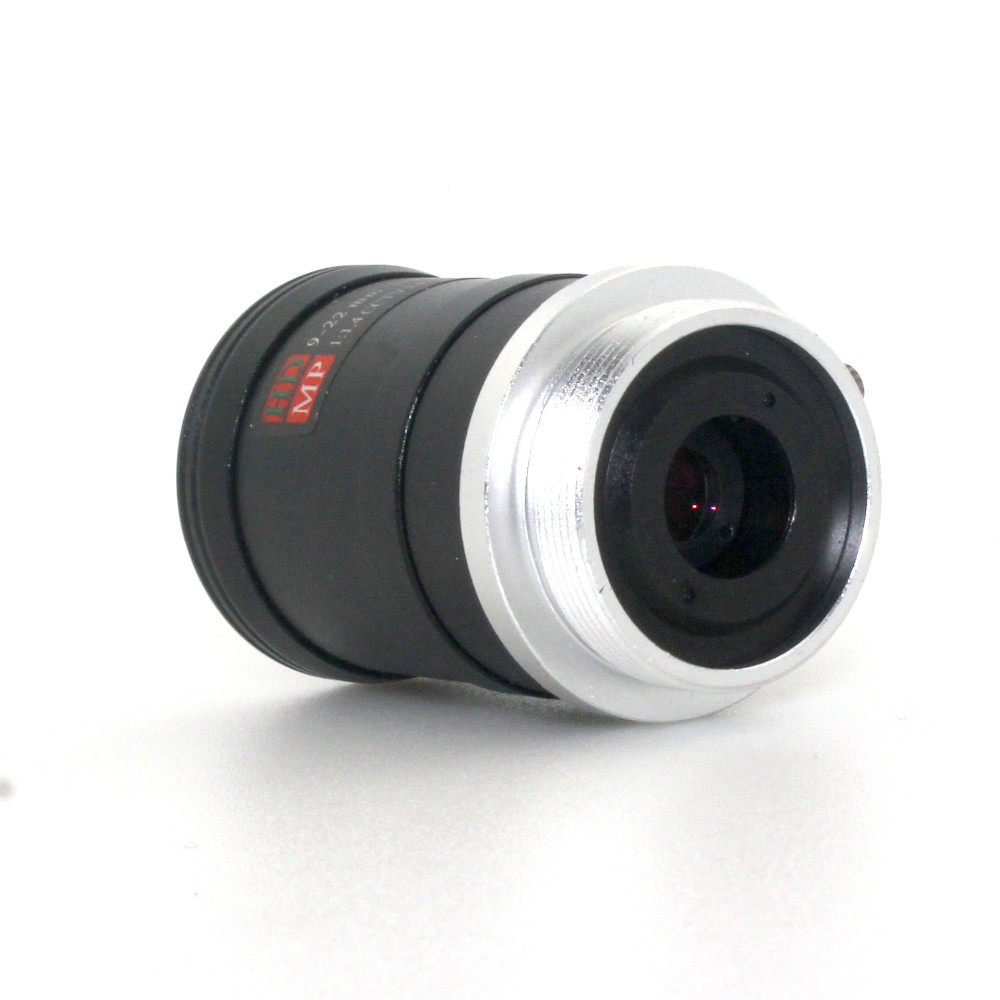

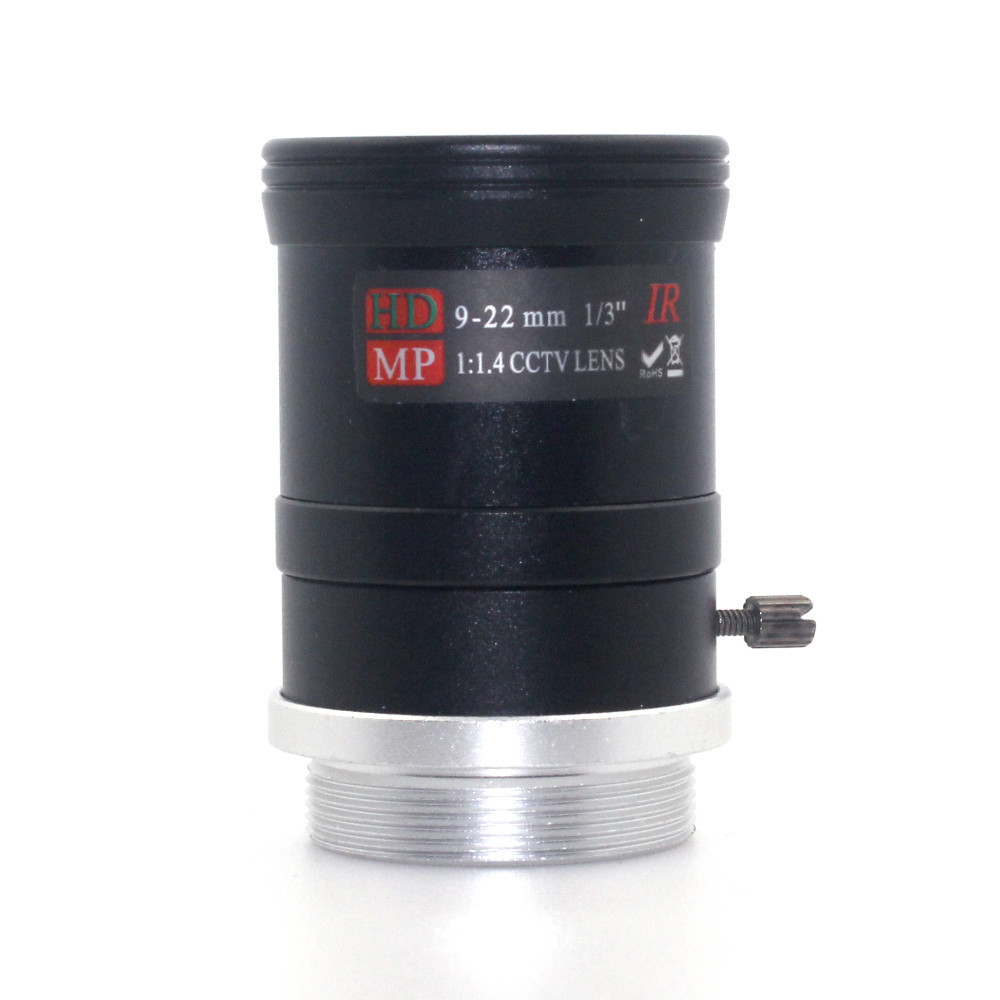

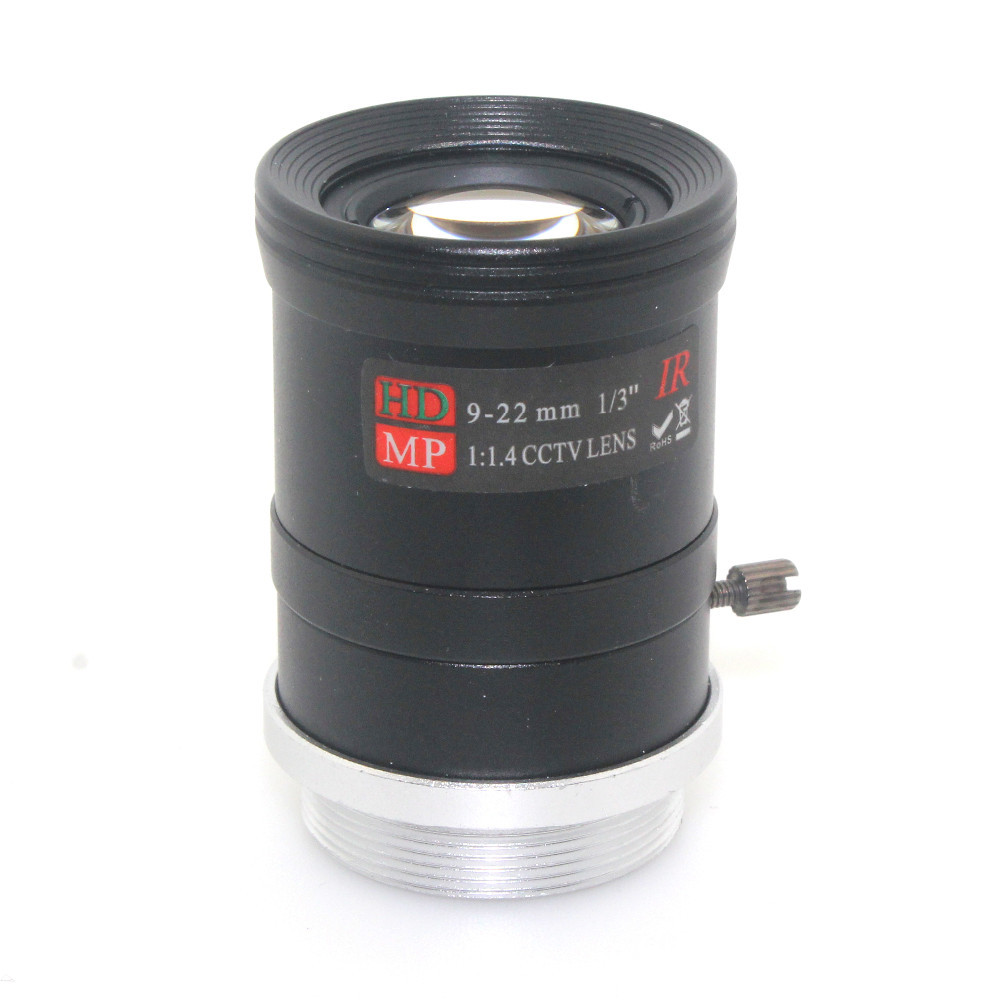

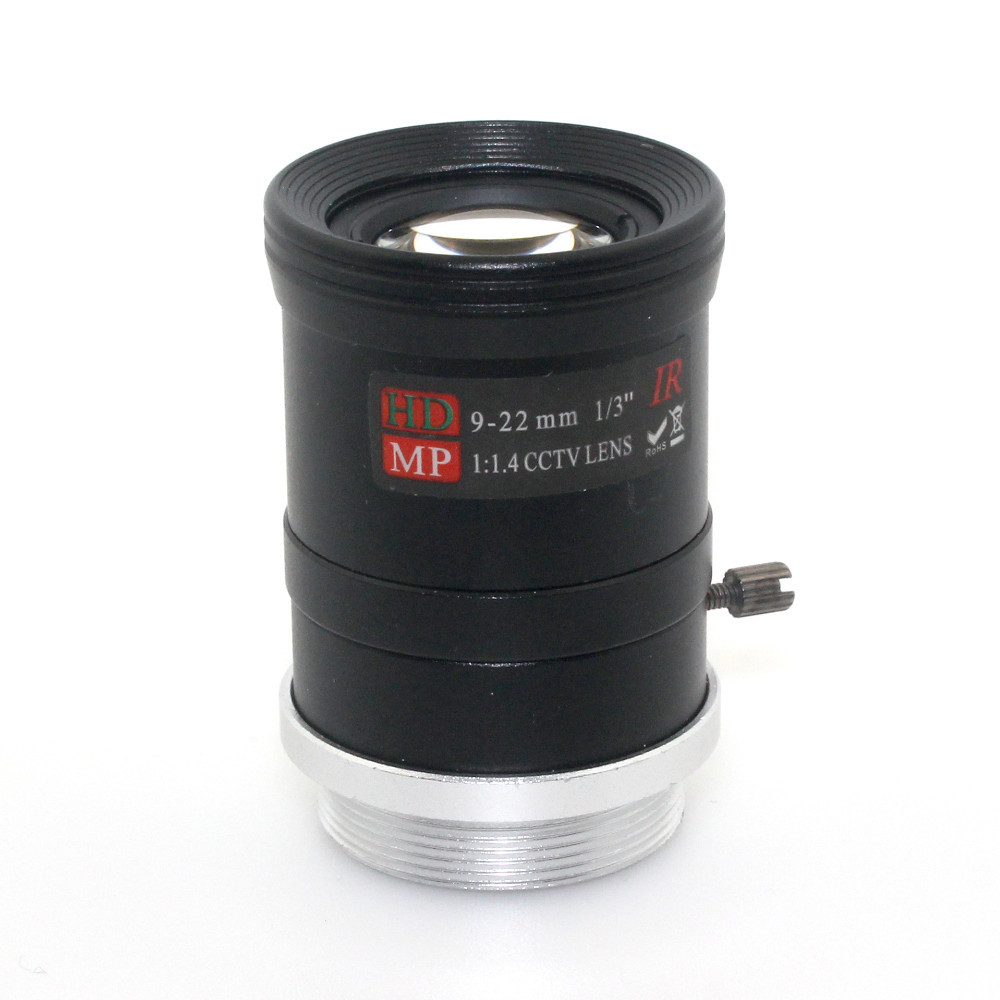

Flat Image Megapixel Varifocal Lens 9-22mm High Contrast Performance

Basic Information
Place of Origin: China
Brand Name: Octavia
Certification: CE, FCC, RoHS
Model Number: MR-09022V-2MP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The inside is packed by blister box usually, the outer is packed by carton
Delivery Time: The regular products will be ready within 3 to 7 days, special models will need about 30 days
Payment Terms: T/T, L/C, PAYPAL, WEST UNION
Supply Ability: 1000000pcs/month
Model:: MR-09022V-2MP Mount:: CS
Focal Length:: 9-22mm Image Format:: 1/3″
Aperture:: F1.4 Field Angle(1/3%22):: 103° ~ 25°
Iris: Manual Resolution: 2MP
High Light:

infrared zoom lens

,

digital varifocal lenses

MP HD 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera



Specification

Model MR-09022V-2MP Mount CS
Focal Length 9-22mm Resolution 2MP
Sensor Size 1/3" Zoom Manual
Aperture F1.4 Dimension Φ36*70mm
MOD 0.3m Iris Manual
Angle of View 103° ~ 25° BFL 6.78mm
Application Vari-focus Lens for HD Camera



Features:
1. Vari-focal lens for HD Camera, 9-22mm F1.4 CCTV Lens, 2MP Manual Iris CS mount lens.
2. 1/3" Format High quality cctv camera lens, optical lens , cs mount vari-focal Lens
3. .9-22mm focal length, field of view 103°~25° Degree security lens
4. 2.0 Megapixel Lens for CCTV camera, Surveillance Lens, HD Security Lens



Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are 2.0 Megapixel, IR Cut and Lens Holder are available as per request.



Our Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.



Tag: Megapixel Vari-focal Lens



MP HD 9-22mm 1/3" Varifocal Manual Iris IR lens CS for Surveillance CCD CCTV Camera
